台产晶技晶振,AB-16.000MALE-T晶振,车载香薰系统晶振

频率：16MHZ

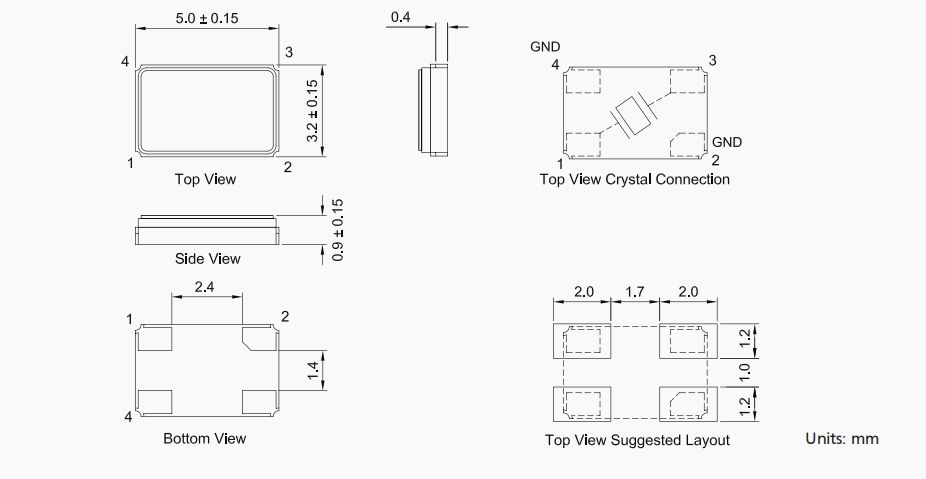

尺寸：5032mm

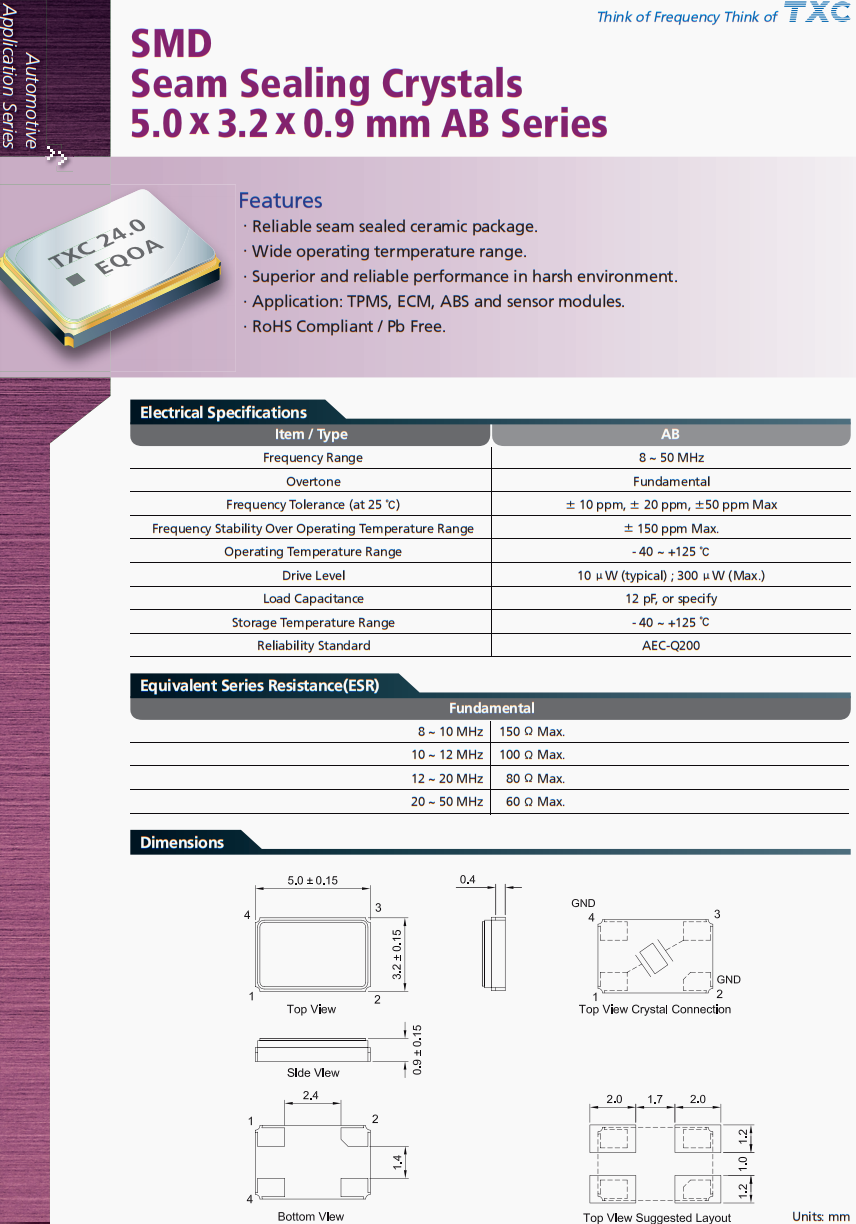

台产晶技晶振,AB-16.000MALE-T晶振,车载香薰系统晶振，AB系列SMD，缝封晶体，5.0* 3.2* 0.9 mm ，特点，可靠的缝封陶瓷封装。工作温度范围宽。恶劣环境下性能优越可靠。应用范围:TPMS, ECM, ABS，传感器模块。符合rohs标准/不含铅台湾TXC晶振公司，晶技晶振，无源晶振，5032晶振，AB-16.000MALE-T晶振，汽车晶振，汽车电动天窗控制系统晶振，台湾晶振，贴片晶振，四脚晶振，石英晶振，高品质晶振，车载多媒体晶振，行车记录仪晶振，低损耗晶振，耐高温晶振，耐冲击晶振。

订购热线：0755-27837162

台产晶技晶振,AB-16.000MALE-T晶振,车载香薰系统晶振，AB系列SMD，缝封晶体，5.0* 3.2* 0.9 mm ，特点，可靠的缝封陶瓷封装。工作温度范围宽。恶劣环境下性能优越可靠。应用范围:TPMS, ECM, ABS，传感器模块。符合rohs标准/不含铅台湾TXC晶振公司，晶技晶振，无源晶振，5032晶振，AB-16.000MALE-T晶振，汽车晶振，汽车电动天窗控制系统晶振，台湾晶振，贴片晶振，四脚晶振，石英晶振，高品质晶振，车载多媒体晶振，行车记录仪晶振，低损耗晶振，耐高温晶振，耐冲击晶振。

台产晶技晶振,AB-16.000MALE-T晶振,车载香薰系统晶振

型号	AB
频率范围	8 ~ 50 MHz
工作模式	Fundamental
频率容差	± 10 ppm, ± 20 ppm, ±50 ppm Max
温度范围内的频率稳定度	± 150 ppm Max.
工作温度	- 40 ~ +125 ℃
驱动电平	10 μW (typical) ; 300 μW (Max.)
负载电容	12 pF, or specify
储存温度范围	- 40 ~ +125 ℃
可靠性标准	AEC-Q200

台产晶技晶振,AB-16.000MALE-T晶振,车载香薰系统晶振

TXC原厂编码	生产商品牌	Series	频率	频率稳定度	频率容差	负载电容	工作温度
AB-16.000MALE-T	TXC晶振	AB	16MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-25.000MAGE-T	TXC晶振	AB	25MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-12.000MALE-T	TXC晶振	AB	12MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-24.000MAGE-T	TXC晶振	AB	24MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-16.000MAGE-T	TXC晶振	AB	16MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-13.225625MAGE-T	TXC晶振	AB	13.225625MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-8.000MAGK-T	TXC晶振	AB	8MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
AB-20.000MAHJ-T	TXC晶振	AB	20MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
AB-13.560MENE-T	TXC晶振	AB	13.56MHz	±50ppm	±10ppm	12pF	-40°C ~ 125°C
AB-24.576MAGQ-T	TXC晶振	AB	24.576MHz	±50ppm	±30ppm	10pF	-40°C ~ 85°C
AB-19.680MALE-T	TXC晶振	AB	19.68MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-26.000MAGE-T	TXC晶振	AB	26MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-37.500MAGE-T	TXC晶振	AB	37.5MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-13.560MAGE-T	TXC晶振	AB	13.56MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-15.360MAGE-T	TXC晶振	AB	15.36MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-18.000MAGH-T	TXC晶振	AB	18MHz	±50ppm	±30ppm	15pF	-40°C ~ 85°C
AB-18.432MAGE-T	TXC晶振	AB	18.432MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-20.000MAGE-T	TXC晶振	AB	20MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-27.000MAGE-T	TXC晶振	AB	27MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-11.0592MAGQ-T	TXC晶振	AB	11.0592MHz	±50ppm	±30ppm	10pF	-40°C ~ 85°C
AB-13.560MALE-T	TXC晶振	AB	13.56MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-10.000MAGE-T	TXC晶振	AB	10MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-12.000MAGE-T	TXC晶振	AB	12MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-12.000MAME-T	TXC晶振	AB	12MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-13.125MAME-T	TXC晶振	AB	13.125MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-13.225625MAHE-T	TXC晶振	AB	13.225625MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-13.528750MAHQ-T	TXC晶振	AB	13.52875MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AB-13.560MAHE-T	TXC晶振	AB	13.56MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-13.560MANE-T	TXC晶振	AB	13.56MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
AB-13.560MANH-T	TXC晶振	AB	13.56MHz	±50ppm	±30ppm	15pF	-40°C ~ 125°C
AB-13.580MANE-T	TXC晶振	AB	13.58MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
AB-16.000MAME-T	TXC晶振	AB	16MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-16.000MAPJ-T	TXC晶振	AB	16MHz	±50ppm	±30ppm	18pF	-40°C ~ 105°C
AB-16.000MENQ-T	TXC晶振	AB	16MHz	±50ppm	±10ppm	10pF	-40°C ~ 125°C
AB-16.000MFNE-T	TXC晶振	AB	16MHz	±50ppm	±15ppm	12pF	-40°C ~ 125°C
AB-16.0132MEMQ-T	TXC晶振	AB	16.0132MHz	±100ppm	±10ppm	10pF	-40°C ~ 125°C
AB-18.000MAHH-T	TXC晶振	AB	18MHz	±30ppm	±30ppm	15pF	-40°C ~ 85°C
AB-18.080MEME-T	TXC晶振	AB	18.08MHz	±100ppm	±10ppm	12pF	-40°C ~ 125°C
AB-19.707894MENV-T	TXC晶振	AB	19.707894MHz	±50ppm	±10ppm	8pF	-40°C ~ 125°C
AB-20.000MAHE-T	TXC晶振	AB	20MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-20.000MALE-T	TXC晶振	AB	20MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-22.600MEMQ-T	TXC晶振	AB	22.66MHz	±100ppm	±10ppm	10pF	-40°C ~ 125°C
AB-24.000MAHE-T	TXC晶振	AB	24MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-24.19066MENE-T	TXC晶振	AB	24.19066MHz	±50ppm	±10ppm	12pF	-40°C ~ 125°C
AB-24.576MEHQ-T	TXC晶振	AB	24.576MHz	±30ppm	±10ppm	10pF	-40°C ~ 85°C
AB-25.000MDHI-T	TXC晶振	AB	25MHz	±30ppm	±20ppm	16pF	-40°C ~ 85°C
AB-25.000MDPE-T	TXC晶振	AB	25MHz	±50ppm	±20ppm	12pF	-40°C ~ 105°C
AB-14.31818MAHQ-T	TXC晶振	AB	14.318MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AB-14.31818MAME-T	TXC晶振	AB	14.318MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-16.000MANE-T	TXC晶振	AB	16MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
AB-19.200MAGE-T	TXC晶振	AB	19.2MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-19.68750MEME-T	TXC晶振	AB	19.687MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
AB-24.000MAPE-T	TXC晶振	AB	24MHz	±50ppm	±30ppm	12pF	-40°C ~ 105°C
AB-8.000MANV-T	TXC晶振	AB	8MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
AB-8.192MAHJ-T	TXC晶振	AB	8.192MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
AB-14.31818MALE-T	TXC晶振	AB	14.31818MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-10.000MALE-T	TXC晶振	AB	10MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-14.318180MAHK-T	TXC晶振	AB	14.31818MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AB-14.318180MAME-T	TXC晶振	AB	14.31818MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-19.2000MAGE-T	TXC晶振	AB	19.2MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-19.687500MEME-T	TXC晶振	AB	19.6875MHz	±100ppm	±10ppm	12pF	-40°C ~ 125°C
AB-20.000MAMK-T	TXC晶振	AB	20MHz	±100ppm	±30ppm	20pF	-40°C ~ 125°C
AB-24.576MEIQ-T	TXC晶振	AB	24.576MHz	±20ppm	±10ppm	10pF	-40°C ~ 85°C
AB-26.000MEIE-T	TXC晶振	AB	26MHz	±20ppm	±10ppm	12pF	-40°C ~ 85°C
AB-27.000MAHE-T	TXC晶振	AB	27MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-28.63636MAMJ-T	TXC晶振	AB	28.63636MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
AB-37.500MEHD-T	TXC晶振	AB	37.5MHz	±30ppm	±10ppm	11pF	-40°C ~ 85°C
AB-37.500MEHE-T	TXC晶振	AB	37.5MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
AB-40.000MDHE-T	TXC晶振	AB	40MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
