TXC汽车晶振,行车记录仪晶振,AA-8.000MALV-T晶振
频率：8MHZ

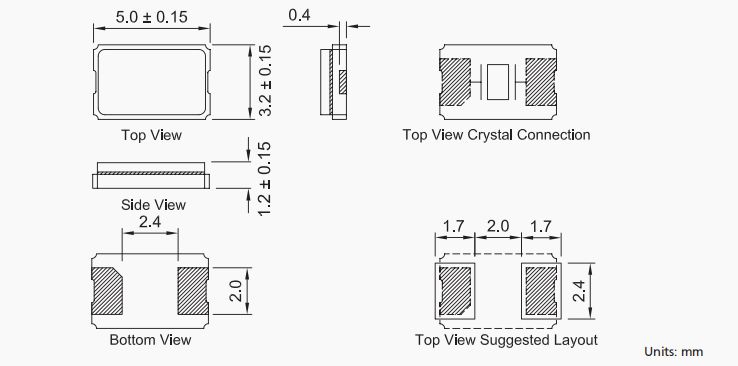

尺寸：5032mm

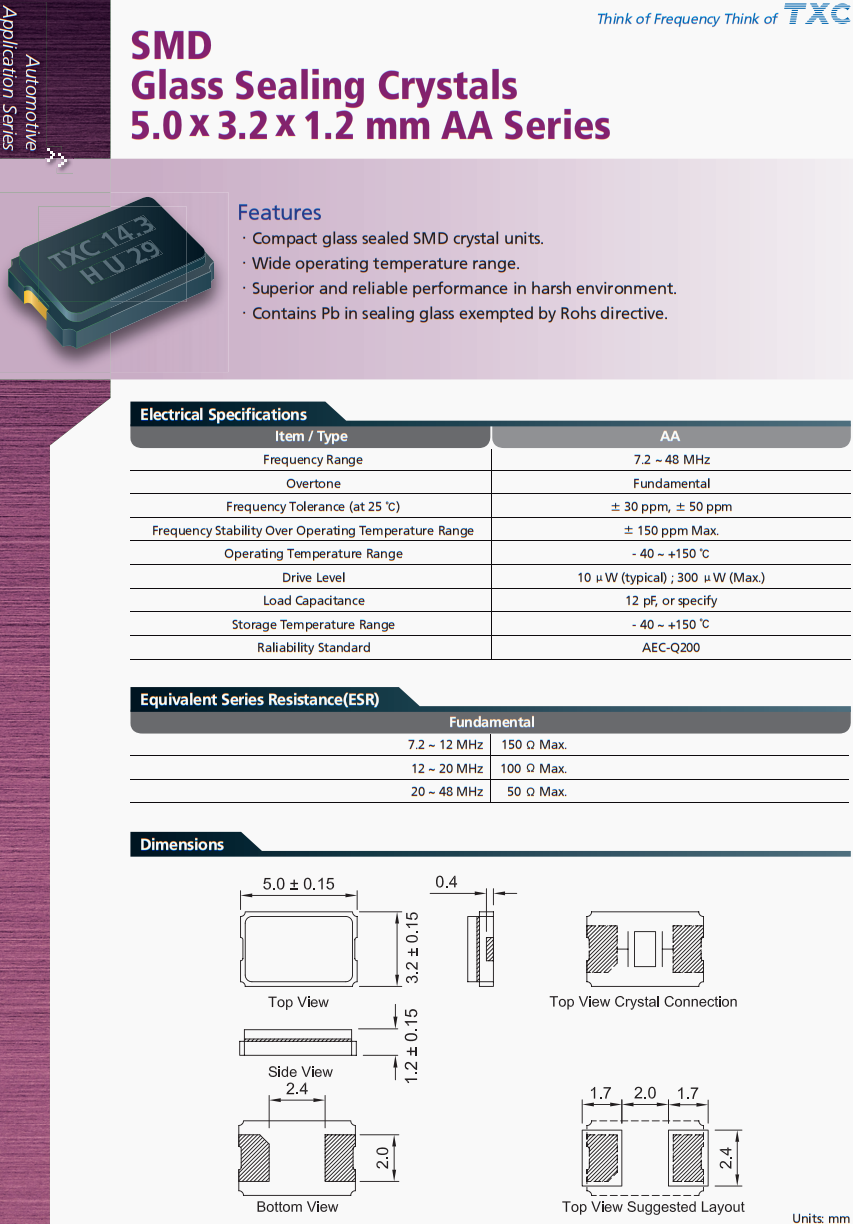

TXC汽车晶振,行车记录仪晶振,AA-8.000MALV-T晶振，台湾TXC晶振公司，晶技晶振，无源晶振，5032晶振，AA-8.000MALV-T晶振，汽车晶振，汽车电动天窗控制系统晶振，台湾晶振，贴片晶振，二脚晶振，石英晶振，高品质晶振，车载多媒体晶振，行车记录仪晶振，低损耗晶振，耐高温晶振，耐冲击晶振AA系列SMD，玻璃密封晶体，5.0 x 3.2 x 1.2 mm ，功能。紧凑的玻璃密封SMD晶体单元。工作温度范围广。在恶劣环境下性能优越可靠。不受Rohs指令限制的密封玻璃含铅。
订购热线：0755-27837162
TXC汽车晶振,行车记录仪晶振,AA-8.000MALV-T晶振，台湾TXC晶振公司，晶技晶振，有无源晶振，5032晶振，AA-8.000MALV-T晶振，汽车晶振，汽车电动天窗控制系统晶振，台湾晶振，贴片晶振，二脚晶振，陶瓷晶振，高品质晶振，车载多媒体晶振，行车记录仪晶振，低损耗晶振，耐高温晶振，耐冲击晶振AA系列SMD，玻璃密封晶体，5.0 x 3.2 x 1.2 mm ，功能。紧凑的玻璃密封SMD晶体单元。工作温度范围广。在恶劣环境下性能优越可靠。不受Rohs指令限制的密封玻璃含铅。
TXC汽车晶振,行车记录仪晶振,AA-8.000MALV-T晶振
型号
AA
频率范围
7.2 ~ 48 MHz
工作模式
Fundamental
频率容差
± 30 ppm, ± 50 ppm
温度范围内的频率稳定度
± 150 ppm Max.
工作温度
- 40 ~ +150 ℃
驱动电平
10 μW (typical) ; 300 μW (Max.)
负载电容
12 pF, or specify
储存温度范围
- 40 ~ +150 ℃
可靠性标准
AEC-Q200
TXC汽车晶振,行车记录仪晶振,AA-8.000MALV-T晶振
| TXC原厂编码 | 生产商品牌 | Series | 频率 | 频率稳定度 | 频率容差 | 负载电容 | Operating Temperature |
| AA-8.000MALV-T | TXC晶振 | AA | 8MHz | ±150ppm | ±30ppm | 8pF | -40°C ~ 125°C |
| AA-8.192MAGE-T | TXC晶振 | AA | 8.192MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-25.000MALE-T | TXC晶振 | AA | 25MHz | ±150ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-16.000MALE-T | TXC晶振 | AA | 16MHz | ±150ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-12.000MAGE-T | TXC晶振 | AA | 12MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-10.000MAGY-T | TXC晶振 | AA | 10MHz | ±50ppm | ±30ppm | 7pF | -40°C ~ 85°C |
| AA-28.63636MAGK-T | TXC晶振 | AA | 28.63636MHz | ±50ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-14.31818MAGD-T | TXC晶振 | AA | 14.31818MHz | ±50ppm | ±30ppm | 11pF | -40°C ~ 85°C |
| AA-20.000MAGE-T | TXC晶振 | AA | 20MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-27.000MAGK-T | TXC晶振 | AA | 27MHz | ±50ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-37.050MAGV-T | TXC晶振 | AA | 37.05MHz | ±50ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-12.288MAGV-T | TXC晶振 | AA | 12.288MHz | ±50ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-10.000MAGE-T | TXC晶振 | AA | 10MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-10.000MAME-T | TXC晶振 | AA | 10MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-12.000MAHE-T | TXC晶振 | AA | 12MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-12.000MAPQ-T | TXC晶振 | AA | 12MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
| AA-13.4916MAHQ-T | TXC晶振 | AA | 13.4916MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| AA-14.31818MAGK-T | TXC晶振 | AA | 14.31818MHz | ±50ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-16.000MAME-T | TXC晶振 | AA | 16MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-16.000MBNV-T | TXC晶振 | AA | 16MHz | ±50ppm | ±50ppm | 8pF | -40°C ~ 125°C |
| AA-20.000MAHE-T | TXC晶振 | AA | 20MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-20.000MALE-T | TXC晶振 | AA | 20MHz | ±150ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-20.000MBNV-T | TXC晶振 | AA | 20MHz | ±50ppm | ±50ppm | 8pF | -40°C ~ 125°C |
| AA-24.000MAHJ-T | TXC晶振 | AA | 24MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| AA-24.000MDHK-T | TXC晶振 | AA | 24MHz | ±30ppm | ±20ppm | 20pF | -40°C ~ 85°C |
| AA-25.000MANK-T | TXC晶振 | AA | 25MHz | ±50ppm | ±30ppm | 20pF | -40°C ~ 125°C |
| AA-27.000MAHQ-T | TXC晶振 | AA | 27MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| AA-48.000MAHE-T | TXC晶振 | AA | 48MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-7.200MBOE-T | TXC晶振 | AA | 7.2MHz | ±100ppm | ±50ppm | 12pF | -40°C ~ 105°C |
| AA-8.000MAGJ-T | TXC晶振 | AA | 8MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| AA-8.000MAHI-T | TXC晶振 | AA | 8MHz | ±30ppm | ±30ppm | 16pF | -40°C ~ 85°C |
| AA-8.000MAHQ-T | TXC晶振 | AA | 8MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| AA-8.000MAME-T | TXC晶振 | AA | 8MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-8.000MAMJ-T | TXC晶振 | AA | 8MHz | ±100ppm | ±30ppm | 18pF | -40°C ~ 125°C |
| AA-8.000MAMV-T | TXC晶振 | AA | 8MHz | ±100ppm | ±30ppm | 8pF | -40°C ~ 125°C |
| AA-8.000MBOV-T | TXC晶振 | AA | 8MHz | ±100ppm | ±50ppm | 8pF | -40°C ~ 105°C |
| AA-8.000MDHV-T | TXC晶振 | AA | 8MHz | ±30ppm | ±20ppm | 8pF | -40°C ~ 85°C |
| AA-8.000MDMK-T | TXC晶振 | AA | 8MHz | ±100ppm | ±20ppm | 20pF | -40°C ~ 125°C |
| AA-8.192MALE-T | TXC晶振 | AA | 8.192MHz | ±150ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-9.000MAHV-T | TXC晶振 | AA | 9MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-9.216MAHH-T | TXC晶振 | AA | 9.216MHz | ±30ppm | ±30ppm | 15pF | -40°C ~ 85°C |
| AA-9.216MAHQ-T | TXC晶振 | AA | 9.216MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| AA-9.84375MAHE-T | TXC晶振 | AA | 9.8435MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-10.000MAHV-T | TXC晶振 | AA | 10MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-13.560MAHE-T | TXC晶振 | AA | 13.56MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-15.000MAHV-T | TXC晶振 | AA | 15MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-16.000MAHV-T | TXC晶振 | AA | 16MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-16.000MANQ-T | TXC晶振 | AA | 16MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| AA-24.000MAHK-T | TXC晶振 | AA | 24MHz | ±30ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-24.576MAHE-T | TXC晶振 | AA | 24.576MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-24.576MAHV-T | TXC晶振 | AA | 24.576MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-28.63636MAHK-T | TXC晶振 | AA | 28.636MHz | ±30ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-37.050MAHV-T | TXC晶振 | AA | 37.05MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-37.209375MAHE-T | TXC晶振 | AA | 37.209MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-42.000MAHV-T | TXC晶振 | AA | 42MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-8.000MAGV-T | TXC晶振 | AA | 8MHz | ±50ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-8.000MAHV-T | TXC晶振 | AA | 8MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-8.000MAMK-T | TXC晶振 | AA | 8MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 125°C |
| AA-8.192MAHE-T | TXC晶振 | AA | 8.192MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-16.000MAHK-T | TXC晶振 | AA | 16MHz | ±30ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-16.000MDHK-T | TXC晶振 | AA | 16MHz | ±30ppm | ±20ppm | 20pF | -40°C ~ 85°C |
| AA-10.000MBNV-T | TXC晶振 | AA | 10MHz | ±50ppm | ±50ppm | 8pF | -40°C ~ 125°C |
