407F35E036M0000~美国CTS晶振~7050mm~36MHz
prevnext

407F35E036M0000~美国CTS晶振~7050mm~36MHz

频率：36MHz

尺寸：7.0mm x 5.0mm

407F35E036M0000~美国CTS晶振~7050mm~36MHz,407石英贴片晶振,407F35E036M0000晶振,美国CTS晶振,7050mm晶振,频率36MHz,无源晶振,工作温度-20~70°C,负载20pf,无线通讯设备晶振,宽带接入晶振,WIFI晶振,测试和测量仪器晶振,手持式设备晶振,计算机外围设备晶振.




订购热线：0755-27837162
QQ咨询 点击这里给我发消息

CTS

407F35E036M0000~美国CTS晶振~7050mm~36MHz,407石英贴片晶振,407F35E036M0000晶振,美国CTS晶振,7050mm晶振,频率36MHz,无源晶振,工作温度-20~70°C,负载20pf,无线通讯设备晶振,宽带接入晶振,WIFI晶振,测试和测量仪器晶振,手持式设备晶振,计算机外围设备晶振.

407F35E036M0000~美国CTS晶振~7050mm~36MHz 特征

1.标准7.0mm x 5.0mm陶瓷表面贴装封装 基本晶体设计

2.频率范围6 - 133MHz   频率公差±30ppm标准  频率稳定性±50ppm标准  工作温度-40℃~ +85℃

3.稳定的频率过温和驱动电平  胶带和卷轴包装标准, EIA-481   符合RoHS/绿色标准

4.407型是一种接缝密封陶瓷封装石英谐振器,具有优异的性能,性能广泛的应用,包括;无线通信、宽带接入、WLAN/WiMax/WIFI，测试和测量，便携式设备和计算机外围设备.

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

407F35E036M0000~美国CTS晶振~7050mm~36MHz 参数

项目 数值
频率 36MHz
操作模式 Fundamental
晶体切割 AT-Cut
工作温度  -20°C to +70°C
保存温度   -40°C to +100°C
频率公差 @ +25°C ± 30PPM

 工作温度范围内的频率稳定性 ( ref. to

+25°C)

± 50PPM
等效串联电阻(R1) 40 Ω
  并联电容 (C0) 5.0pF Typical, 7.0pF Maximum
负载电容 (CL) 20 pF
激励功率 200  μW Max
老化 @ +25°C ±3ppm/yr Typical
绝缘电阻 500M Ohms @ DC 100V

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

407F35E036M0000~美国CTS晶振~7050mm~36MHz 尺寸图

407

原厂编码 生产厂家 型号 频率 频率稳定度 频率偏差 负载电容 ESR电阻 工作温度
407F35E022M1184 CTS 晶振 407 22.1184MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E029M4912 CTS 晶振 407 29.4912MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E016M3840 CTS 晶振 407 16.384MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E009M6000 CTS 晶振 407 9.6MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F39E008M0000 CTS 晶振 407 8MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407T35E050M0000 CTS 晶振 407 50MHz ±50ppm ±30ppm 20pF 100 Ohm -20°C ~ 70°C
407F35E036M0000 CTS 晶振 407 36MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E012M5000 CTS 晶振 407 12.5MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E016M6700 CTS 晶振 407 16.67MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35D007M3728 CTS晶振 407 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
407F35D008M0000 CTS晶振 407 8MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D009M6000 CTS晶振 407 9.6MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D010M0000 CTS晶振 407 10MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D011M0592 CTS晶振 407 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D012M0000 CTS晶振 407 12MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D012M5000 CTS晶振 407 12.5MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D014M3181 CTS晶振 407 14.31818MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D014M7456 CTS晶振 407 14.7456MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D016M0000 CTS晶振 407 16MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D016M3840 CTS晶振 407 16.384MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D016M6700 CTS晶振 407 16.67MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D016M9344 CTS晶振 407 16.9344MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D018M4320 CTS晶振 407 18.432MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D019M6800 CTS晶振 407 19.68MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D020M0000 CTS晶振 407 20MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D022M1184 CTS晶振 407 22.1184MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D024M0000 CTS晶振 407 24MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D024M5760 CTS晶振 407 24.576MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D025M0000 CTS晶振 407 25MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D027M0000 CTS晶振 407 27MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D029M4912 CTS晶振 407 29.4912MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D032M0000 CTS晶振 407 32MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D036M0000 CTS晶振 407 36MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35E007M3728 CTS晶振 407 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
407F35E011M0592 CTS晶振 407 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E014M3181 CTS晶振 407 14.31818MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E016M9344 CTS晶振 407 16.9344MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E018M4320 CTS晶振 407 18.432MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E019M6800 CTS晶振 407 19.68MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E020M0000 CTS晶振 407 20MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E024M0000 CTS晶振 407 24MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E024M5760 CTS晶振 407 24.576MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E027M0000 CTS晶振 407 27MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E032M0000 CTS晶振 407 32MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F39D007M3728 CTS晶振 407 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
407F39D008M0000 CTS晶振 407 8MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D009M6000 CTS晶振 407 9.6MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D010M0000 CTS晶振 407 10MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D011M0592 CTS晶振 407 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D012M0000 CTS晶振 407 12MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D012M5000 CTS晶振 407 12.5MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D014M3181 CTS晶振 407 14.31818MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D014M7456 CTS晶振 407 14.7456MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D016M0000 CTS晶振 407 16MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D016M3840 CTS晶振 407 16.384MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D016M6700 CTS晶振 407 16.67MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D016M9344 CTS晶振 407 16.9344MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D018M4320 CTS晶振 407 18.432MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D019M6800 CTS晶振 407 19.68MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D020M0000 CTS晶振 407 20MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D022M1184 CTS晶振 407 22.1184MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D024M0000 CTS晶振 407 24MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D024M5760 CTS晶振 407 24.576MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D025M0000 CTS晶振 407 25MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D027M0000 CTS晶振 407 27MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D029M4912 CTS晶振 407 29.4912MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D032M0000 CTS晶振 407 32MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D036M0000 CTS晶振 407 36MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39E007M3728 CTS晶振 407 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
407F39E009M6000 CTS晶振 407 9.6MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E010M0000 CTS晶振 407 10MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E011M0592 CTS晶振 407 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E012M0000 CTS晶振 407 12MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E012M5000 CTS晶振 407 12.5MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E014M3181 CTS晶振 407 14.31818MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E014M7456 CTS晶振 407 14.7456MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E016M0000 CTS晶振 407 16MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E016M3840 CTS晶振 407 16.384MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E016M6700 CTS晶振 407 16.67MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E016M9344 CTS晶振 407 16.9344MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E018M4320 CTS晶振 407 18.432MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E019M6800 CTS晶振 407 19.68MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E020M0000 CTS晶振 407 20MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E022M1184 CTS晶振 407 22.1184MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E024M0000 CTS晶振 407 24MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E024M5760 CTS晶振 407 24.576MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E025M0000 CTS晶振 407 25MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E027M0000 CTS晶振 407 27MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E029M4912 CTS晶振 407 29.4912MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E032M0000 CTS晶振 407 32MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E036M0000 CTS晶振 407 36MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F35E008M0000 CTS晶振 407 8MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E010M0000 CTS晶振 407 10MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E012M0000 CTS晶振 407 12MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E014M7456 CTS晶振 407 14.7456MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E016M0000 CTS晶振 407 16MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E025M0000 CTS晶振 407 25MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F37D008M0000 CTS晶振 407 8MHz ±30ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F35E044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35D044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407T35D050M0000 CTS晶振 407 50MHz ±50ppm ±30ppm 18pF 100 Ohm -20°C ~ 70°C
407F39D044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39E044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407T39D050M0000 CTS晶振 407 50MHz ±50ppm ±30ppm 18pF 100 Ohm -40°C ~ 85°C
407T39E050M0000 CTS晶振 407 50MHz ±50ppm ±30ppm 20pF 100 Ohm -40°C ~ 85°C

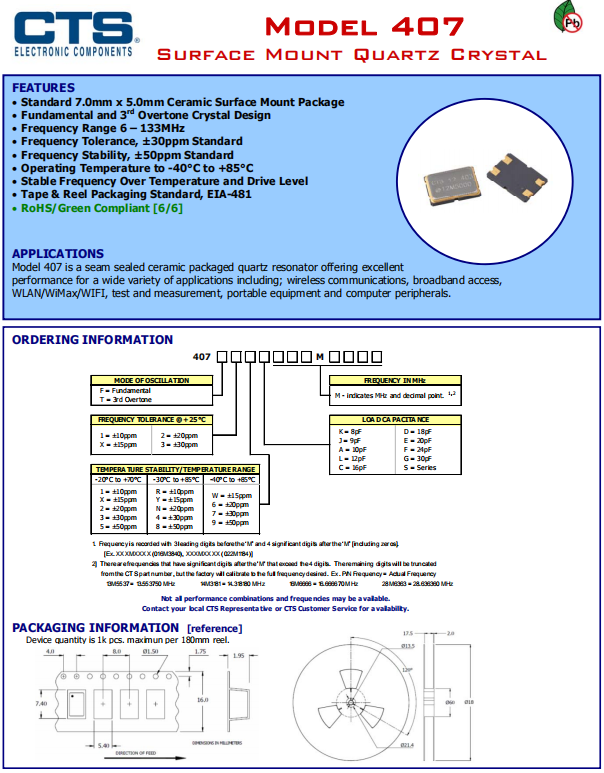

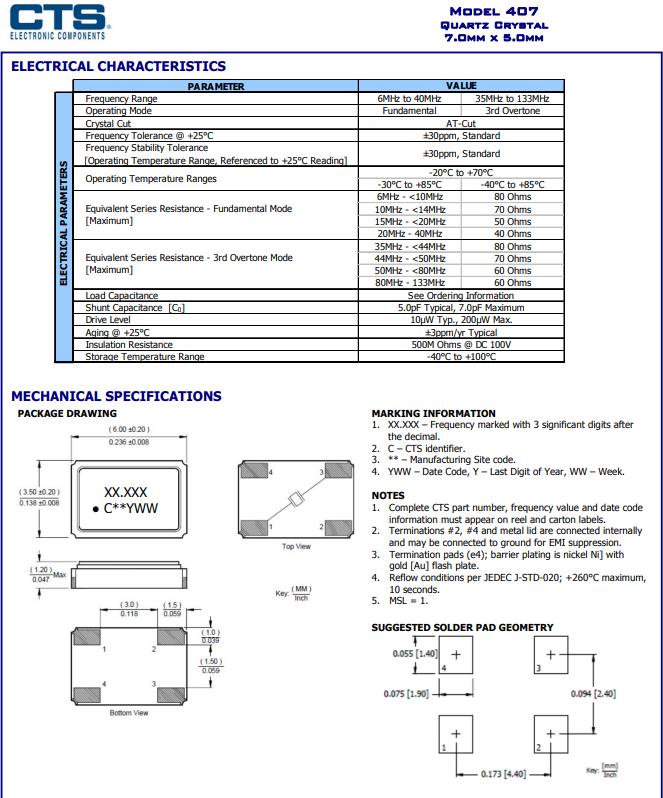

407F35E036M0000~美国CTS晶振~7050mm~36MHz 规格书与内部识别码

407（1）

407



JLX-6

RB-6
