406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf

频率：27MHz

尺寸：6.0mm x 3.5mm

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf,406C35B27M00000晶振,6035mm晶振,CTS石英晶振,频率27MHz,负载13pf,工作温度-20~70°C,陶瓷晶振,四脚SMD晶振,无线通信晶振,宽带接入晶振,测试和测量设备晶振,计算机外围设备晶振,便携式设备晶振.

订购热线：0755-27837162

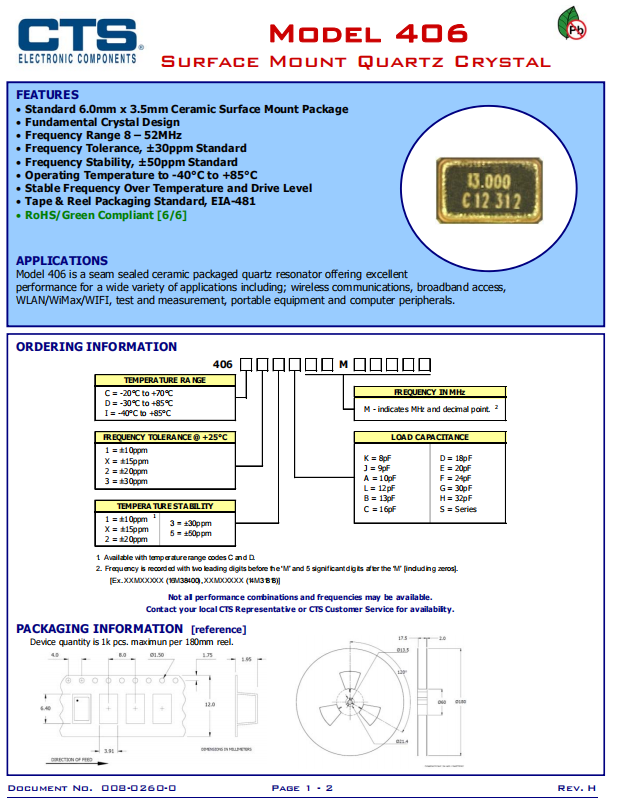

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 特征

1.标准6.0mm x 3.5mm陶瓷表面贴装封装基本晶体设计

2.频率范围8 - 52MHz 频率公差±30ppm标准频率稳定性±50ppm标准工作温度-40℃~ +85℃

3.稳定的频率过温和驱动电平胶带和卷轴包装标准, EIA-481 符合RoHS/绿色标准

4.406型是一种接缝密封陶瓷封装石英谐振器，提供卓越的性能广泛的应用，包括;无线通信、宽带接入、WLAN/WiMax/WIFI，测试和测量，便携式设备和计算机外围设备

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

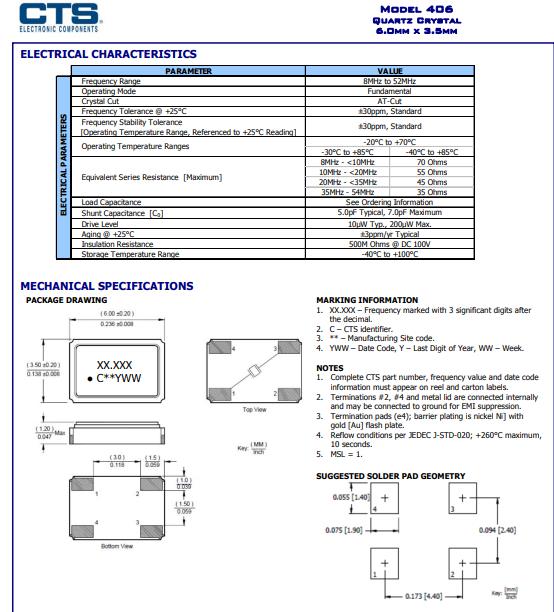

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 参数

项目			数值
频率			27MHz
操作模式			Fundamental
晶体切割			AT-Cut
工作温度			-20°C to +70°C
保存温度			-40°C to +100°C
频率公差 @ +25°C			± 30PPM
工作温度范围内的频率稳定性 ( ref. to +25°C)			± 50PPM
等效串联电阻(R1)			45 Ω
并联电容 (C0)			5.0pF Typical, 7.0pF Maximum
负载电容 (CL)			13 pF
激励功率			200 μW Max
老化 @ +25°C			±3ppm/yr Typical
绝缘电阻			500M Ohms @ DC 100V

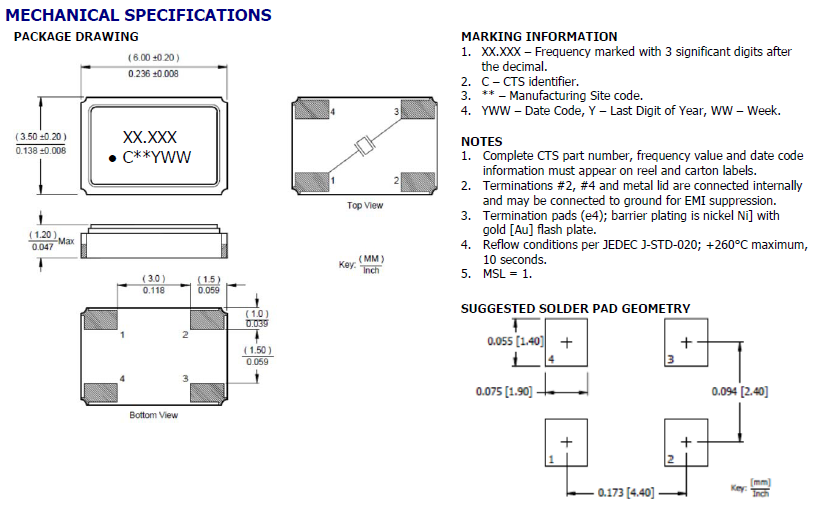

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 尺寸图

原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	ESR电阻	工作温度
406C35B10M24500	CTS 晶振	406	10.245MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406I35D08M00000	CTS 晶振	406	8MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
406C35B13M00000	CTS 晶振	406	13MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35D12M00000	CTS 晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
406C35B14M00000	CTS 晶振	406	14MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B24M57600	CTS 晶振	406	24.576MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406I35D10M00000	CTS 晶振	406	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
406I35D12M00000	CTS 晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
406C35D25M00000	CTS 晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
406C35B18M43200	CTS 晶振	406	18.432MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406I35D14M31818	CTS 晶振	406	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
406C35B10M00000	CTS 晶振	406	10MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B44M54500	CTS 晶振	406	44.545MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B30M00000	CTS 晶振	406	30MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35D24M00000	CTS 晶振	406	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
406C35B27M00000	CTS 晶振	406	27MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406I35D16M00000	CTS 晶振	406	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406C35B13M22500	CTS 晶振	406	13.225MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B13M22500	CTS 晶振	406	13.225MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B13M22500	CTS 晶振	406	13.225MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406I35D20M00000	CTS 晶振	406	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D20M00000	CTS 晶振	406	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D20M00000	CTS 晶振	406	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D24M00000	CTS 晶振	406	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D24M00000	CTS 晶振	406	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D24M00000	CTS 晶振	406	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D25M00000	CTS 晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D25M00000	CTS 晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D25M00000	CTS 晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406C35B12M28800	CTS晶振	406	12.288MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M28800	CTS晶振	406	12.288MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M28800	CTS晶振	406	12.288MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M68800	CTS晶振	406	12.688MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M68800	CTS晶振	406	12.688MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M68800	CTS晶振	406	12.688MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M31818	CTS晶振	406	14.31818MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M85000	CTS晶振	406	14.85MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M85000	CTS晶振	406	14.85MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M85000	CTS晶振	406	14.85MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B19M44000	CTS晶振	406	19.44MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B19M44000	CTS晶振	406	19.44MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B19M44000	CTS晶振	406	19.44MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B20M48000	CTS晶振	406	20.48MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B22M00000	CTS晶振	406	22MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B32M76800	CTS晶振	406	32.768MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B32M76800	CTS晶振	406	32.768MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B32M76800	CTS晶振	406	32.768MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B35M32800	CTS晶振	406	35.328MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B35M32800	CTS晶振	406	35.328MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B35M32800	CTS晶振	406	35.328MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
