香港NKG晶体,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振
频率：25MHZ
尺寸：6.0×3.5×1.0mm
香港NKG晶体,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振,香港NKG晶体,S6M无源晶振,石英晶振,S6M25.0000F20M1Y-EXT晶振,6035mm晶振,晶体谐振器,四脚贴片晶振,SMD晶振,频率25MHz,负载20pF,频率容差10ppm,工作温度-40~85°C,高精度晶振,低老化晶振,高可靠晶振,6G基站晶振,GPS导航设备晶振,网络交换机晶振,移动通信晶振.
香港NKG晶体,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振,香港NKG晶体,S6M无源晶振,石英晶振,S6M25.0000F20M1Y-EXT晶振,6035mm晶振,晶体谐振器,四脚贴片晶振,SMD晶振,频率25MHz,负载20pF,频率容差10ppm,工作温度-40~85°C,高精度晶振,低老化晶振,高可靠晶振,6G基站晶振,GPS导航设备晶振,网络交换机晶振,移动通信晶振.
香港NKG晶体,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振特点：

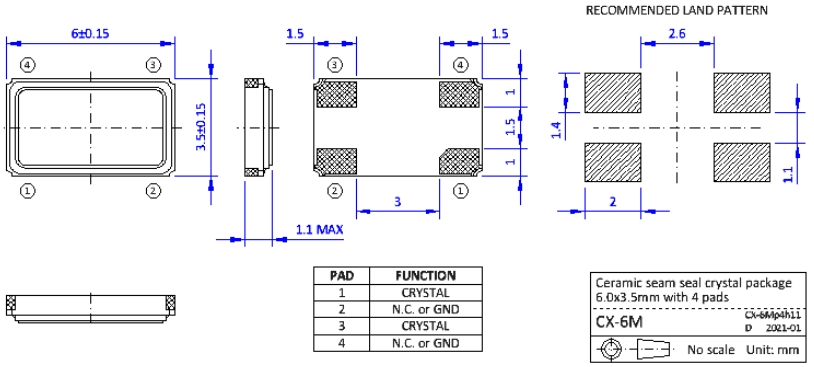

●小包装尺寸6.0 x 3.5x 1.0mm与4个垫
●优异的耐热性和抗震性
●高可靠的缝封封装，低老化
●符合AEC-Q200标准的汽车级产品可供选择

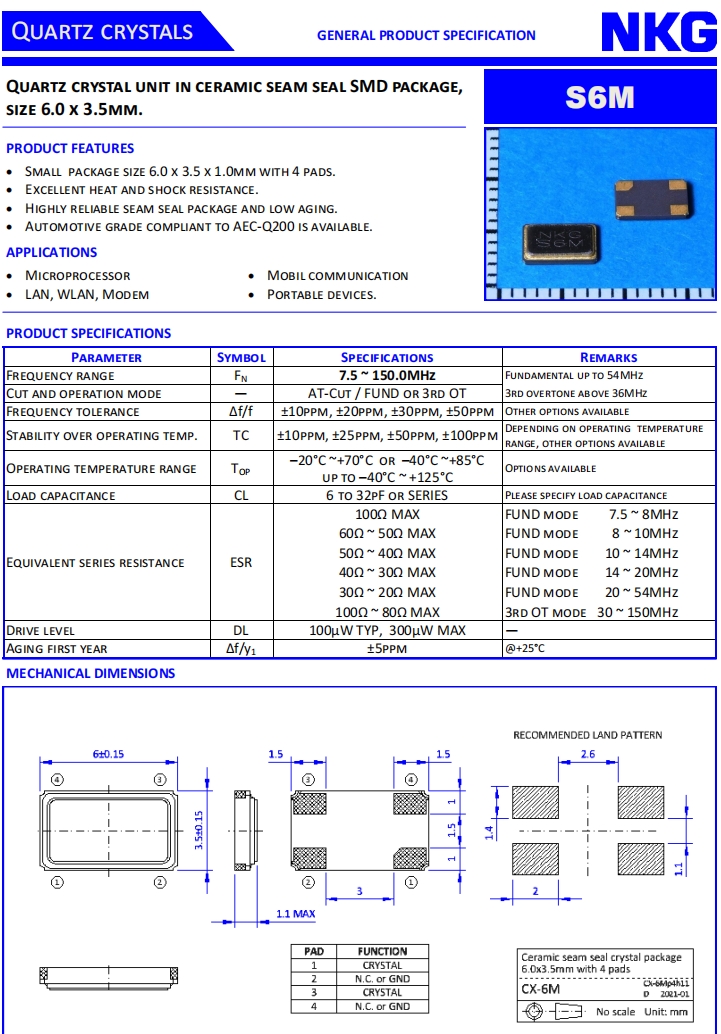

香港NKG晶体,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振规格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
25MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±15ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
20pF
Please specify load capacitance
Equivalent series resistance
ESR
30Ω~20Ω MAX
FUND MODE 20~ 54MHz
Drive level
DL
100µW TYP, 300µW MAX
-
Aging first year
Δf/y1
±5ppm
@+25°C
