NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振
频率：40MHZ
尺寸：3.2×2.5×0.8mm
NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振,NKG晶振,S3M进口晶振,无源晶振,S3M40.0000F18M23-EXT晶振,3225mm晶振,四脚封装晶振,贴片石英晶振,石英晶体谐振器,频率40MHz,负载18pF,频率容差20ppm,工作温度-40~85°C,小体积晶振,高可靠性晶振,低老化晶振,6G移动无线电晶振,便携式设备晶振,USB存储设备晶振,蓝牙模块晶振.
NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振,NKG晶振,S3M进口晶振,无源晶振,S3M40.0000F18M23-EXT晶振,3225mm晶振,四脚封装晶振,贴片石英晶振,石英晶体谐振器,频率40MHz,负载18pF,频率容差20ppm,工作温度-40~85°C,小体积晶振,高可靠性晶振,低老化晶振,6G移动无线电晶振,便携式设备晶振,USB存储设备晶振,蓝牙模块晶振.
NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振特点：

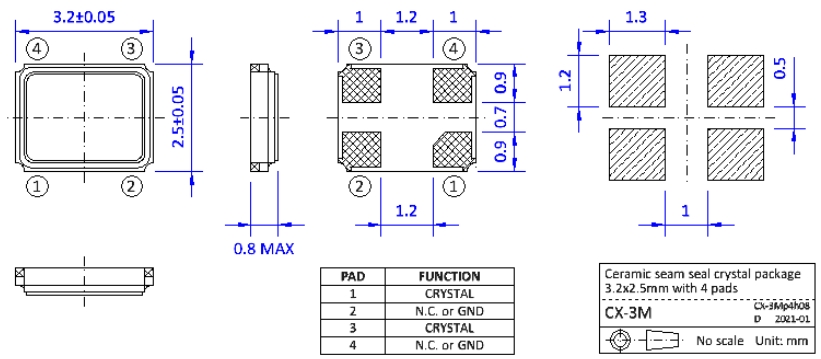

●微型包装尺寸3.2 x 2.5x 0.7mm与4个垫
●优异的耐热性和抗震性
●真空密封，可靠性高，老化率低
●符合AEC-Q200标准的汽车级产品可供选择

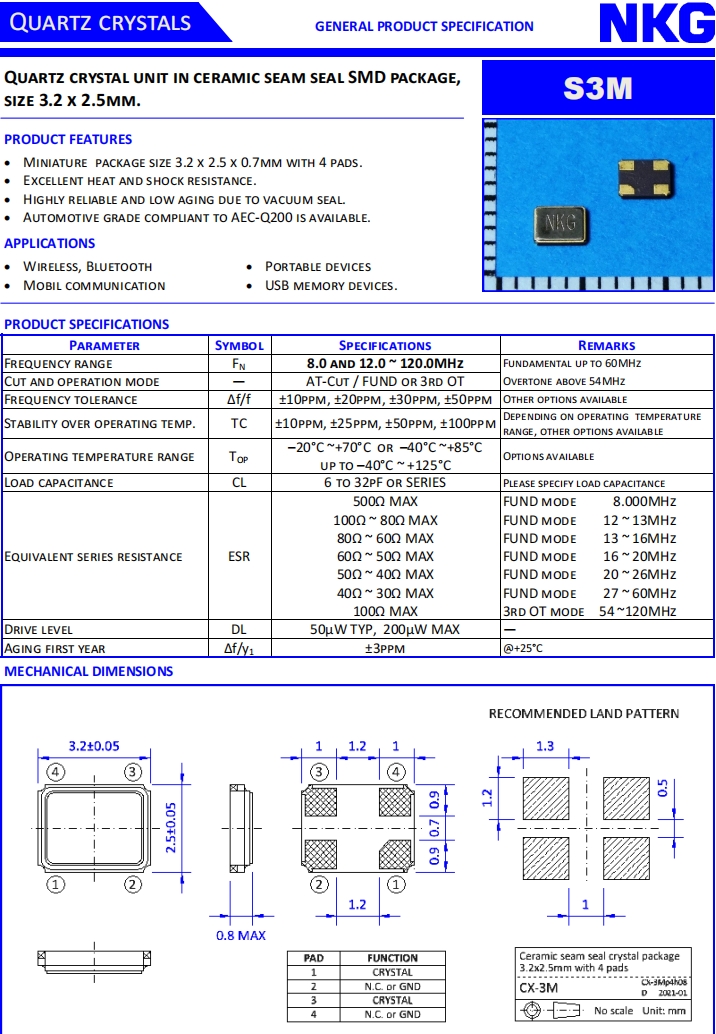

NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振规格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
40MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±30ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
18pF
Please specify load capacitance
Equivalent series resistance
ESR
40Ω~30Ω MAX
FUND MODE 27~ 60MHz
Drive level
DL
50µW TYP, 200µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
