NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振
频率：24.576MHZ

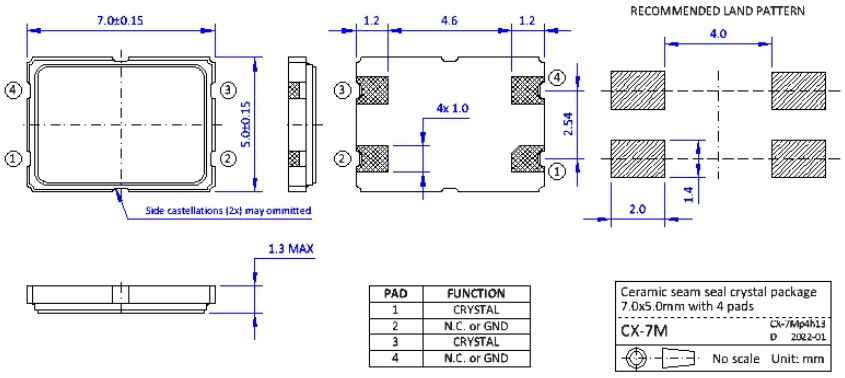

尺寸：7.0×5.0×1.1mm
NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振,NKG Crystal,S7M进口贴片晶振,无源晶振,S7M24.5760F18E23-EXT晶振,石英晶体谐振器,7050mm晶振,四脚封装晶振,SMD晶振,频率24.576MHz,负载18pF,频率容差20ppm,工作温度-20~70°C,耐高温晶振,抗震动晶振,高品质晶振,6G无线网络晶振,微处理器晶振,调制解调器晶振,便携式设备晶振.
NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振,NKG Crystal,S7M进口贴片晶振,无源晶振,S7M24.5760F18E23-EXT晶振,石英晶体谐振器,7050mm晶振,四脚封装晶振,SMD晶振,频率24.576MHz,负载18pF,频率容差20ppm,工作温度-20~70°C,耐高温晶振,抗震动晶振,高品质晶振,6G无线网络晶振,微处理器晶振,调制解调器晶振,便携式设备晶振.
NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振特点：
●小包装尺寸7.0 x 5.0x 1.1mm与4个垫
●优异的耐热性和抗震性
●高可靠的缝封封装，低老化

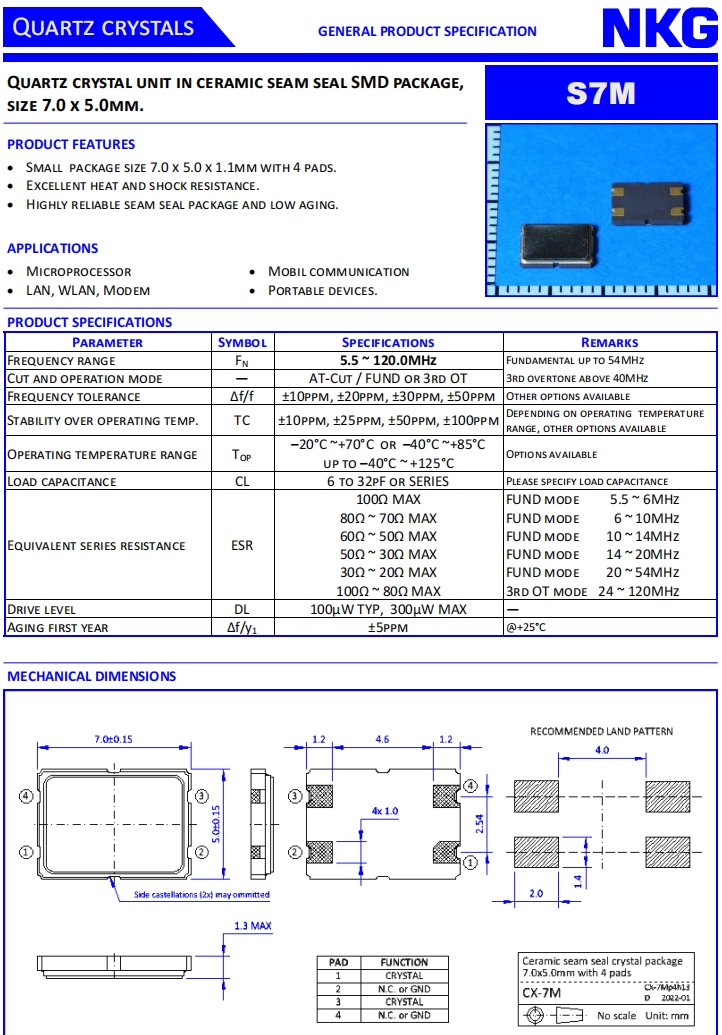

NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振规格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
24.576MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±30ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–20°C ~+70°C
Options available
Load capacitance
CL
18pF
Please specify load capacitance
Equivalent series resistance
ESR
30Ω~20Ω MAX
FUND MODE 20~ 54MHz
Drive level
DL
100µW TYP, 300µW MAX
-
Aging first year
Δf/y1
±5ppm
@+25°C
