NKG晶振,CT25M19.2000F10V1T-100,2520热敏晶振,6G移动通信晶振
频率：19.2MHz
尺寸：2.5×2.0×0.8mm
NKG晶振,CT25M19.2000F10V1T-100,2520热敏晶振,6G移动通信晶振,NKG晶振,CT25M石英晶振,热敏晶振,CT25M19.2000F10V1T-100晶振,晶体谐振器,2520晶振,进口晶振,四脚贴片晶振,SMD晶振,频率19.2MHz,负载10pF,频率容差10ppm,工作温度-30~85°C,高品质晶振,高精度晶振,轻薄小晶振,6G移动通信晶振,便携式设备晶振,蓝牙音响晶振,消费电子产品晶振.
NKG晶振,CT25M19.2000F10V1T-100,2520热敏晶振,6G移动通信晶振,NKG晶振,CT25M石英晶振,热敏晶振,CT25M19.2000F10V1T-100晶振,晶体谐振器,2520晶振,进口晶振,四脚贴片晶振,SMD晶振,频率19.2MHz,负载10pF,频率容差10ppm,工作温度-30~85°C,高品质晶振,高精度晶振,轻薄小晶振,6G移动通信晶振,便携式设备晶振,蓝牙音响晶振,消费电子产品晶振.
NKG晶振,CT25M19.2000F10V1T-100,2520热敏晶振,6G移动通信晶振特点：
●内置热敏电阻100kΩ用于温度测量
●非常适合与内置温度补偿振荡器电路的ICs一起使用

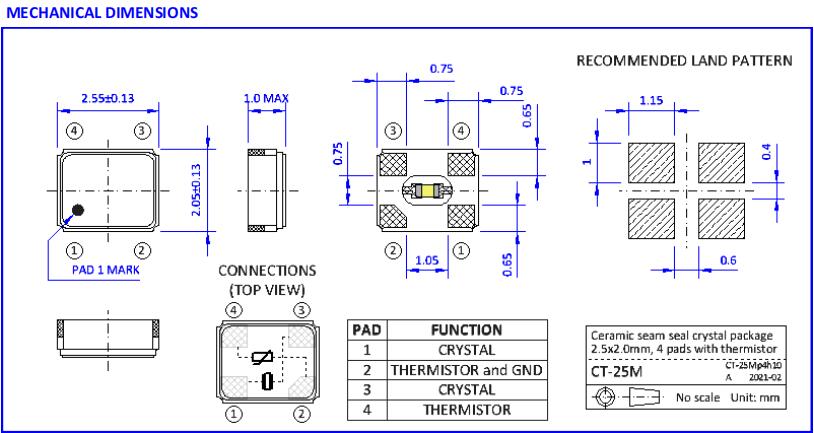

●高度可靠的包装尺寸2.5x2.0x0.8mm，带有4个衬垫

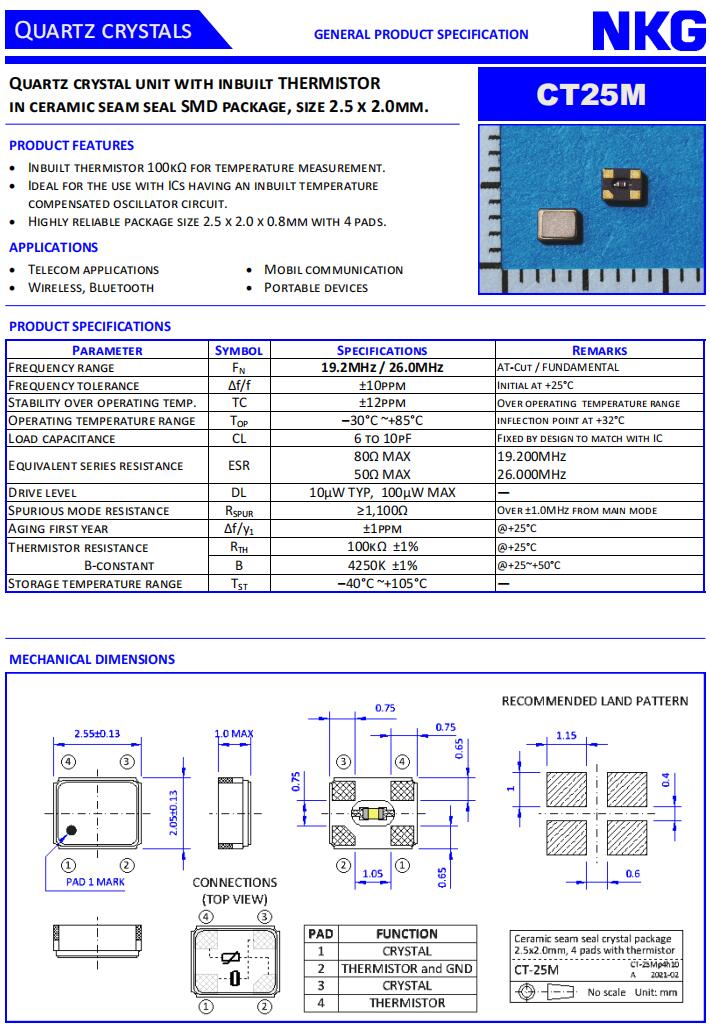

NKG晶振,CT25M19.2000F10V1T-100,2520热敏晶振,6G移动通信晶振规格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
19.2MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±12ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–30°C ~+85°C
Options available
Load capacitance
CL
10pF
Please specify load capacitance
Equivalent series resistance
ESR
80Ω MAX
19.2MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Spurious mode resistance
RSPUR
≥1,100Ω
Over ±1.0MHz from main mode
Aging first year
Δf/y1
±1ppm
@+25°C
Storage temperature range
TST
–40°C ~+105°C
-
