领先全球的6G信号接收器晶振,进口ILSI晶体,ILCX04-BB3F12-11.0592MHz晶振

频率：11.0592MHZ

尺寸：7050mm

领先全球的6G信号接收器晶振,进口ILSI晶体,ILCX04-BB3F12-11.0592MHz晶振，美国ILSI晶振，贴片晶振,ILCX04晶振,无源贴片晶振,石英晶振,贴片石英晶体,二脚晶振，插件晶振，欧美晶振，无源晶振，无人机晶振，电车充电枪晶振，石英晶体谐振器，工作温度-40~85°C，网络服务器晶振，存储卡晶振，无线局域网晶振，光纤通道晶振.高品质晶振，进口晶振，艾尔西晶振，进口晶振，7050晶振，智能手机晶振，移动通信终端晶振，基准时钟晶振，6G手机晶振,无线通信晶振,6G卫星晶振,贴片晶振,体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域,因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求.

订购热线：0755-27837162

领先全球的6G信号接收器晶振,进口ILSI晶体,ILCX04-BB3F12-11.0592MHz晶振，美国ILSI晶振，贴片晶振,ILCX04晶振,无源贴片晶振,石英晶振,贴片石英晶体,二脚晶振，插件晶振，欧美晶振，无源晶振，无人机晶振，电车充电枪晶振，石英晶体谐振器，工作温度-40~85°C，网络服务器晶振，存储卡晶振，无线局域网晶振，光纤通道晶振.高品质晶振，进口晶振，艾尔西晶振，进口晶振，7050晶振，智能手机晶振，移动通信终端晶振，基准时钟晶振，6G手机晶振,无线通信晶振,6G卫星晶振,贴片晶振,体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域,因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求.

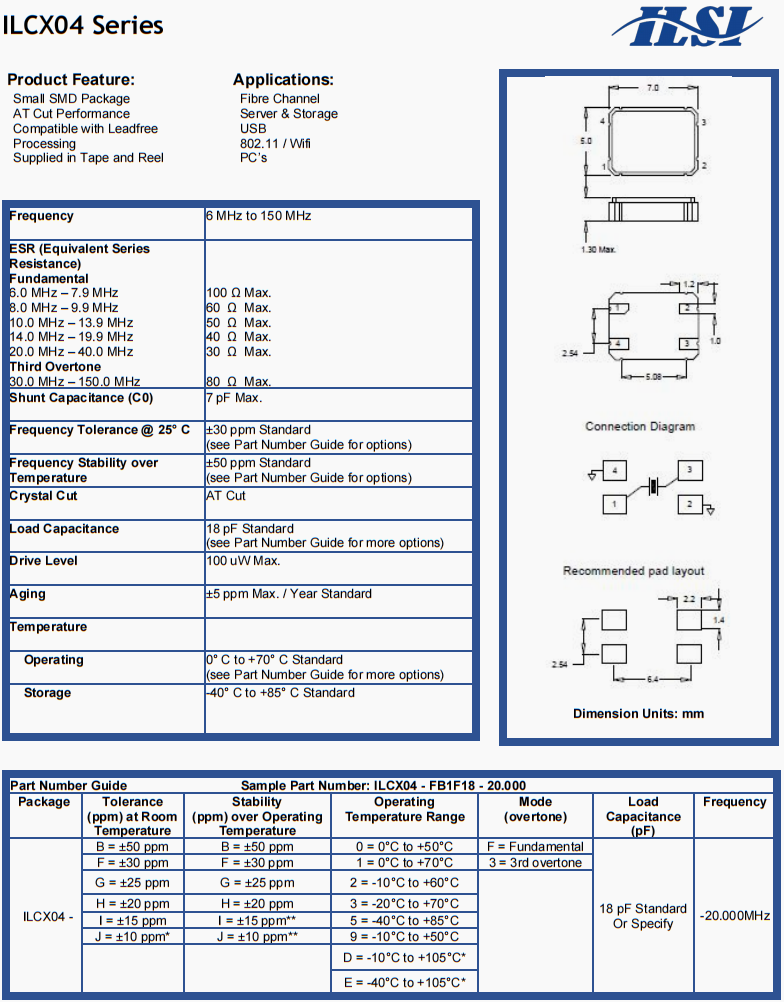

领先全球的6G信号接收器晶振,进口ILSI晶体,ILCX04-BB3F12-11.0592MHz晶振

频率	8MHz to 150MHz
基础等效串联电阻 8MHz – 9.999999MHz 10MHz – 11.999999MHz 12MHz – 15.999999MHz 16MHz – 19.999999MHz 20MHz – 23.999999MHz 24MHz – 50MHz Third Overtone 30MHz – 150MHz	100 Ohms Maximum 80 Ohms Maximum 60 Ohms Maximum 50 Ohms Maximum 40 Ohms Maximum 30 Ohms Maximum 80 Ohms Maximum
分流电容 (C0)	5pF Maximum
频率容差 (at 25°C)	±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm
温度范围内的频率稳定度	±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm
工作模式 8MHz – 50MHz 30MHz – 150MHz	Fundamental Third Overtone
水晶切割	AT Cut
负载电容	8pF to 32pF or Specify
驱动电平	100µW Maximum
老化	±5ppm/Year Maximum
工作温度范围	See Part Number Guide
储存温度范围	-40°C to +85°C

领先全球的6G信号接收器晶振,进口ILSI晶体,ILCX04-BB3F12-11.0592MHz晶振

原厂编码	生产商品牌	型号	频率	频率稳定度	频率容差	负载电容	工作温度范围
HC49US-FF3F18-8.000MHZ	ILSI	HC49US	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-8.000MHZ	ILSI	HC49USM	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-3.6864MHZ	ILSI	HC49USM	3.6864 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX13-FF5F10-16.384MHZ	ILSI	ILCX13	16.384 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX13-FF5F10-12.000MHZ	ILSI	ILCX13	12 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
HC49US-FF3F18-4.0960MHZ	ILSI	HC49US	4.096 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
IXA16-HBFF12-25.000MHZ	ILSI	IXA16	25 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-16.000MHZ	ILSI	IXA16	16 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HF5F12-12.000 MHZ	ILSI	IXA16	12 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HBFF12-24.000MHZ	ILSI	IXA16	24 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA20-HF5F12-16.000MHZ	ILSI	IXA20	16 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA18-FBFF8-16.000MHZ	ILSI	IXA18	16 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
HC49USM-FF5F18-18.4320MHZ	ILSI	HC49USM	18.432 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX13-FF5F10-27.000MHZ	ILSI	ILCX13	27 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX13-FF5F10-20.000MHZ	ILSI	ILCX13	20 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-18.432MHZ	ILSI	IXA16	18.432 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA18-FBFF8-10.000 MHZ	ILSI	IXA18	10 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
IL3W-HX5F9-32.768KHZ	ILSI	IL3W	32.768 kHz	-	±20ppm	9pF	-40°C ~ 85°C
IL3X2-HX5F7- 32.768 KHZ	ILSI	IL3X2	32.768 kHz	-	±20ppm	7pF	-40°C ~ 85°C
HC49USM-FF3F18-11.0592MHZ	ILSI	HC49USM	11.0592 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-7.3728MHZ	ILSI	HC49USM	7.3728 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-20.000MHZ	ILSI	HC49USM	20 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
ILCX13-FF5F10-26.000MHZ	ILSI	ILCX13	26 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
HC49USM-FF3F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-14.7456MHZ	ILSI	HC49USM	14.7456 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-12.000MHZ	ILSI	HC49USM	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX19-FF5F10-27.120MHZ	ILSI	ILCX19	27.12 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-12.288MHZ	ILSI	IXA16	12.288 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-27.000MHZ	ILSI	IXA16	27 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-26.000MHZ	ILSI	IXA16	26 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA12-FBFF10-27.000MHZ	ILSI	IXA12	27 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA16-HF5F12-18.432MHZ	ILSI	IXA16	18.432 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA12-FBFF10-32.000MHZ	ILSI	IXA12	32 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA16-HF5F12-28.63636MHZ	ILSI	IXA16	28.63636 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-20.000MHZ	ILSI	IXA16	20 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-12.288MHZ	ILSI	IXA16	12.288 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-26.000MHZ	ILSI	IXA16	26 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA12-FBFF10-27.120MHZ	ILSI	IXA12	27.12 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA12-FBFF10-24.576 MHZ	ILSI	IXA12	24.576 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA10-HF5F10-26.000MHZ	ILSI	IXA10	26 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA10-HF5F10-27.000MHZ	ILSI	IXA10	27 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA10-FBFF10-26.000MHZ	ILSI	IXA10	26 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ILCX13-FF5F10-25.000MHZ	ILSI	ILCX13	25 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX19-FF5F10-54.000MHZ	ILSI	ILCX19	54 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-20.000MHZ	ILSI	IXA12	20 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-24.576MHZ	ILSI	IXA12	24.576 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-24.000MHZ	ILSI	IXA12	24 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-32.000MHZ	ILSI	IXA12	32 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-26.000MHZ	ILSI	IXA12	26 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-25.000MHZ	ILSI	IXA12	25 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-30.000MHZ	ILSI	IXA16	30 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-12.000MHZ	ILSI	IXA16	12 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-24.576MHZ	ILSI	IXA16	24.576 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA12-HF5F10-19.200MHZ	ILSI	IXA12	19.2 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-32.000MHZ	ILSI	IXA16	32 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-13.560MHZ	ILSI	IXA16	13.56 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
ILCX19-IH5F8-48.000MHZ	ILSI	ILCX19	48 MHz	±20ppm	±15ppm	8pF	-40°C ~ 85°C
IXA16-HF5F12-30.000MHZ	ILSI	IXA16	30 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-24.576MHZ	ILSI	IXA16	24.576 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-13.560MHZ	ILSI	IXA16	13.56 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA10-HF5F10-24.000MHZ	ILSI	IXA10	24 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HF5F12-25.000MHZ	ILSI	IXA16	25 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
