美国艾尔西晶振,遥遥领先的北斗卫星晶振,HC49USM-FF3F18-8.000MHZ晶振

频率:8MHZ

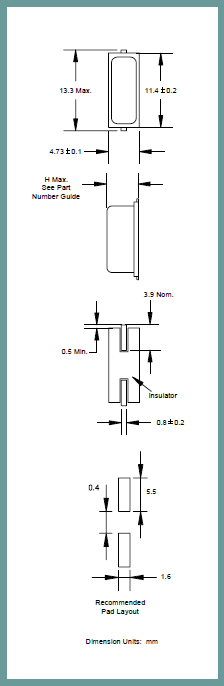

尺寸:13.3*4.7mm

 美国艾尔西晶振,遥遥领先的北斗卫星晶振,HC49USM-FF3F18-8.000MHZ晶振ILSI晶振公司,外观完全使用金属材料封装的,产品本身采用全自动石英晶体检测仪,以及跌落,漏气等苛刻实验.产品本身具有高稳定性,高可靠性的石英晶体谐振器,焊接方面支持表面贴装,外观采用金属封装,具有充分的密封性能,晶振本身能确保其高可靠性,采用编带包装,可对应产品应用到自动贴片机告诉安装,满足无铅焊接的高温回流温度曲线要求.贴片晶振,HC49USM晶振,石英晶振,6G路由器晶振,无人机晶振,高品质晶振,低功耗晶振,智能穿戴设备晶振,北斗卫星晶振,无源晶振,二脚晶振。
订购热线:0755-27837162
QQ咨询 点击这里给我发消息

 美国艾尔西晶振,遥遥领先的北斗卫星晶振,HC49USM-FF3F18-8.000MHZ晶振ILSI晶振公司,外观完全使用金属材料封装的,产品本身采用全自动石英晶体检测仪,以及跌落,漏气等苛刻实验.产品本身具有高稳定性,高可靠性的石英晶体谐振器,焊接方面支持表面贴装,外观采用金属封装,具有充分的密封性能,晶振本身能确保其高可靠性,采用编带包装,可对应产品应用到自动贴片机告诉安装,满足无铅焊接的高温回流温度曲线要求.贴片晶振,HC49USM晶振,石英晶振,6G路由器晶振,无人机晶振,高品质晶振,低功耗晶振,智能穿戴设备晶振,北斗卫星晶振,无源晶振,二脚晶振。

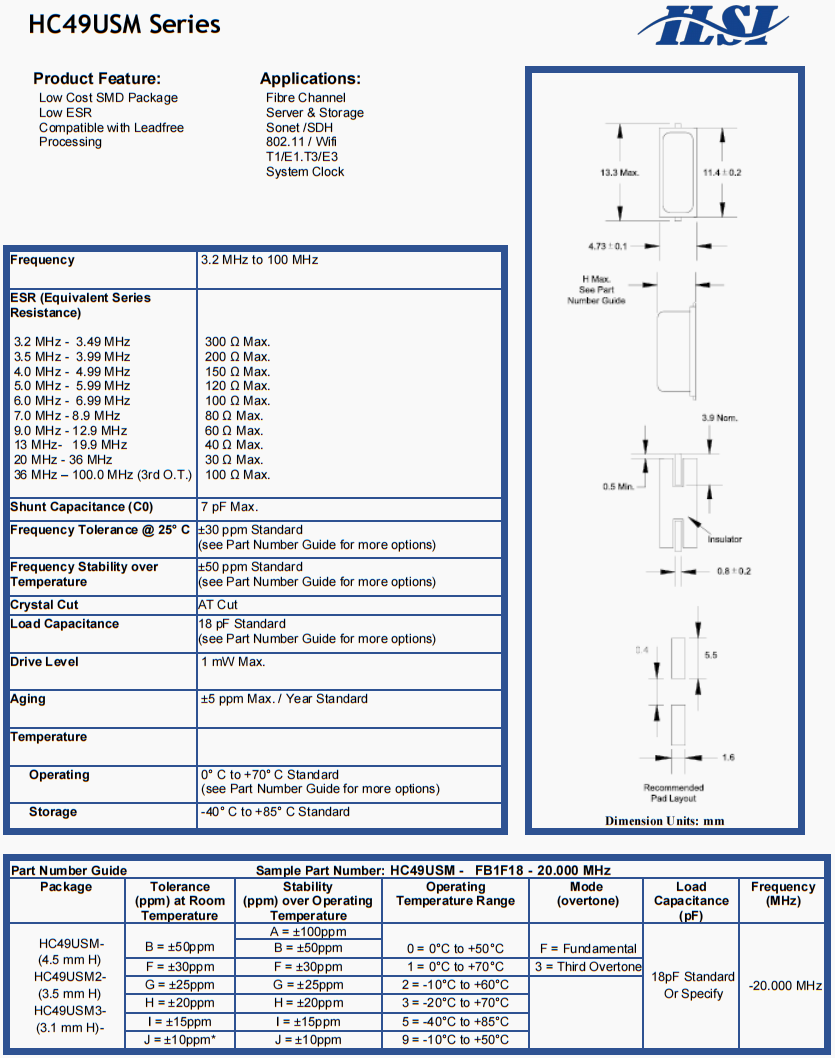

 美国艾尔西晶振,遥遥领先的北斗卫星晶振,HC49USM-FF3F18-8.000MHZ晶振

频率 3.2 MHz to 100 MHz
分流电容 7 pF Max.
频率容差 ±30 ppm Standard(see Part Number Guide for more options)
温度范围内的频率稳定度 ±50 ppm Standard(see Part Number Guide for more options)
水晶切割 AT Cut
负载电容 18 pF Standard(see Part Number Guide for more options)
驱动电平 1 mW Max.
老化 ±5 ppm Max. / Year Standard
工作温度范围 0° C to +70° C Standard(see Part Number Guide for more options)
储存温度范围 -40 ° C to +85° C Standard


 美国艾尔西晶振,遥遥领先的北斗卫星晶振,HC49USM-FF3F18-8.000MHZ晶振

椭圆型石英谐振器,进口无源49SMD晶体,HC49USM晶振

HC49USM

原厂编码 生产商品牌 型号 频率 频率稳定度 频率容差 负载电容 工作温度范围
HC49US-FF3F18-8.000MHZ ILSI HC49US 8 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-27.000MHZ ILSI HC49USM 27 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-8.000MHZ ILSI HC49USM 8 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF5F18-3.6864MHZ ILSI HC49USM 3.6864 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF3F18-4.0960MHZ ILSI HC49US 4.096 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF5F18-18.4320MHZ ILSI HC49USM 18.432 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF3F18-11.0592MHZ ILSI HC49USM 11.0592 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-7.3728MHZ ILSI HC49USM 7.3728 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-20.000MHZ ILSI HC49USM 20 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-16.000MHZ ILSI HC49USM 16 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF5F18-14.7456MHZ ILSI HC49USM 14.7456 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF5F18-27.000MHZ ILSI HC49USM 27 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF5F18-16.000MHZ ILSI HC49USM 16 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF5F18-12.000MHZ ILSI HC49USM 12 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF3F18-16.000MHZ ILSI HC49US 16 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-20.000MHZ ILSI HC49US 20 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-10.000MHZ ILSI HC49US 10 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-24.000MHZ ILSI HC49US 24 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-12.000MHZ ILSI HC49US 12 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-25.000MHZ ILSI HC49US 25 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-11.0592MHZ ILSI HC49US 11.0592 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF5F18-4.9152MHZ ILSI HC49US 4.9152 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-25.000MHZ ILSI HC49US 25 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-4.0960MHZ ILSI HC49US 4.096 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-16.000MHZ ILSI HC49US 16 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-8.000MHZ ILSI HC49US 8 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-3.6864MHZ ILSI HC49US 3.6864 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-27.000MHZ ILSI HC49US 27 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-4.000MHZ ILSI HC49US 4 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF3F18-18.4320MHZ ILSI HC49US 18.432 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-14.31818MHZ ILSI HC49US 14.31818 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-7.3728MHZ ILSI HC49US 7.3728 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF5F18-14.31818MHZ ILSI HC49US 14.31818 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-10.000MHZ ILSI HC49US 10 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF3F18-10.000MHZ ILSI HC49USM 10 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF5F18-11.0592MHZ ILSI HC49USM 11.0592 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF3F18-6.000MHZ ILSI HC49USM 6 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-18.4320MHZ ILSI HC49USM 18.432 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-12.000MHZ ILSI HC49USM 12 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-25.000MHZ ILSI HC49USM 25 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-4.000MHZ ILSI HC49USM 4 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-3.6864MHZ ILSI HC49USM 3.6864 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF5F18-24.000MHZ ILSI HC49USM 24 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF5F18-4.000MHZ ILSI HC49USM 4 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF5F18-25.000MHZ ILSI HC49USM 25 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF3F18-27.000MHZ ILSI HC49US 27 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF5F18-6.000MHZ ILSI HC49US 6 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-7.3728MHZ ILSI HC49US 7.3728 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-6.1440MHZ ILSI HC49US 6.144 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-20.000MHZ ILSI HC49US 20 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-14.7456MHZ ILSI HC49US 14.7456 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-24.000MHZ ILSI HC49US 24 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF5F18-18.4320MHZ ILSI HC49US 18.432 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF3F18-4.9152MHZ ILSI HC49USM 4.9152 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF3F18-14.7456MHZ ILSI HC49USM 14.7456 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49USM-FF5F18-20.000MHZ ILSI HC49USM 20 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF5F18-10.000MHZ ILSI HC49USM 10 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF5F18-8.000MHZ ILSI HC49USM 8 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49USM-FF5F18-7.3728MHZ ILSI HC49USM 7.3728 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF3F18-4.9152MHZ ILSI HC49US 4.9152 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF5F18-11.0592MHZ ILSI HC49US 11.0592 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF3F18-14.7456MHZ ILSI HC49US 14.7456 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF5F18-12.000MHZ ILSI HC49US 12 MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
HC49US-FF3F18-3.6864MHZ ILSI HC49US 3.6864 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-6.000MHZ ILSI HC49US 6 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
HC49US-FF3F18-4.000MHZ ILSI HC49US 4 MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
