艾尔西晶振,HC49US-FF5F18-24.000,领先全球的无人机晶振

频率：24MHZ

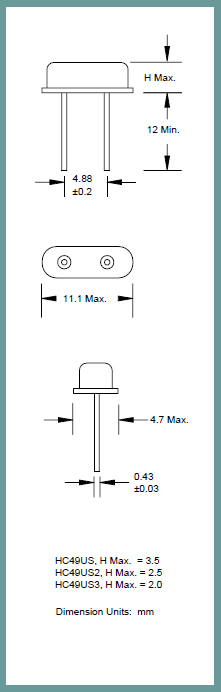

尺寸：11*4.7mm

艾尔西晶振,HC49US-FF5F18-24.000,领先全球的无人机晶振 ,美国艾尔西晶振公司，ILSI晶振注重所使用水晶、研磨砂的选择等；注重无源晶振研磨用工装如：游轮的设计及选择，从而使研磨晶振晶片在平面度、平行度、弯曲度都有很好的控制，最终使可研磨的石英晶振晶片的厚度越来越薄，贴片晶振晶片的频率越来越高，为公司在高频石英晶振的研发生产打下坚实基础，提升了晶振厂家的竞争力，使晶振厂家高频石英晶振的研发及生产领先于国内其它公司。插件49S焊接型晶振,低消耗金属面晶振,HC49US晶振，高品质晶振，进口晶振，艾尔西晶振，进口晶振，HC49US晶振，二脚晶振，插件晶振，欧美晶振，无源晶振，无人机晶振，电车充电枪晶振，石英晶体谐振器，工作温度-40~85°C，网络服务器晶振，存储卡晶振，无线局域网晶振，光纤通道晶振.

订购热线：0755-27837162

艾尔西晶振,HC49US-FF5F18-24.000,领先全球的无人机晶振 ,美国艾尔西晶振公司，ILSI晶振注重所使用水晶、研磨砂的选择等；注重无源晶振研磨用工装如：游轮的设计及选择，从而使研磨晶振晶片在平面度、平行度、弯曲度都有很好的控制，最终使可研磨的石英晶振晶片的厚度越来越薄，贴片晶振晶片的频率越来越高，为公司在高频石英晶振的研发生产打下坚实基础，提升了晶振厂家的竞争力，使晶振厂家高频石英晶振的研发及生产领先于国内其它公司。插件49S焊接型晶振,低消耗金属面晶振,HC49US晶振，高品质晶振，进口晶振，艾尔西晶振，进口晶振，HC49US晶振，二脚晶振，插件晶振，欧美晶振，无源晶振，无人机晶振，电车充电枪晶振，石英晶体谐振器，工作温度-40~85°C，网络服务器晶振，存储卡晶振，无线局域网晶振，光纤通道晶振.

艾尔西晶振,HC49US-FF5F18-24.000,领先全球的无人机晶振

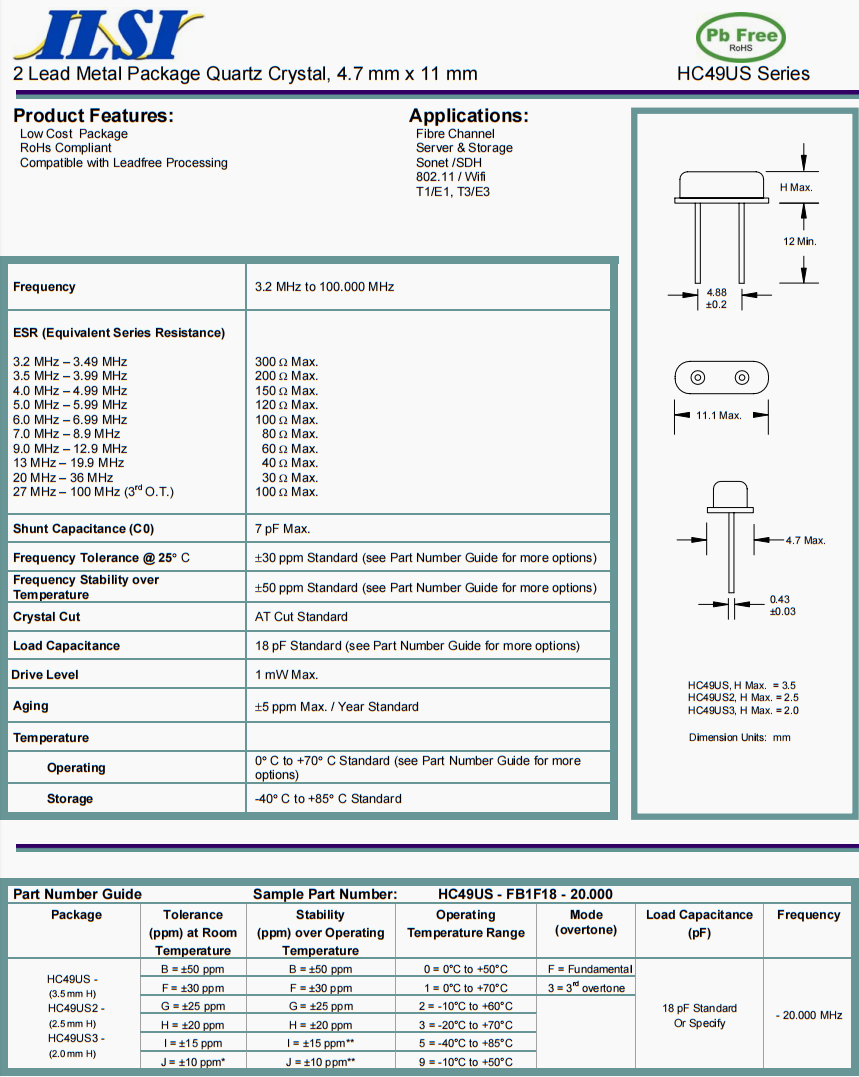

规格参数			数值
频率			24MHz
频率公差 (at +25°C)			± 30PPM
温度范围内的频率稳定性			± 30PPM
工作温度			-40°C to +85°C
保存温度			-40°C to +85°C
老化			±5ppm Per year
并联电容 (C0)			7 pF
负载电容 (CL)			18 pF
激励功率			1 mW Max
等效串联电阻(ESR)			40 Ω
晶体切割			AT Cut Standard

艾尔西晶振,HC49US-FF5F18-24.000,领先全球的无人机晶振

原厂编码	生产商品牌	型号	频率	频率稳定度	频率容差	负载电容	工作温度范围
HC49US-FF3F18-8.000MHZ	ILSI	HC49US	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-8.000MHZ	ILSI	HC49USM	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-3.6864MHZ	ILSI	HC49USM	3.6864 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX13-FF5F10-16.384MHZ	ILSI	ILCX13	16.384 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX13-FF5F10-12.000MHZ	ILSI	ILCX13	12 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
HC49US-FF3F18-4.0960MHZ	ILSI	HC49US	4.096 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
IXA16-HBFF12-25.000MHZ	ILSI	IXA16	25 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-16.000MHZ	ILSI	IXA16	16 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HF5F12-12.000 MHZ	ILSI	IXA16	12 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HBFF12-24.000MHZ	ILSI	IXA16	24 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA20-HF5F12-16.000MHZ	ILSI	IXA20	16 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA18-FBFF8-16.000MHZ	ILSI	IXA18	16 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
HC49USM-FF5F18-18.4320MHZ	ILSI	HC49USM	18.432 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX13-FF5F10-27.000MHZ	ILSI	ILCX13	27 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX13-FF5F10-20.000MHZ	ILSI	ILCX13	20 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-18.432MHZ	ILSI	IXA16	18.432 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA18-FBFF8-10.000 MHZ	ILSI	IXA18	10 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
IL3W-HX5F9-32.768KHZ	ILSI	IL3W	32.768 kHz	-	±20ppm	9pF	-40°C ~ 85°C
IL3X2-HX5F7- 32.768 KHZ	ILSI	IL3X2	32.768 kHz	-	±20ppm	7pF	-40°C ~ 85°C
HC49USM-FF3F18-11.0592MHZ	ILSI	HC49USM	11.0592 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-7.3728MHZ	ILSI	HC49USM	7.3728 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-20.000MHZ	ILSI	HC49USM	20 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
ILCX13-FF5F10-26.000MHZ	ILSI	ILCX13	26 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
HC49USM-FF3F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-14.7456MHZ	ILSI	HC49USM	14.7456 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-12.000MHZ	ILSI	HC49USM	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX19-FF5F10-27.120MHZ	ILSI	ILCX19	27.12 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-12.288MHZ	ILSI	IXA16	12.288 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-27.000MHZ	ILSI	IXA16	27 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-26.000MHZ	ILSI	IXA16	26 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA12-FBFF10-27.000MHZ	ILSI	IXA12	27 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA16-HF5F12-18.432MHZ	ILSI	IXA16	18.432 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA12-FBFF10-32.000MHZ	ILSI	IXA12	32 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA16-HF5F12-28.63636MHZ	ILSI	IXA16	28.63636 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-20.000MHZ	ILSI	IXA16	20 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-12.288MHZ	ILSI	IXA16	12.288 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-26.000MHZ	ILSI	IXA16	26 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA12-FBFF10-27.120MHZ	ILSI	IXA12	27.12 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA12-FBFF10-24.576 MHZ	ILSI	IXA12	24.576 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA10-HF5F10-26.000MHZ	ILSI	IXA10	26 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA10-HF5F10-27.000MHZ	ILSI	IXA10	27 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA10-FBFF10-26.000MHZ	ILSI	IXA10	26 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ILCX13-FF5F10-25.000MHZ	ILSI	ILCX13	25 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX19-FF5F10-54.000MHZ	ILSI	ILCX19	54 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-20.000MHZ	ILSI	IXA12	20 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-24.576MHZ	ILSI	IXA12	24.576 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-24.000MHZ	ILSI	IXA12	24 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-32.000MHZ	ILSI	IXA12	32 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-26.000MHZ	ILSI	IXA12	26 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-25.000MHZ	ILSI	IXA12	25 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-30.000MHZ	ILSI	IXA16	30 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-12.000MHZ	ILSI	IXA16	12 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-24.576MHZ	ILSI	IXA16	24.576 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA12-HF5F10-19.200MHZ	ILSI	IXA12	19.2 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-32.000MHZ	ILSI	IXA16	32 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-13.560MHZ	ILSI	IXA16	13.56 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
ILCX19-IH5F8-48.000MHZ	ILSI	ILCX19	48 MHz	±20ppm	±15ppm	8pF	-40°C ~ 85°C
IXA16-HF5F12-30.000MHZ	ILSI	IXA16	30 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-24.576MHZ	ILSI	IXA16	24.576 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-13.560MHZ	ILSI	IXA16	13.56 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA10-HF5F10-24.000MHZ	ILSI	IXA10	24 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HF5F12-25.000MHZ	ILSI	IXA16	25 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
