BQCSQ-32K76F–YCBHT,BQCSQ晶振,数据通信领域晶振,1610贴片晶振

频率：32.768kHz

尺寸：1610mm

BQCSQ-32K76F–YCBHT,BQCSQ晶振,数据通信领域晶振,1610贴片晶振,Bliley晶振BQCSQ系进口晶振不仅覆盖32.768kHz低频段,还延伸至10MHz~50MHz高频范围,专为数据通信设备的高速信号处理场景设计.以BQCSQ-32K76F–YCBHT为基础衍生的高频型号,采用与1610封装一致的小型化设计,可灵活集成于光模块,5G基带单元等紧凑设备中.该系列晶振具备低相位噪声特性(@1kHz偏移:-115dBc/Hz),能减少数据传输中的信号干扰,降低误码率,提升通信链路稳定性.同时,支持12pF,20pF等多规格负载电容,与主流通信芯片(如高通,华为海思基带芯片)高度兼容,无需调整电路即可快速适配,缩短数据通信设备研发周期.

订购热线：0755-27837162

JLXNR-4

JLX-1

BQCSQ-32K76F–YCBHT,BQCSQ晶振,数据通信领域晶振,1610贴片晶振

作为Bliley百利晶振数据通信领域研发的核心晶振,BQCSQ-32K76F–YCBHT以32.768kHz标准频率,为路由器,交换机等数据通信设备的实时时钟(RTC)系统提供精准时序支撑.其采用1610贴片封装(1.6mm×1.0mm),是目前小型化封装的代表性产品,仅占传统封装1/3的PCB空间,完美适配数据通信设备高密度电路板布局需求.超低工作电流≤1.2μA,能显著降低设备整体功耗,尤其适配需长期运行的通信基站备用时钟模块.同时,频率公差控制在±15PPM(常温),在-40℃~+85℃工业级温度范围内稳定输出,即便在通信机房温度波动环境下,仍能保障设备时间同步与日志记录的精准性.

JLXNR-2

JLX-2

BQCSQ-32K76F–YCBHT,BQCSQ晶振,数据通信领域晶振,1610贴片晶振

原厂型号 Original model ：	BQCSQ-32K76F–YCBHT	品牌 brand ：	Bliley晶振
品牌 brand ：	Bliley石英晶振	ESR（等效串联电阻） Resistance)	-
型号名称 Model name：	BQCSQ	温度 Operating Temperature	-40°C to +85?C
Type 系列：	kHz Crystal	脚位 Termination：	2 pad
频率 frequency ：	32.768kHz	封装类型 Package Type：	2-SMD
Frequency Stability频率稳定度	-	高度 Package Height：	0.5mm
frequency tolerance频率容差	±10ppm	最小包装数 MPQ ：	3000
Load capacitance 负载电容	9pF	包装 Packaging：	Tape and Reel

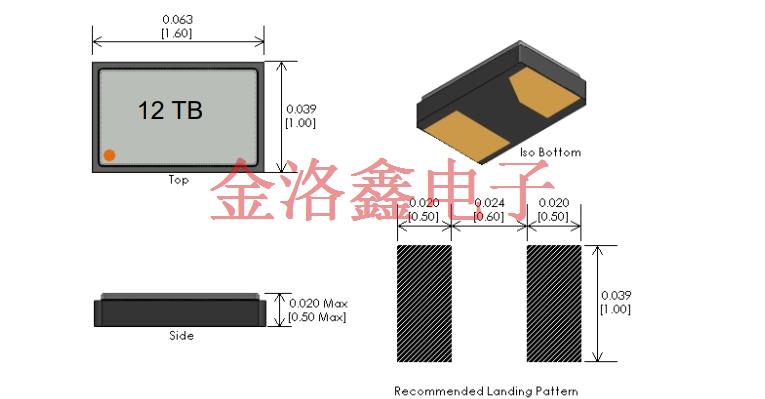

Size / Dimension 尺寸	1.6x1.0mm	安装方式 Mounting Style：	Surface Mount

JLX-3

BQCSQ-32K76F–YCBHT,BQCSQ晶振,数据通信领域晶振,1610贴片晶振

BQCSQ-

BQCSQ-32K76F–YCBHT,BQCSQ晶振,数据通信领域晶振,1610贴片晶振
