5G无线模块专用晶振SG3225EAN编码X1G004251002100

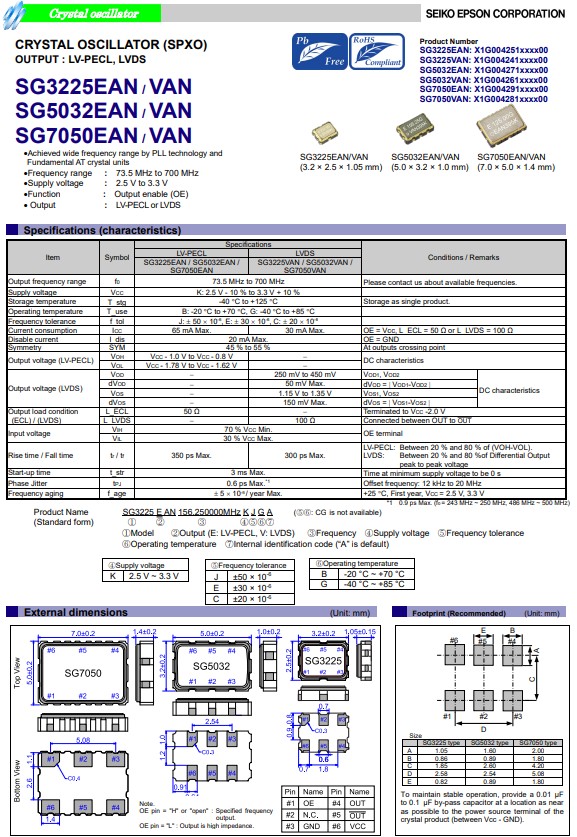

爱普生晶振SG3225EAN差分晶振通过使用PLL技术和AT晶体单元来实现宽频率范围,为用户提供73.5MHZ至700MHZ高频,可选任一频点.具有低电流,低电源电压可达到低值1V,这对于普通贴片晶振而言是做不到的,此款差分晶振的工作电压范围在2.5V至3.3V.差分晶振具有LVDS,HCSL和LV-PECL三态输出功能,爱普生SG3225EAN差分晶振就是具有LV-PECL输出功能的一款差分石英晶体振荡器.
SG3225EAN晶振采用3.2x2.5mm封装,具有6个脚位贴片晶振,耐高温储存温度可达-40℃~+125℃范围,工作温度范围-40℃~85℃.低老化的特点±5x10-6/year Max.差分晶振在产品中使用具有高可靠性.差分晶振的精度值（PPM）可精确到±10PM,±20PM,±30PM,±50PM等.
SG3225EAN晶振采用3.2x2.5mm封装,具有6个脚位贴片晶振,耐高温储存温度可达-40℃~+125℃范围,工作温度范围-40℃~85℃.低老化的特点±5x10-6/year Max.差分晶振在产品中使用具有高可靠性.差分晶振的精度值（PPM）可精确到±10PM,±20PM,±30PM,±50PM等.
5G无线模块专用晶振SG3225EAN编码X1G004251002100
                                                                         石英晶体振荡器
|
 型号
|
 频率
|
 尺寸
|
 输出波
|
 电源电压
|
 工作温度
|
| X1G004251000100 | SG3225EAN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251000200 | SG3225EAN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004251000900 | SG3225EAN | 212.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251001200 | SG3225EAN | 75.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251001500 | SG3225EAN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002000 | SG3225EAN | 700.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002100 | SG3225EAN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002400 | SG3225EAN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002600 | SG3225EAN | 400.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251002800 | SG3225EAN | 212.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251003200 | SG3225EAN | 150.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251003400 | SG3225EAN | 156.250000MHz | 3.20x2.50x1.20mm | 2.250 to 3.630 V | -40 to 85 °C | |
| X1G004251003500 | SG3225EAN | 312.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251006200 | SG3225EAN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004251010000 | SG3225EAN | 114.285000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012100 | SG3225EAN | 161.132812MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012200 | SG3225EAN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004251012300 | SG3225EAN | 133.330000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012400 | SG3225EAN | 322.562500MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012500 | SG3225EAN | 133.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012600 | SG3225EAN | 322.265625MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012700 | SG3225EAN | 425.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251012800 | SG3225EAN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251013100 | SG3225EAN | 360.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004251013200 | SG3225EAN | 644.531200MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251013800 | SG3225EAN | 644.531250MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251013900 | SG3225EAN | 121.500000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004251014000 | SG3225EAN | 650.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
随着无线网络,智能家电,4G,5G网络,自动驾驶汽车等高科技的发展,对于石英晶体振荡器的使用性能也要求越来越高.比如现在我们所依赖的网络,单从速度上就不能满足我们的需求了,而高精度SG3225EAN晶振就是为千兆光纤通信而生,为了我们更好的使用高速网络,为满足网络设备对高标准参考时钟的需求.
