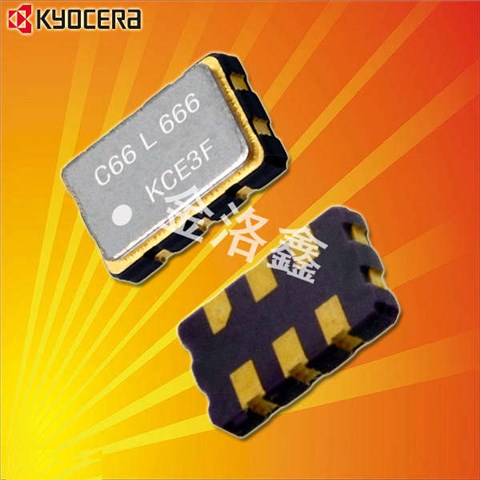

KC5032P120.000H26E00|差分晶体振荡器|日本京瓷石英晶振

KC5032P120.000H26E00|差分晶体振荡器|日本京瓷石英晶振KC5032P120.000H26E00|差分晶体振荡器|日本京瓷石英晶振

产品简介

KC5032P120.000H26E00|差分晶体振荡器|日本京瓷石英晶振,KC5032P-H2有源晶振,KC5032P120.000H26E00晶振,差分晶体振荡器,日本京瓷石英晶振,5032mm进口晶振,频率120MHz,电压2.5V,频率稳定性50ppm,工作温度-40~105°C,耐高温晶振,无线路由器晶振,便携式多媒体设备晶振,网络系统晶振,智能家电应用晶振.

产品详情

JC-1KC5032P120.000H26E00|差分晶体振荡器|日本京瓷石英晶振,KC5032P-H2有源晶振,KC5032P120.000H26E00晶振,差分晶体振荡器,日本京瓷石英晶振,5032mm进口晶振,频率120MHz,电压2.5V,频率稳定性50ppm,工作温度-40~105°C,耐高温晶振,无线路由器晶振,便携式多媒体设备晶振,网络系统晶振,智能家电应用晶振.

KC5032P120.000H26E00|差分晶体振荡器|日本京瓷石英晶振特点：

●小型陶瓷封装类型

●由于接缝密封的高可靠性

●LVDS输出

●电源电压VCC=2.5V

●±25×10 - 6可以应对

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

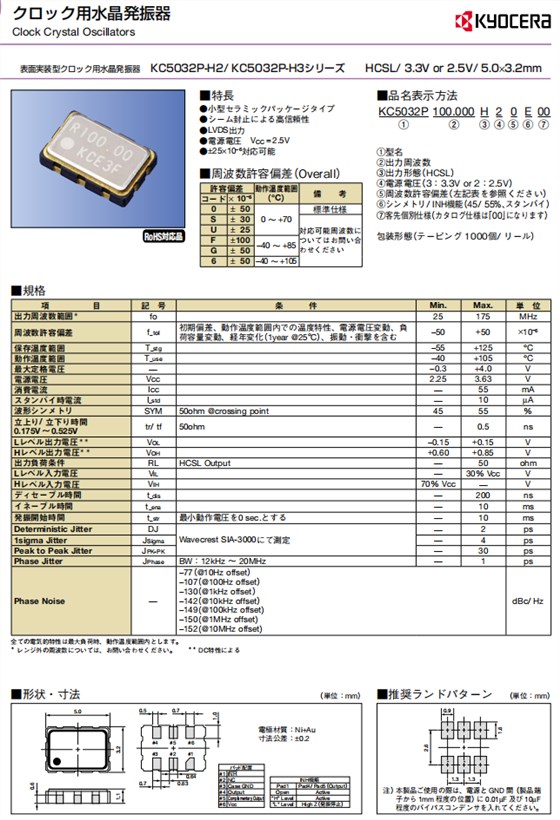

KC5032P120.000H26E00|差分晶体振荡器|日本京瓷石英晶振 参数表

项目 符号 规格说明 条件
额定频率 f_nom 120MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 2.5V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +105℃
频率公差（标准） f_tol ±50ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗
ICC
55mA Max
待机电流
I_std
10μAMax
对称性（占空比） SYM 45%~55%
50ohm @crossing point
H电平输出电压 VOH 0.6V min

0.85Vmax


L电平输出电压 VOL ±0.15V max
输出负载 RL 50Ω
HCSL Output
输入电压 VIH 70%Vcc Min OE terminal
VIL 30%Vcc Max
上升下降时间 tr/tf 0.5ns Max
100ohm
起始时间 t str 10ms Max
最小工作电压为0sec . 10ms
确定性抖动 DJ 2ps Max Measured with Wavecrest SIA-3000
1 Sigma 抖动
JSigma
4ps Max
峰对峰抖动
JPK-PK
30ps Max
相位抖动 JPhase
 1ps Max

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

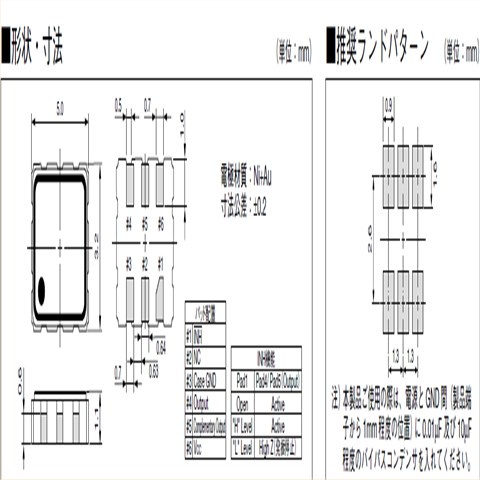

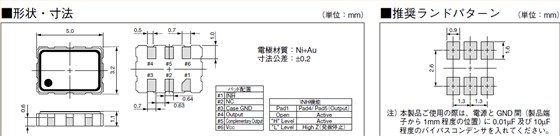

KC5032P120.000H26E00|差分晶体振荡器|日本京瓷石英晶振尺寸图

KC5032P_H2_H3_5.0_3.2 OSC
