NSC5343A,NP3225SB汽车影音专用晶振,LVDS输出差分晶振

NSC5343A,NP3225SB汽车影音专用晶振,LVDS输出差分晶振NSC5343A,NP3225SB汽车影音专用晶振,LVDS输出差分晶振

产品简介

NSC5343A,NP3225SB汽车影音专用晶振,LVDS输出差分晶振  ,NDK进口晶振,NSC5343A有源晶振,NP3225SB石英晶体振荡器,汽车影音专用晶振,LVDS输出差分晶振,频率100MHz,电压2.5V,频率稳定性50ppm,工作温度-40~85°C,车载CDD相机晶振,存储器晶振,图像处理晶振,卫星通信地面设备晶振,数字地面电视广播设备晶振,车载电脑晶振.

产品详情

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振NSC5343A,NP3225SB汽车影音专用晶振,LVDS输出差分晶振,NDK进口晶振,NSC5343A有源晶振,NP3225SB石英晶体振荡器,汽车影音专用晶振,LVDS输出差分晶振,频率100MHz,电压2.5V,频率稳定性50ppm,工作温度-40~85°C,车载CDD相机晶振,存储器晶振,图像处理晶振,卫星通信地面设备晶振,数字地面电视广播设备晶振,车载电脑晶振.

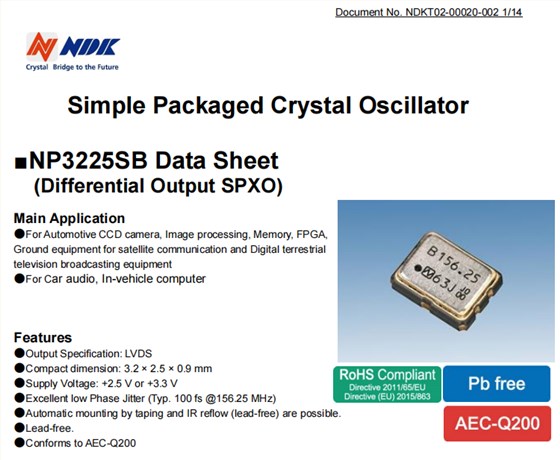

NSC5343A,NP3225SB汽车影音专用晶振,LVDS输出差分晶振特点：

●输出规格:LVDS

●紧凑尺寸:3.2 × 2.5 × 0.9 mm
●电源电压:+2.5 V或+3.3 V
●出色的低相位抖动(类型:100 fs @156.25 MHz)
●自动安装胶带和红外回流(无铅)是可能的
●无铅
●符合AEC-Q200标准

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

NSC5343A,NP3225SB汽车影音专用晶振,LVDS输出差分晶振 参数表

项目 符号 数值 注意
频率 fnom 100MHz
电压 VCC +2.5 V
电压消耗运行 ICC 40mA max at 25 °C
输出水平 - LVDS
负载 RL 100Ω Out-Complementary Out
工作温度 Topr -40°C to +85°C
频率公差 Δf/fnom ±50ppm *1
差分输出电压 VOL

VCC- 1.81Vmin

VCC- 1.62Vmax

-40 to +85 °C
VOH

VCC- 1.025Vmin

VCC-0.88Vmax

上升下降时间 tr/tf 1ns max 20 % to 80 % waveform
对称 SYM 45%min -55%max at 50 % Waveform
启动时间 tsu 10ms max
相位抖动 tpj 1ps *2
输出波形 - Square wave
储存温度 T_stg -55°Cto+125°C

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

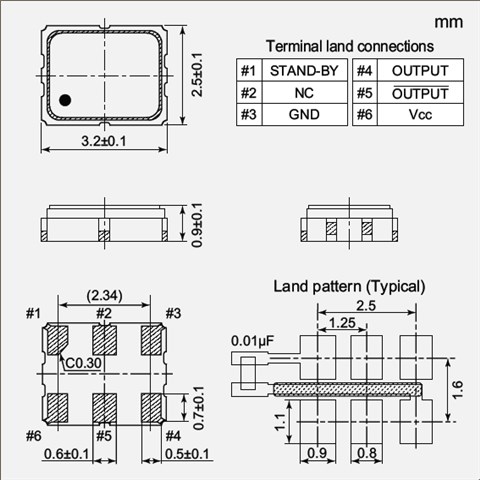

NSC5343A,NP3225SB汽车影音专用晶振,LVDS输出差分晶振尺寸图

NP3225SB_3.2_2.5 SPXO

型号 频率[MHz] 规格编号 尺寸(LxW)[mm] 输出方式 工作温度[℃] 保存温度[℃] 电源电压[V]
NP3225SB 50MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 100MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 125MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 135MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 148MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 156.25MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 200MHZ NSC5236A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 50MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 100MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 125MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 135MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 148MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 156.25MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 200MHZ NSC5236B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 50MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 100MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 125MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 135MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 148MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 156.25MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 200MHZ NSC5238A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 50MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 100MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 125MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 135MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 148MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 156.25MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 200MHZ NSC5238B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SC 100MHZ NSC5082A 3.2x2.5 HCSL -40?+85 -55?+125 +2.5±0.125
NP3225SC 156.25MHZ NSC5082A 3.2x2.5 HCSL -40?+85 -55?+125 +2.5±0.125
NP3225SC 100MHZ NSC5345B 3.2x2.5 HCSL -40?+85 -55?+125 +3.3±0.33
NP3225SC 156.25MHZ NSC5345B 3.2x2.5 HCSL -40?+85 -55?+125 +3.3±0.33
NP3225SC 100MHZ NSC5191A 3.2x2.5 HCSL -40?+105 -55?+125 +2.5±0.125
NP3225SC 156.25MHZ NSC5191A 3.2x2.5 HCSL -40?+105 -55?+125 +2.5±0.125
NP3225SC 100MHZ NSC5346B 3.2x2.5 HCSL -40?+105 -55?+125 +3.3±0.33
NP3225SC 156.25MHZ NSC5346B 3.2x2.5 HCSL -40?+105 -55?+125 +3.3±0.33
NP5032SA 100MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 125MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 100MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 125MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 100MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 125MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SB 100MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 125MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 100MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 125MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 148.5MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 156.25MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 100MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 125MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 100MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 125MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 148.5MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 156.25MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 100MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 125MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 100MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SB 125MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SB 148.5MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SB 156.25MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SC 100MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 102.564MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 125MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 148.5MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 156.25MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 100MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 102.564MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 125MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 148.5MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 156.25MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 100MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 102.564MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 125MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 148.5MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 156.25MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 100MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 102.564MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 125MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 148.5MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 156.25MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 100MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 102.564MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 125MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 148.5MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 156.25MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 100MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33
NP5032SC 102.564MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33
NP5032SC 125MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33
NP5032SC 148.5MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33
NP5032SC 156.25MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33

NP3225SB
