403C11A32M00000-3225mm-10ppm-32M-10pf

403C11A32M00000-3225mm-10ppm-32M-10pf,403C11A32M00000,美国西迪斯晶振,3225mm石英晶振,精度10ppm,频率32M,负载10pf,SMD进口晶振,无源晶振,无线路由器晶振,蓝牙音响晶振,笔记本电脑晶振,便携式设备晶振.

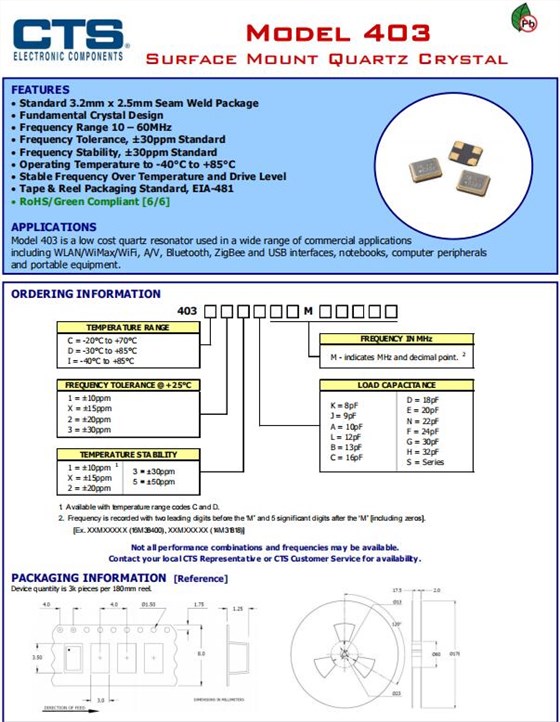

4403C11A32M00000-3225mm-10ppm-32M-10pf 特征

1.标准3.2mm x 2.5mm焊缝封装基本晶体设计

2.频率范围10 - 60MHz, 频率公差 ±30ppm标准, 频率稳定性±30ppm标准 ,工作温度-40°C~+85°C

3.胶带和卷轴包装标准, EIA-481符合RoHS/绿色标准

4.402型是一种低成本的石英谐振器,广泛用于商业应用,包括WLAN/WiMax/WiFi, A/V，蓝牙，ZigBee和USB接口,笔记本电脑,电脑外围设备,便携式设备。

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

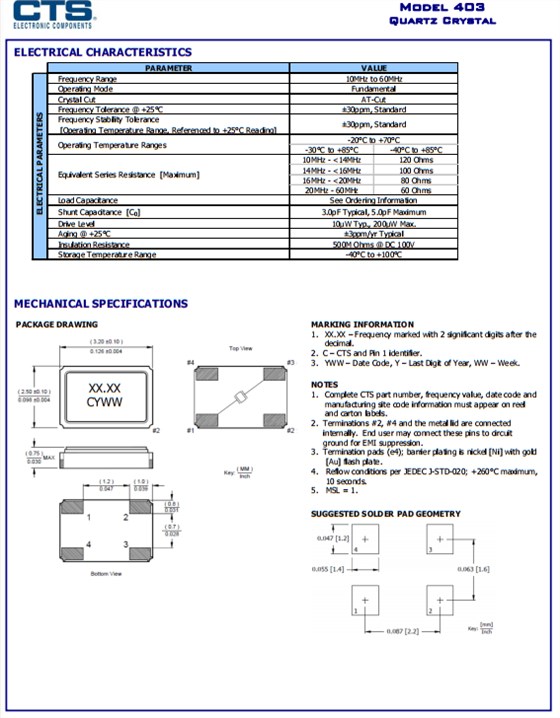

403C11A32M00000-3225mm-10ppm-32M-10pf参数

项目			数值
频率			32MHz
操作模式			Fundamental
晶体切割			AT-Cut
工作温度			-20°Cto+70°C
保存温度			-40°Cto+100°C
频率公差@ +25°C			±30PPM
工作温度范围内的频率稳定性( ref. to +25°C)			±30PPM
等效串联电阻(R1)			60Ω
并联电容(C0)			3.0pF Typical, 5.0pF Maximum
负载电容 (CL)			10pF
激励功率			200μW Max
老化@ +25°C			±3ppm/yr Typical
绝缘电阻			500M Ohms @ DC 100V

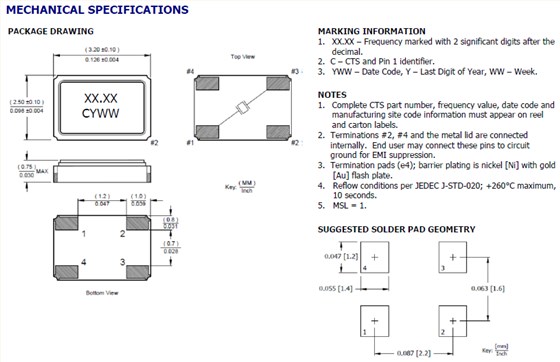

403C11A32M00000-3225mm-10ppm-32M-10pf尺寸图

原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	ESR电阻	工作温度
403C11A32M00000	CTS 晶振	403	32MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C35D25M00000	CTS 晶振	403	25MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D12M00000	CTS 晶振	403	12MHz	±50ppm	±30ppm	18pF	150 Ohm	-20°C ~ 70°C
403C35D24M00000	CTS 晶振	403	24MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35E13M00000	CTS 晶振	403	13MHz	±50ppm	±30ppm	20pF	150 Ohm	-20°C ~ 70°C
403C35E27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
403C11A16M00000	CTS 晶振	403	16MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
403C11A24M00000	CTS 晶振	403	24MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A16M80000	CTS 晶振	403	16.8MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
403C35D22M11840	CTS 晶振	403	22.1184MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D28M37500	CTS 晶振	403	28.375MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D28M63636	CTS 晶振	403	28.63636MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35E12M00000	CTS 晶振	403	12MHz	±50ppm	±30ppm	20pF	150 Ohm	-20°C ~ 70°C
403C23E26M69000	CTS 晶振	403	26.69MHz	±30ppm	±20ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35E16M00000	CTS 晶振	403	16MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
403I35D12M00000	CTS 晶振	403	12MHz	±50ppm	±30ppm	18pF	150 Ohm	-40°C ~ 85°C
403I35D16M00000	CTS 晶振	403	16MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
403I35D24M00000	CTS 晶振	403	24MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D30M00000	CTS 晶振	403	30MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35E16M00000	CTS 晶振	403	16MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
403I35E26M00000	CTS 晶振	403	26MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
403C11E32M00000	CTS 晶振	403	32MHz	±10ppm	±10ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35E26M00000	CTS 晶振	403	26MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35E26M00000	CTS 晶振	403	26MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35E26M00000	CTS 晶振	403	26MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35D48M00000	CTS 晶振	403	48MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D48M00000	CTS 晶振	403	48MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D48M00000	CTS 晶振	403	48MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C11E16M00000	CTS 晶振	403	16MHz	±10ppm	±10ppm	20pF	80 Ohm	-20°C ~ 70°C
403C11E16M00000	CTS 晶振	403	16MHz	±10ppm	±10ppm	20pF	80 Ohm	-20°C ~ 70°C
403C11E16M00000	CTS 晶振	403	16MHz	±10ppm	±10ppm	20pF	80 Ohm	-20°C ~ 70°C
403C11A40M00000	CTS 晶振	403	40MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A40M00000	CTS 晶振	403	40MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A40M00000	CTS 晶振	403	40MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C35D30M00000	CTS 晶振	403	30MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D30M00000	CTS 晶振	403	30MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D30M00000	CTS 晶振	403	30MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C11A20M00000	CTS 晶振	403	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A20M00000	CTS 晶振	403	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A20M00000	CTS 晶振	403	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403I35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D18M43200	CTS 晶振	403	18.432MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
403I35D18M43200	CTS 晶振	403	18.432MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
403I35D18M43200	CTS 晶振	403	18.432MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
403I35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
