NSC5082A石英振荡器-日本NDK晶振HCSL-汽车导航系统专用晶振,日本NDK晶振,进口有源晶振,NP3225SC差分晶振,NSC5082A石英振荡器,HCSL输出晶振,汽车导航系统专用晶振,频率156.25MHz,工作温度-40~85°C,电压2.5V,频率稳定性50ppm,无铅环保晶振,计算机晶振,GPS 晶振,娱乐设备晶振,车载音响晶振,车载电脑晶振.
NSC5082A石英振荡器-日本NDK晶振HCSL-汽车导航系统专用晶振特点：
●输出规格:HCSL
●紧凑尺寸:3.2 × 2.5 × 0.9 mm
NSC5082A石英振荡器-日本NDK晶振HCSL-汽车导航系统专用晶振 参数表
| 项目 | 符号 | 数值 | 注意 | ||
| 频率 | fnom | 156.25MHz | |||
| 电压 | VCC | +2.5 V | |||
| 电压消耗运行 | ICC | 50mA max | at 25 °C | ||
| 输出水平 | - | HCSL | |||
| 负载 | RL | 50Ω | Out-Complementary Out | ||
| 工作温度 | Topr | -40°C to +85°C | |||
| 频率公差 | Δf/fnom | ±50ppm | *1 | ||
| 差分输出电压 | VOL |
±150mV
|
|
||
| VOH |
+580mV min +850mV max |
||||
| 上升下降时间 | tr/tf | 0.5ns max | 0.175 to 0.525 V | ||
| 对称 | SYM | 45%min -55%max | at 50 % Waveform | ||
| 启动时间 | tsu | 10ms max | |||
| 相位抖动 | tpj | 1ps | *2 | ||
| 输出波形 | - | Square wave | |||
| 储存温度 | T_stg | -55°Cto+125°C | |||

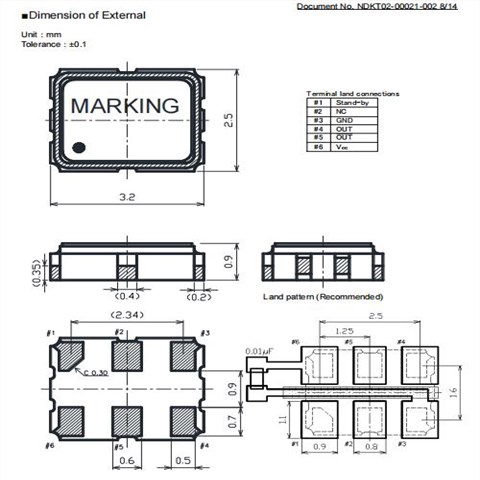

NSC5082A石英振荡器-日本NDK晶振HCSL-汽车导航系统专用晶振尺寸图
| 型号 | 频率[MHz] | 规格编号 | 尺寸(LxW)[mm] | 输出方式 | 工作温度[℃] | 保存温度[℃] | 电源电压[V] |
| NP3225SC | 100MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 100MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 100MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 125MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 156.25MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 100MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 125MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 156.25MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 100MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 156.25MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBD | 100MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBD | 156.25MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SCD | 100MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SCD | 156.25MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBA | 100MHZ | NSC5391A | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5 ± 0.125 |
| NP3225SBA | 156.25MHZ | NSC5391A | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5 ± 0.125 |
| NP3225SBA | 100MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SBA | 125MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SBA | 156.25MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SCA | 100MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SCA | 125MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SCA | 156.25MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
