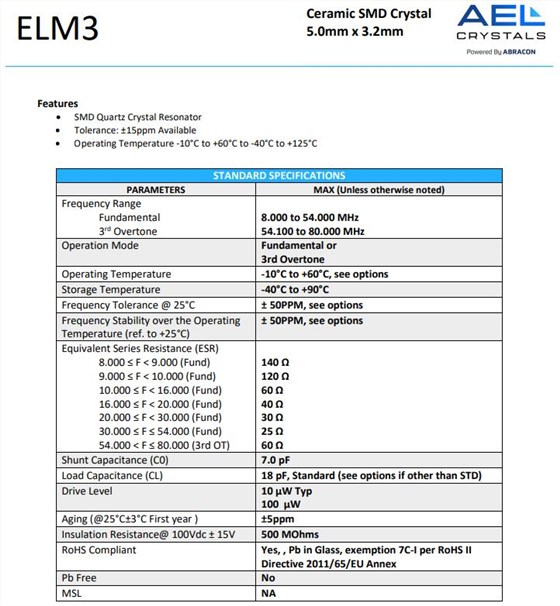

ELM3-36.000MHz-18-R40-D4H-T,AEL石英晶体谐振器,5032mm 参数表
| 规格参数 | MAX(除非有特殊说明) | |||||||
| 频率 | 36MHz | |||||||
| 操作方式 | Fundamental | |||||||
| 工作温度 | -40Cto+85°C | |||||||
| 保存温度 | -40°Cto+90°C | |||||||
| 频率公差 @ 25°C | ±30PPM | |||||||
| 频率稳定性(ref. to +25°C) |
±50PPM |
|||||||
| 等效串联电阻(ESR) | 25 Ω | |||||||
| 并联电容(C0) | 7pF | |||||||
| 负载电容 (CL) | 18pF | |||||||
| 激励功率 |
10μWTyp 100μW |
|||||||
| 老化性(@25°C±3°C First year) | ±5ppm | |||||||
| 绝缘电阻@ 100Vdc ± 15V | 500MOhms | |||||||
| 通过无铅认证 | Yes | |||||||
| 无铅 | N0 | |||||||
| MSL | NA | |||||||

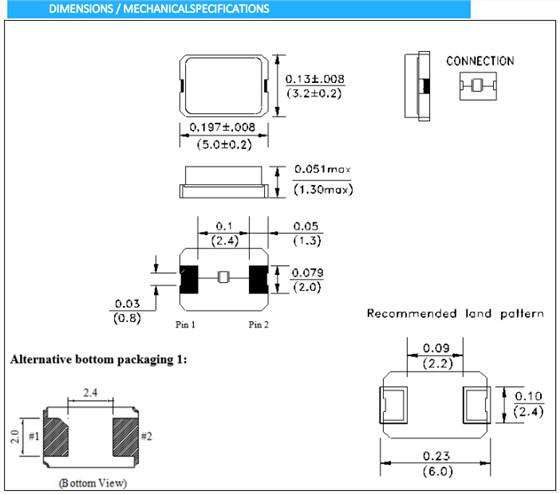

ELM3-36.000MHz-18-R40-D4H-T,AEL石英晶体谐振器,5032mm 尺寸图
| AEL原厂编码 | 品牌 | 型号 | 工作温度 | 频率 | 频率稳定度 | 频率公差 | 负载 |
| ELM3-26.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 26 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-27.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 27 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-28.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 28 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-29.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 29 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-30.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 30 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-31.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 31 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-32.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 32 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-33.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 33 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-34.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 34 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-35.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 35 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-36.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 36 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-37.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 37 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-38.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 38 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-39.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 39 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-40.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 40 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-25.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 30 pF |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 14 MHz | ±50ppm | ±50ppm | 30 pF |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | ELM3 | -20°C ~ 70°C | 8.057 MHz | ±30ppm | ±30ppm | 18 pF |
