XRCLK10M000F1QA8J1-10.000MHz-8pF,XRCLK10M000F1QA8J1晶振,频率10.000MHz,负载电容8pF,高可靠性晶振,5032mm晶振,数字通信设备晶振,四脚石英贴片晶振,智能手机晶振,平板电脑晶振,无线路由器晶振
XRCLK10M000F1QA8J1-10.000MHz-8pF
| 型号 | TSS-5032A |
| 频率 | 10.0000MHz |
| 频率公差 | ±10ppm max.(25±3℃) |
| 工作温度范围 | -30℃ to 85℃ |
| 频率温度特性 | ±15ppm max. |
| 频率老化 | ±3ppm max./year |
| 清洗 | Notavailable |
| 负载电容量 | 8pF |
| 等效串联电阻(max.) | 80Ω |
| 驱动电平(max.) | 60μW |
| 形状 | SMD |

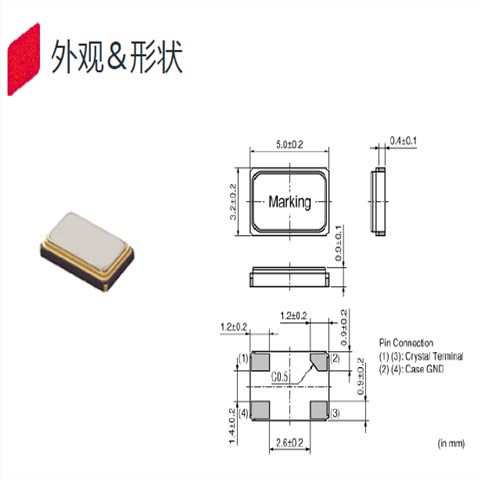

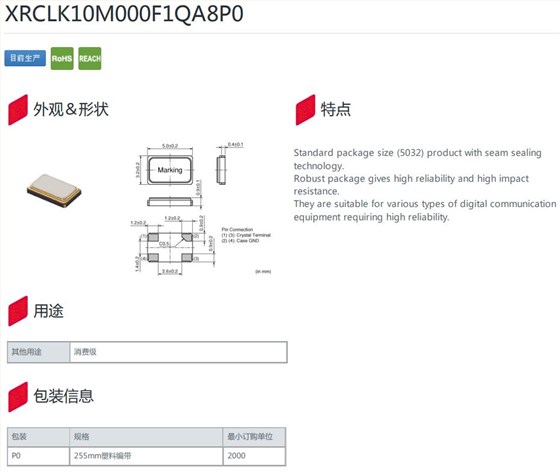

- ①标准包装尺寸(5032)产品与接缝密封技术。
- ②坚固的封装保证了高可靠性和高冲击力阻力。
- ③适用于各种类型的数字通信和可靠性要求高的设备。
XRCLK10M000F1QA8J1-10.000MHz-8pF
| 原厂编码 | 型号 | 频率 | 频率公差 | 频率温度特性 | 负载电容量 |
| XRCLK10M000F1QA8J1 | TSS-5032A | 10.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK11M000F1QA8P0 | TSS-5032A | 11.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK12M000F1QA6J1 | TSS-5032A | 12.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK13M000F1QA6P0 | TSS-5032A | 13.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK14M745F1QB6J1 | TSS-5032A | 14.7456MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK15M000F1QB6P0 | TSS-5032A | 15.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK16M000F1QA7J1 | TSS-5032A | 16.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK17M000F1QA7P0 | TSS-5032A | 17.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK21M250F1QA8J1 | TSS-5032A | 21.2500MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK18M250F1QA8P0 | TSS-5032A | 18.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK19M000F1QA0J1 | TSS-5032A | 19.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK20M000F1QA0J1 | TSS-5032A | 20.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK21M000F1QA0J1 | TSS-5032A | 21.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK22M000F1QA0J1 | TSS-5032A | 22.0000MHz | ±10ppm max | ±15ppm max. | 8pF |
| XRCLK23M000F1QA0J1 | TSS-5032A | 23.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK24M000F1QA0J1 | TSS-5032A | 24.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK52M000F1QA0P0 | TSS-5032A | 52.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
