无人驾驶汽车应用晶振TSX-3225编码X1E000021001916
近几年以来，无人产品推出了太多的产品，有无人超市，无人机，无人售货机，无人驾驶汽车等多种科技在高速的发展着，科技的发展带动电子元器件的发展电子元器件-“晶振”为现代的科技带来了巨大的贡献，用小小的身体发挥着大大的能量。

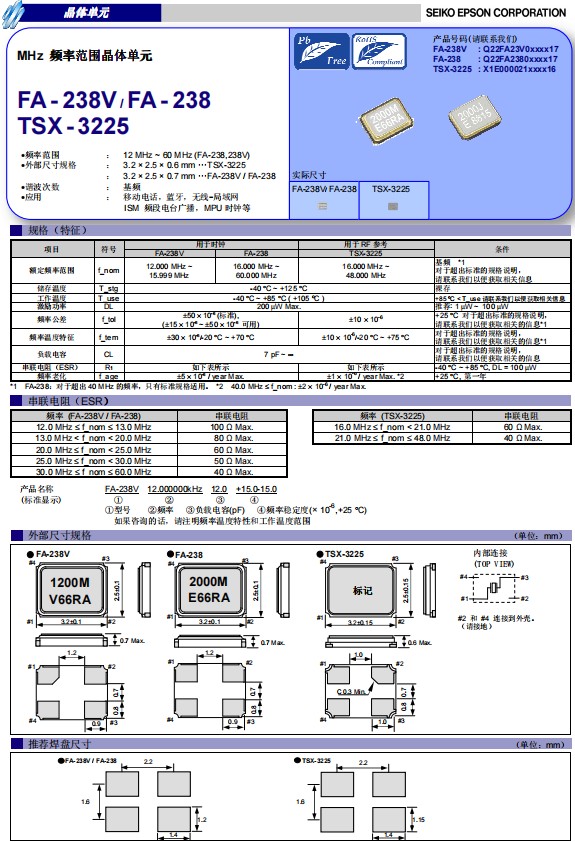

爱普生晶振TSX-3225是一款小体积尺寸3.2x2.5mm无源晶振，石英晶体谐振器，四脚贴片晶振，频率范围:16MHz至48MHz，工作温度范围:-40℃至+85℃/+105℃，具有超小型，轻薄型，耐热及耐环境特性，适用于无人驾驶汽车，车载电子，智能手机，移动电话，无线蓝牙，平板电脑，无线局域网，ISM频段电台广播，MPU时钟等。
无人驾驶汽车应用晶振TSX-3225编码X1E000021001916
            爱普生晶振
|
   尺寸
|
   型号
|
   频率
|
   负载
|
   精度
|
         频率公差
|
   工作温度
|
| X1E000021001916 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 9pF | +/-10ppm | +/-9ppm | -20to+75°C |
| X1E000021004716 | 3.2x2.5x0.6mm | TSX-3225 | 20.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+105°C |
| X1E000021004816 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+105°C |
| X1E000021011116 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011216 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011316 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011416 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011516 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011616 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021011716 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021011816 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021011916 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012016 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 16pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012116 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012216 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012316 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012416 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012516 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012616 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012716 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012816 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012916 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021013016 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 16pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021013116 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013216 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013316 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013416 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013516 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013616 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021013716 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021013816 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014016 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 16pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014116 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014216 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014316 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014416 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014516 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014616 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014716 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014816 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014916 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015016 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 16pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015116 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015216 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015316 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015416 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015516 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015616 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015716 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015816 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015916 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021016116 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016216 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016316 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016416 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016516 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016616 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021016716 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
无人驾驶汽车应用晶振TSX-3225编码X1E000021001916
3225mm体积贴片晶振适用于汽车电子领堿的表面贴片型石英晶振，该产品已被确定的高信赖性最适合用于汽车电子部件晶体在极端严酷的环境条件下也能发挥稳定的起振特性。TSX-3225晶振本身具有耐热，耐振，耐冲击等优良的耐环境特性，满足无铅焊接的髙温回流温度曲线要求符合AEC-Q200标准。此款晶振属于车规级别晶振，多用于汽车中车载导航设备、安全设备、ADAS、导航仪等领域。
