ConnorWinfield旗下CWX8xx系列型号是质量的最佳保证
ConnorWinfield晶振的功能是为系统提供基本的时钟信号，通常一个系统共用一个晶振，便于各部分保持同步。有些通讯系统的基频和射频使用不同的晶振，不同的规格封装延伸很多的频点等不同的参数，而通过电子调整频率的方法保持同步，在我们日常生活中也离不开贴片晶振.时钟振荡器是利用了晶体的压电效应制造的,当在晶片的两面上加交变电压时，晶片会反复的机械变形而产生振动，而这种机械振动又会反过来产生交变电压。

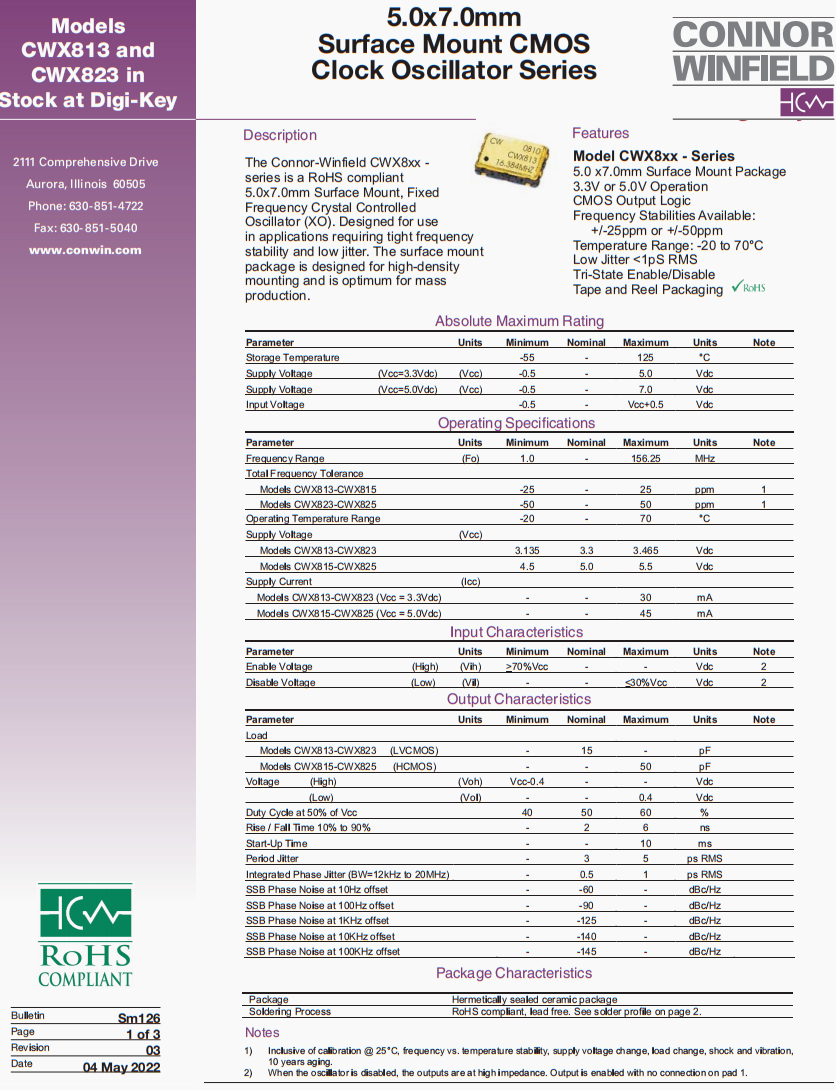

ConnorWinfield康纳温菲尔德CWX8xx系列型号，CWX813晶振，是一款小体积晶振尺寸5.0x7.0mm毫米表面贴装，SMD晶振，有源晶振，石英晶体振荡器(XO)。为使用而设计在要求严格频率的应用中，稳定性和低抖动。表面贴装CMOS时钟振荡器系列，封装设计用于高密度安装，是质量的最佳选择生产。符合RoHS标准 3.3V或5.0V工作电压，有源晶振CMOS输出逻辑，可用的频率稳定性: 低抖动< 1pS RMS 三态使能/禁用，胶带和卷轴包装 +/-25ppm或+/-50ppm，温度范围:-20至70摄氏度，被广泛用于通讯设备，无线网络，蓝牙模块，汽车电子，GPS定位系统，导航仪，医疗设备，数码电子，物联网等应用。
| 编码 | 生产商 | 型号 | 类型 | 频率 | 输出 | 电压 |
| CWX823-012.0M | Connor Winfield | CWX823 | XO (Standard) | 12 MHz | LVCMOS | 3.3V |
| CWX823-050.0M | Connor Winfield | CWX823 | XO (Standard) | 50 MHz | LVCMOS | 3.3V |
| CWX823-033.0M | Connor Winfield | CWX823 | XO (Standard) | 33 MHz | LVCMOS | 3.3V |
| CWX823-012.288M | Connor Winfield | CWX823 | XO (Standard) | 12.288 MHz | LVCMOS | 3.3V |
| CWX813-040.0M | Connor Winfield | CWX813 | XO (Standard) | 40 MHz | LVCMOS | 3.3V |
| CWX813-025.0M | Connor Winfield | CWX813 | XO (Standard) | 25 MHz | LVCMOS | 3.3V |
| CWX813-010.0M | Connor Winfield | CWX813 | XO (Standard) | 10 MHz | LVCMOS | 3.3V |
| CWX813-024.576M | Connor Winfield | CWX813 | XO (Standard) | 24.576 MHz | LVCMOS | 3.3V |
| CWX813-050.0M | Connor Winfield | CWX813 | XO (Standard) | 50 MHz | LVCMOS | 3.3V |
| CWX823-125.0M | Connor Winfield | CWX823 | XO (Standard) | 125 MHz | LVCMOS | 3.3V |
| CWX813-100.0M | Connor Winfield | CWX813 | XO (Standard) | 100 MHz | LVCMOS | 3.3V |
| CWX813-080.0M | Connor Winfield | CWX813 | XO (Standard) | 80 MHz | LVCMOS | 3.3V |
| D32G-016.368M | Connor Winfield | D32G | TCXO | 16.368 MHz | Clipped Sine Wave | 3.3V |
| PB223-156.25M | Connor Winfield | PB | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| TJ5F-050.0M | Connor Winfield | TJ5F | TCXO | 50 MHz | LVCMOS | 3.3V |
| TJ5F-040.0M | Connor Winfield | TJ5F | TCXO | 40 MHz | LVCMOS | 3.3V |
| TVJ6F-010.0M | Connor Winfield | DV75D | TCXO | 10 MHz | LVCMOS | 3.3V |
| TVJ6F-020.0M | Connor Winfield | DV75D | TCXO | 20 MHz | LVCMOS | 3.3V |
| TVJ6F-012.8M | Connor Winfield | DV75D | TCXO | 12.8 MHz | LVCMOS | 3.3V |
| D53G-020.0M | Connor Winfield | D53G | TCXO | 20 MHz | Clipped Sine Wave | 3.3V |
| TJ5E-025.0M | Connor Winfield | TJ5E | TCXO | 25 MHz | LVCMOS | 3.3V |
| TJ5E-027.0M | Connor Winfield | TJ5E | TCXO | 27 MHz | LVCMOS | 3.3V |
| P123-125.0M | Connor Winfield | P | XO (Standard) | 125 MHz | LVPECL | 3.3V |
| D75A-010.0M | Connor Winfield | D75A | TCXO | 10 MHz | LVCMOS | 3.3V |
| DV75C-010.0M | Connor Winfield | DV75C | TCXO | 10 MHz | LVCMOS | 3.3V |
| P223-100.0M | Connor Winfield | P | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| TJ6F-020.0M | Connor Winfield | TJ6 | TCXO | 20 MHz | LVCMOS | 3.3V |
| P213-100.0M | Connor Winfield | P | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| P213-156.25M | Connor Winfield | P | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| T602-019.2M | Connor Winfield | T602 | TCXO | 19.2 MHz | LVCMOS | 3.3V |
| T602-030.72M | Connor Winfield | T602 | TCXO | 30.72 MHz | LVCMOS | 3.3V |
| T604-010.0M | Connor Winfield | T605 | VCTCXO | 10 MHz | LVCMOS | 3.3V |
| TB602-050.0M | Connor Winfield | TB | TCXO | 50 MHz | LVCMOS | 3.3V |
| T602-040.0M | Connor Winfield | T602 | TCXO | 40 MHz | LVCMOS | 3.3V |
| T604-040.0M | Connor Winfield | T605 | VCTCXO | 40 MHz | LVCMOS | 3.3V |
| M100V-020.0M | Connor Winfield | M100 | VCTCXO | 20 MHz | LVCMOS | 3.3V |
| M100V-010.0M | Connor Winfield | M100 | VCTCXO | 10 MHz | LVCMOS | 3.3V |
| M100F-020.0M | Connor Winfield | M100 | TCXO | 20 MHz | LVCMOS | 3.3V |
| DOT050F-010.0M | Connor Winfield | DOT050F | TCXO | 10 MHz | LVCMOS | 3.3V |
| DOCSC022F-030.72M | Connor Winfield | DOCSC | OCXO | 30.72 MHz | LVCMOS | 3.3V |
| DOCSC012F-025.0M | Connor Winfield | DOCSC | OCXO | 25 MHz | LVCMOS | 3.3V |
| OH100-61003CF-010.0M | Connor Winfield | OH100 | OCXO | 10 MHz | CMOS | 3.3V |
| OH100-61003CF-020.0M | Connor Winfield | OH100 | OCXO | 20 MHz | CMOS | 3.3V |
| OH300-61003CV-010.0M | Connor Winfield | OH300 | VCOCXO | 10 MHz | CMOS | 3.3V |
| OH300-50503CV-010.0M | Connor Winfield | OH300 | VCOCXO | 10 MHz | CMOS | 3.3V |
| OH300-50503CF-010.0M | Connor Winfield | OH300 | OCXO | 10 MHz | CMOS | 3.3V |
| OH300-50503CF-050.0M | Connor Winfield | OH300 | OCXO | 50 MHz | CMOS | 3.3V |
| OD100LP-81212SV-100.0M | Connor Winfield | OD100LP | VCOCXO | 100 MHz | Sine Wave | 12V |
| CWX823-024.0M | Connor Winfield | CWX823 | XO (Standard) | 24 MHz | LVCMOS | 3.3V |
| CWX823-008.0M | Connor Winfield | CWX823 | XO (Standard) | 8 MHz | LVCMOS | 3.3V |
| CWX823-027.0M | Connor Winfield | CWX823 | XO (Standard) | 27 MHz | LVCMOS | 3.3V |
| CWX813-012.288M | Connor Winfield | CWX813 | XO (Standard) | 12.288 MHz | LVCMOS | 3.3V |
| CWX813-024.0M | Connor Winfield | CWX813 | XO (Standard) | 24 MHz | LVCMOS | 3.3V |
| CWX823-100.0M | Connor Winfield | CWX823 | XO (Standard) | 100 MHz | LVCMOS | 3.3V |
| CWX823-064.0M | Connor Winfield | CWX823 | XO (Standard) | 64 MHz | LVCMOS | 3.3V |
| D32G-026.0M | Connor Winfield | D32G | TCXO | 26 MHz | Clipped Sine Wave | 3.3V |
| D32G-019.2M | Connor Winfield | D32G | TCXO | 19.2 MHz | Clipped Sine Wave | 3.3V |
| B31-038.4M | Connor Winfield | B31 | TCXO | 38.4 MHz | Clipped Sine Wave | 3.3V |
| B31-025.0M | Connor Winfield | B31 | TCXO | 25 MHz | Clipped Sine Wave | 3.3V |
| P122-125.0M | Connor Winfield | P | XO (Standard) | 125 MHz | LVPECL | 2.5V |
| LM113-200.0M | Connor Winfield | LM113 | XO (Standard) | 200 MHz | LVDS | 3.3V |
| VBLD861-100.0M | Connor Winfield | VBLD861 | VCXO | 100 MHz | LVCMOS | 3.3V |
| P212-156.25M | Connor Winfield | P | XO (Standard) | 156.25 MHz | LVPECL | 2.5V |
| T602-020.0M | Connor Winfield | T602 | TCXO | 20 MHz | LVCMOS | 3.3V |
| T200F-050.0M | Connor Winfield | T200 | TCXO | 50 MHz | LVCMOS | 3.3V |
| DOT050V-010.0M | Connor Winfield | DOT050V | VCTCXO | 10 MHz | LVCMOS | 3.3V |
| OH100-50503CF-010.0M | Connor Winfield | OH100 | OCXO | 10 MHz | CMOS | 3.3V |
| OH100-61003CV-010.0M | Connor Winfield | OH100 | VCOCXO | 10 MHz | CMOS | 3.3V |
| OH300-61003CF-050.0M | Connor Winfield | OH300 | OCXO | 50 MHz | CMOS | 3.3V |
| DGOF5S3-020.0M | Connor Winfield | DGOF | OCXO | 20 MHz | HCMOS, TTL | 5V |
| OX200-SC-010.0M | Connor Winfield | OX200-SC | VCOCXO | 10 MHz | LVCMOS | 12V |
| OD100LP-61005CV-010.0M | Connor Winfield | OD100LP | VCOCXO | 10 MHz | CMOS | 5V |
| OD100LP-61012SV-010.0M | Connor Winfield | OD100LP | VCOCXO | 10 MHz | Sine Wave | 12V |
| CWX823-025.0M | Connor Winfield | CWX823 | XO (Standard) | 25 MHz | LVCMOS | 3.3V |
| CWX823-032.768M | Connor Winfield | CWX823 | XO (Standard) | 32.768 MHz | LVCMOS | 3.3V |
| CWX813-033.0M | Connor Winfield | CWX813 | XO (Standard) | 33 MHz | LVCMOS | 3.3V |
| CWX813-060.0M | Connor Winfield | CWX813 | XO (Standard) | 60 MHz | LVCMOS | 3.3V |
| CWX813-001.8432M | Connor Winfield | CWX813 | XO (Standard) | 1.8432 MHz | LVCMOS | 3.3V |
| CWX813-004.0M | Connor Winfield | CWX813 | XO (Standard) | 4 MHz | LVCMOS | 3.3V |
| CWX813-016.384M | Connor Winfield | CWX813 | XO (Standard) | 16.384 MHz | LVCMOS | 3.3V |
| CWX813-019.44M | Connor Winfield | CWX813 | XO (Standard) | 19.44 MHz | LVCMOS | 3.3V |
| HSM613-024.576M | Connor Winfield | HSM6 | XO (Standard) | 24.576 MHz | HCMOS | 3.3V |
| HSM613-125.0M | Connor Winfield | HSM6 | XO (Standard) | 125 MHz | HCMOS | 3.3V |
| CWX813-029.4912M | Connor Winfield | CWX813 | XO (Standard) | 29.4912 MHz | LVCMOS | 3.3V |
| CWX813-066.6666M | Connor Winfield | CWX813 | XO (Standard) | 66.6666 MHz | LVCMOS | 3.3V |
| CWX823-156.25M | Connor Winfield | CWX823 | XO (Standard) | 156.25 MHz | LVCMOS | 3.3V |
| VKB61B2-010.0M | Connor Winfield | VKB | VCXO | 10 MHz | LVCMOS | 3.3V |
| B31-040.0M | Connor Winfield | B31 | TCXO | 40 MHz | Clipped Sine Wave | 3.3V |
