ABRACON发布性能超强的超低抖动晶振,AK2APAF1-156.2500进口晶振

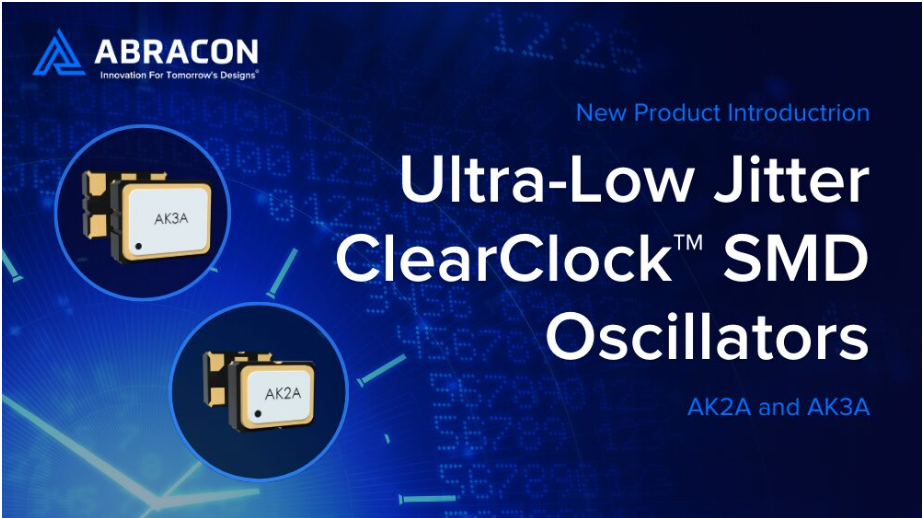

Abracon宣布推出新型超低抖动ClearClockSMD振荡器，德克萨斯州斯派斯伍德，Abracon晶振是频率控制、定时、功率、磁性、射频和天线解决方案的领先供应商，通过增加全新的AK2A和AK3A系列振荡器，扩展了其高性能ClearClock振荡器系列。Abracon的这一全新超低抖动SMD振荡器系列旨在为各种高速应用提供稳定准确的时钟信号，例如光收发器和模块、数据中心、网络交换机和网关以及100G/200G/400G/800G以太网。AK2A和AK3A系列提供可靠、高效的振荡，同时在-25°C至+40°C的温度范围内保持85ppm的稳定性，在-15°C至+20°C的温度范围内保持70ppm的稳定性。
这些新型ClearClockSDM晶振非常适合需要100至212/5MHz载波频率且需要高达400Gbps通道速率的应用。AK2A和AK5A振荡器的封装尺寸支持3.2x2.5和2.5x2.3的行业标准封装尺寸，提供节省空间的设计，与以前的型号相比，抖动性能显著提高。这些振荡器还支持各种差分输出，使其能够轻松集成到各种系统中。第三种泛音ClearClock技术减轻了基于锁相环（PLL）的乘法，消除了降低整体功耗的机会。
“新型AK2A和AK3A系列有源晶体振荡器封装尺寸小，RMS抖动性能极低，仅为83fs，”产品线经理RogerBurns解释道。“这种组合使它们与以前的迭代不同，这些迭代仅在更大的封装尺寸下可用，使这些新的ClearClock振荡器非常适合光收发器，数据中心，存储和服务器，网络交换机和网关，100G/200G/400G/800G以太网，光纤通道和PCIe终端应用。
| ABRACON晶振 | 生产品牌 | 型号 | 类型 | 频率 | 输出 | 电压 | 频率稳定度 | 工作温度 |
| ASV-48.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 48MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-50.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 50MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-11.0592MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 11.0592MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-50.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 50MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-3.6864MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 3.6864MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-33.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 33MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-7.3728MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 7.3728MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-12.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 12MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-3.6864MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 3.6864MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-24.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 24MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-25.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 25MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-30.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 30MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-10.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 10MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-16.384MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 16.384MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-27.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 27MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-60.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 60MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-18.432MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 18.432MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-29.4912MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 29.4912MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-8.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 8MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-24.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 24MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-16.384MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 16.384MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-33.333MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 33.333MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-30.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 30MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-10.000MHZ-LCS-T | Abracon LLC | ASV | XO (Standard) | 10MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-16.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 16MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-26.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 26MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-12.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 12MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-40.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 40MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-60.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 60MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-19.200MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 19.2MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-20.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 20MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-22.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 22MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-24.576MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 24.576MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA2-40.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 40MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA2-48.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 48MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA-25.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 25MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-3.6864MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 3.6864MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-30.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 30MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-38.400MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 38.4MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-48.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 48MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-7.3738MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 7.3738MHz | HCMOS, TTL | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-8.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 8MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASV-50.000MHZ-LCS-T | Abracon LLC | ASV | XO (Standard) | 50MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-50.000MHZ-LCS-T | Abracon LLC | ASV | XO (Standard) | 50MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASV-40.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 40MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-24.576MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 24.576MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-27.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 27MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-18.432MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 18.432MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-8.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 8MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-14.7456MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 14.7456MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-20.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 20MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-4.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 4MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-14.31818MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 14.31818MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-133.333MHZ-EC-T | Abracon LLC | ASV | XO (Standard) | 133.333MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| ASA-27.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 27MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA2-12.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 12MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA2-27.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 27MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA-24.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 24MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA2-25.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 25MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA2-26.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 26MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASV-150.000MHZ-EC-T | Abracon LLC | ASV | XO (Standard) | 150MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| ASV-125.000MHZ-EC-T | Abracon LLC | ASV | XO (Standard) | 125MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| ASV-100.000MHZ-EC-T | Abracon LLC | ASV | XO (Standard) | 100MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| ASV-14.31818MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 14.31818MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-12.0000MHZ-LC-S-T | Abracon LLC | ASV | XO (Standard) | 12MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASV-24.576MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 24.576MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-20.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 20MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-10.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 10MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
