前言:关于爱普生晶振这个品牌已经是老生常谈了,是金洛鑫电子主要供应的进口产品之一,在我司官网上有许多关于爱普生晶体和振荡器相关的技术或产品文章,各位感兴趣的可以关注金洛鑫电子的官方网站查看.

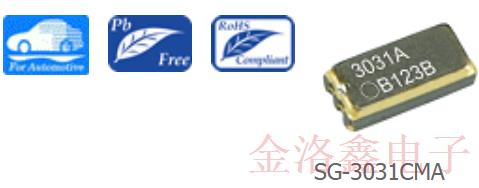

上个月エプソン水晶デバイス接连宣布了两大产品方面最新进展,第一件是已经成功研发出两款3.2×1.5mm的超低功耗32.768K晶体振荡器系列,分别命名为SG-3031CM和SG-3031CMA.既然都是同一种封装,料号也相似,那么这两款石英晶振之间,到底有什么不同,请看接下来的分析.
内置32.768K晶体单元,无需调整即可高效运行;工作温度-40°C至+105°C;使用CMOSIC可以减少电流消耗;VIO控制摆幅;应用领域:工业,安全,智能电表,计时和睡眠功能时钟.

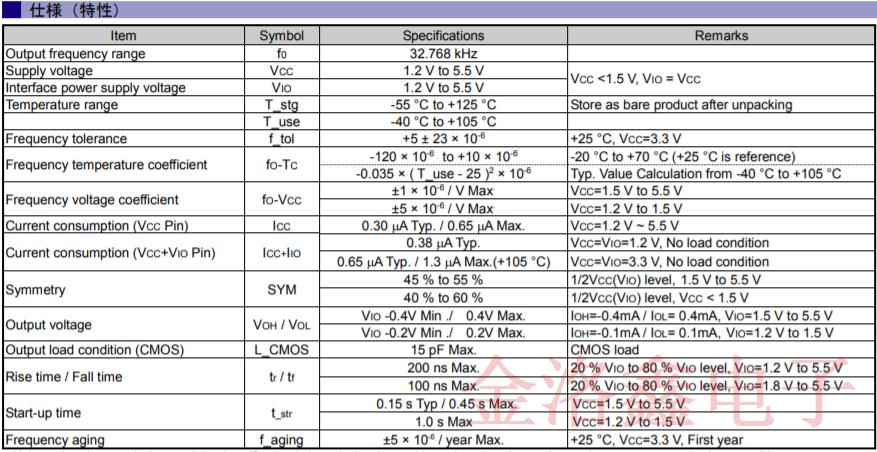

除非另有说明,否则上表中显示的石英晶振特性(规格)基于额定工作温度和电压条件.

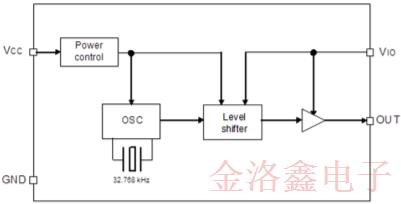

VIO是OUT输出的电源引脚,也可以用作OE引脚.设置为禁用时,将VIO设置为0V.VCC是用于操作32.768kHz振荡的电源引脚.可以通过最小化两个电源的施加电压来最小化功耗.但是,当VCC<1.5V时,VIO=VCC.

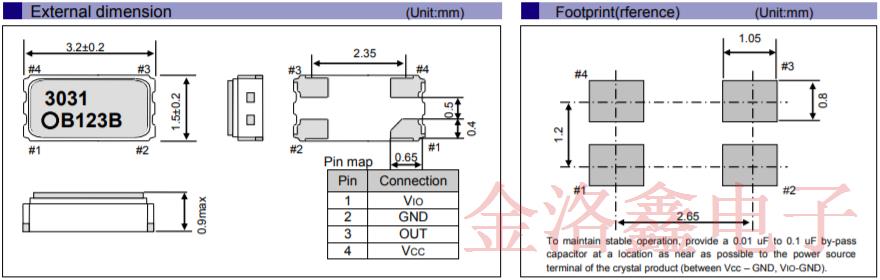

SG-3031CM/CMA封装尺寸图
1.具有优化的CMOSIC设计的
-低功耗-最大0.65uA的低功耗.*1
-1:Vcc=1.2V至5.5V,VIO=0.0V,T_use=+105℃
-电源电压范围从1.2V至5.5V
-Vio-PIN是接口电源电压
2.宽温度范围最高可达105度
-SG-3031CMA和SG-3031CM石英晶振的工作温度范围最高为+105℃.
3.符合AEC-Q100标准
-SG-3031CMA符合AEC-Q100标准,适用于汽车应用.
4.附加价值主张
-内置的32.768kHz音叉晶体单元可在较宽的温度范围内提供稳定的频率,而无需用户进行调整.
-确保产品质量始终如一
-内部开发和制造晶体和IC-内部组装和检查晶体振荡器
内置的32.768kHz石英晶振可实现无调整的高效运行;工作温度-40°C至+105°C;使用CMOSIC可以减少电流消耗;VIO控制摆幅;符合AEC-Q100;应用领域:信息娱乐和通信设备,车身(ECU*),用于计时和睡眠功能的时钟.ECU:电子控制单元.
除非另有说明,否则上表中显示的特性(规格)基于额定工作温度和电压条件.

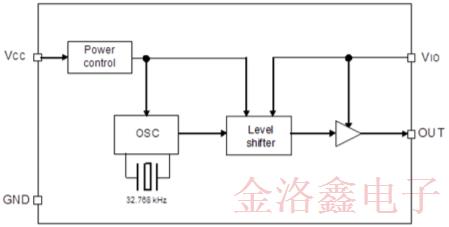

VIO是OUT输出的电源引脚,也可以用作OE引脚.设置为禁用时,将VIO设置为0V.VCC是用于操作32.768kHz振荡的电源引脚.可以通过最小化两个电源的施加电压来最小化功耗.但是,当VCC<1.5V时,VIO=VCC.
|
X1G0036410022 |
SG-211SEE晶振 |
38.400000MHz |
2.50x2.00x0.80mm |
|
X1G0036410023 |
SG-211SEE晶振 |
27.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410024 |
SG-211SEE晶振 |
38.400000MHz |
2.50x2.00x0.80mm |
|
X1G0036410025 |
SG-211SEE晶振 |
26.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410026 |
SG-211SEE晶振 |
50.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410027 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410028 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410030 |
SG-211SEE晶振 |
37.400000MHz |
2.50x2.00x0.80mm |
|
X1G0036410031 |
SG-211SEE晶振 |
12.288000MHz |
2.50x2.00x0.80mm |
|
X1G0036410032 |
SG-211SEE晶振 |
27.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410033 |
SG-211SEE晶振 |
27.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410034 |
SG-211SEE晶振 |
24.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410035 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410036 |
SG-211SEE晶振 |
4.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410037 |
SG-211SEE晶振 |
15.625000MHz |
2.50x2.00x0.80mm |
|
X1G0036410038 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410039 |
SG-211SEE晶振 |
24.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410041 |
SG-211SEE晶振 |
50.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410042 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410043 |
SG-211SEE晶振 |
19.200000MHz |
2.50x2.00x0.80mm |
|
X1G0036410044 |
SG-211SEE晶振 |
37.125000MHz |
2.50x2.00x0.80mm |
|
X1G0036410045 |
SG-211SEE晶振 |
27.000000MHz |
2.50x2.00x0.80mm |
|
X1G0039310001 |
SG-210SCH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310004 |
SG-210SCH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310009 |
SG-210SCH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310011 |
SG-210SCH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310013 |
SG-210SCH晶振 |
150.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310014 |
SG-210SCH晶振 |
156.250000MHz |
2.50x2.00x0.90mm |
|
X1G0039310018 |
SG-210SCH晶振 |
106.250000MHz |
2.50x2.00x0.90mm |
|
X1G0039310024 |
SG-210SCH晶振 |
150.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310032 |
SG-210SCH晶振 |
133.333300MHz |
2.50x2.00x0.90mm |
|
X1G0039310033 |
SG-210SCH晶振 |
160.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310039 |
SG-210SCH晶振 |
125.006250MHz |
2.50x2.00x0.90mm |
|
X1G0039310042 |
SG-210SCH晶振 |
114.285000MHz |
2.50x2.00x0.90mm |
|
X1G0039310043 |
SG-210SCH晶振 |
133.333000MHz |
2.50x2.00x0.90mm |
|
X1G0039310044 |
SG-210SCH晶振 |
133.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410001 |
SG-210SDH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410002 |
SG-210SDH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410003 |
SG-210SDH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410004 |
SG-210SDH晶振 |
133.333000MHz |
2.50x2.00x0.90mm |
|
X1G0039410008 |
SG-210SDH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410010 |
SG-210SDH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410013 |
SG-210SDH晶振 |
156.250000MHz |
2.50x2.00x0.90mm |
|
X1G0039410014 |
SG-210SDH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510001 |
SG-210SEH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510002 |
SG-210SEH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510003 |
SG-210SEH晶振 |
133.333000MHz |
2.50x2.00x0.90mm |
|
X1G0039510004 |
SG-210SEH晶振 |
156.250000MHz |
2.50x2.00x0.90mm |
|
X1G0039510008 |
SG-210SEH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510009 |
SG-210SEH晶振 |
133.330000MHz |
2.50x2.00x0.90mm |
|
X1G0039510010 |
SG-210SEH晶振 |
145.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510011 |
SG-210SEH晶振 |
150.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510013 |
SG-210SEH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510014 |
SG-210SEH晶振 |
98.304000MHz |
2.50x2.00x0.90mm |
|
X1G0041710002 |
SG-210STF晶振 |
33.300000MHz |
2.50x2.00x0.90mm |
|
X1G0041710005 |
SG-210STF晶振 |
1.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710006 |
SG-210STF晶振 |
1.843200MHz |
2.50x2.00x0.90mm |
|
X1G0041710007 |
SG-210STF晶振 |
2.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710008 |
SG-210STF晶振 |
3.686400MHz |
2.50x2.00x0.90mm |
|
X1G0041710009 |
SG-210STF晶振 |
4.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710010 |
SG-210STF晶振 |
4.096000MHz |
2.50x2.00x0.90mm |
|
X1G0041710011 |
SG-210STF晶振 |
5.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710012 |
SG-210STF晶振 |
6.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710013 |
SG-210STF晶振 |
6.144000MHz |
2.50x2.00x0.90mm |
|
X1G0041710014 |
SG-210STF晶振 |
7.372800MHz |
2.50x2.00x0.90mm |
|
X1G0041710015 |
SG-210STF晶振 |
8.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710016 |
SG-210STF晶振 |
10.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710017 |
SG-210STF晶振 |
11.289600MHz |
2.50x2.00x0.90mm |
|
X1G0041710018 |
SG-210STF晶振 |
12.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710019 |
SG-210STF晶振 |
12.288000MHz |
2.50x2.00x0.90mm |
|
X1G0041710020 |
SG-210STF晶振 |
12.500000MHz |
2.50x2.00x0.90mm |
|
X1G0041710021 |
SG-210STF晶振 |
13.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710022 |
SG-210STF晶振 |
13.500000MHz |
2.50x2.00x0.90mm |
|
X1G0041710023 |
SG-210STF晶振 |
13.560000MHz |
2.50x2.00x0.90mm |
|
X1G0041710024 |
SG-210STF晶振 |
14.318180MHz |
2.50x2.00x0.90mm |
|
X1G0041710025 |
SG-210STF晶振 |
14.745600MHz |
2.50x2.00x0.90mm |
|
X1G0041710026 |
SG-210STF晶振 |
15.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710027 |
SG-210STF晶振 |
16.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710028 |
SG-210STF晶振 |
19.200000MHz |
2.50x2.00x0.90mm |
|
X1G0041710029 |
SG-210STF晶振 |
20.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710030 |
SG-210STF晶振 |
22.579200MHz |
2.50x2.00x0.90mm |
|
X1G0041710031 |
SG-210STF晶振 |
24.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710032 |
SG-210STF晶振 |
24.576000MHz |
2.50x2.00x0.90mm |
|
X1G0041710033 |
SG-210STF晶振 |
25.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710034 |
SG-210STF晶振 |
26.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710035 |
SG-210STF晶振 |
27.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710036 |
SG-210STF晶振 |
27.120000MHz |
2.50x2.00x0.90mm |
|
X1G0041710037 |
SG-210STF晶振 |
28.636360MHz |
2.50x2.00x0.90mm |
|
X1G0041710038 |
SG-210STF晶振 |
29.491200MHz |
2.50x2.00x0.90mm |
|
X1G0041710039 |
SG-210STF晶振 |
30.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710040 |
SG-210STF晶振 |
32.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710041 |
SG-210STF晶振 |
33.333000MHz |
2.50x2.00x0.90mm |
|
X1G0041710042 |
SG-210STF晶振 |
36.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710043 |
SG-210STF晶振 |
37.400000MHz |
2.50x2.00x0.90mm |
|
X1G0041710044 |
SG-210STF晶振 |
38.400000MHz |
2.50x2.00x0.90mm |
|
X1G0041710045 |
SG-210STF晶振 |
40.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710046 |
SG-210STF晶振 |
48.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710047 |
SG-210STF晶振 |
50.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710048 |
SG-210STF晶振 |
52.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710049 |
SG-210STF晶振 |
54.000000MHz |
2.50x2.00x0.90mm |
