FX135A-327美国FOX福克斯晶振使用到电子产品上回流焊的温度多少

来源：金洛鑫浏览：- 发布日期：2022-08-02 16:54:42【大中小】

分享到：

FX135A-327美国FOX福克斯晶振使用到电子产品上回流焊的温度多少

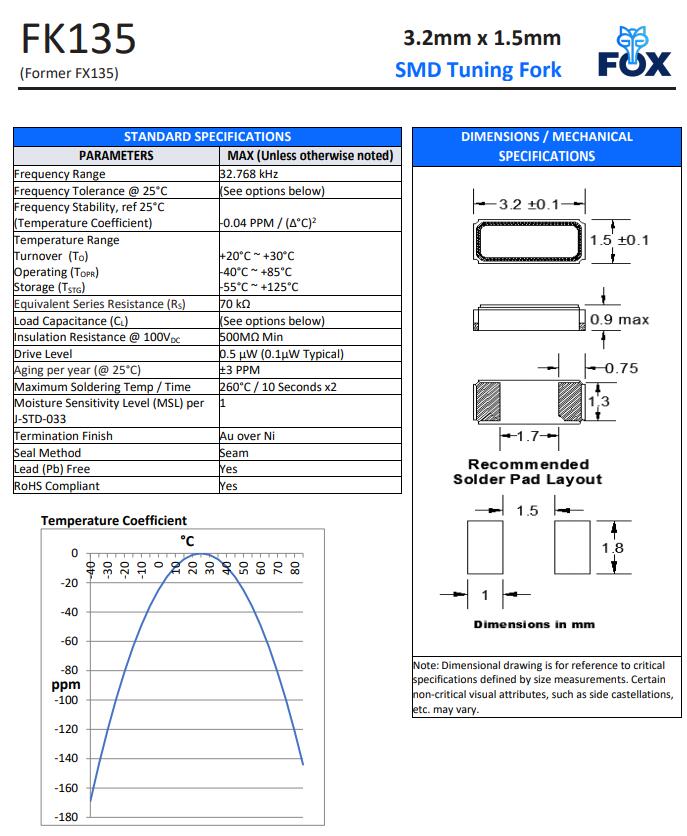

标准规格最大参数(除非另有说明) 频率范围32.768千赫25°C时的频率容差(见以下选项)频率稳定性,ref25°C(温度系数)-0.04PPM/(°C)2温度范围营业额(至)运营(TOPR)存储(TSTG)+20摄氏度至+30摄氏度-40摄氏度至+85摄氏度-55摄氏度至+125摄氏度等效串联电阻(RS)70kω负载电容(CL)(福克斯石英晶振见以下选项)绝缘电阻@100VDC500mωMin驱动电平0.5W(典型值0.1W)每年老化(@25°C)3PPM最大焊接温度/时间260°C/10秒x2湿度敏感度等级(MSL)j-标准-033数字一（one）镍上的终端涂层金密封方法接缝无铅(Pb)是符合RoHS标准

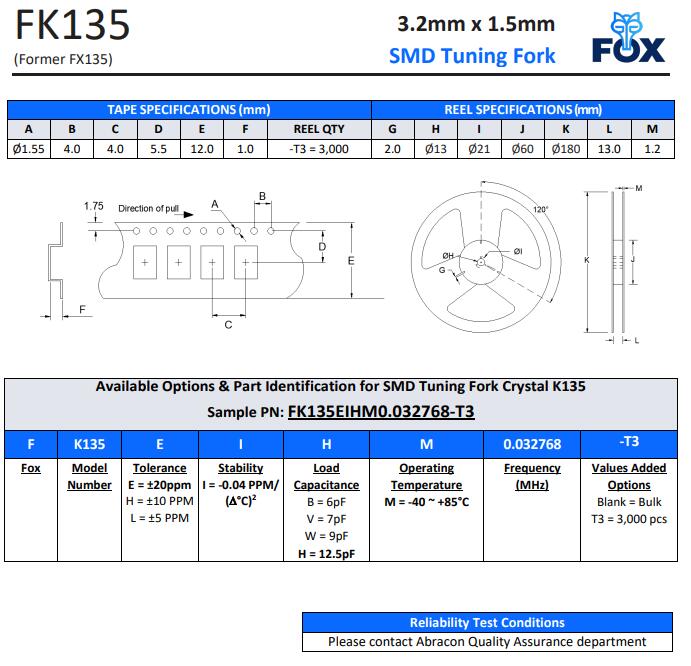

FX135A-327石英晶体,美国FOX福克斯晶振

FX135A-327	Fox Electronics	FX135A	kHz Crystal (Tuning Fork)	32.768kHz	-	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)	0.035" (0.90mm)
FX135A-327	Fox Electronics	FX135A	kHz Crystal (Tuning Fork)	32.768kHz	-	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)	0.035" (0.90mm)
FX135A-327	Fox Electronics	FX135A	kHz Crystal (Tuning Fork)	32.768kHz	-	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)	0.035" (0.90mm)
FSRLF327	Fox Electronics	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 5.50mm pitch	0.343" L x 0.146" W (8.70mm x 3.70mm)	0.098" (2.50mm)
FSRLF327	Fox Electronics	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 5.50mm pitch	0.343" L x 0.146" W (8.70mm x 3.70mm)	0.098" (2.50mm)
FSRLF327	Fox Electronics	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 5.50mm pitch	0.343" L x 0.146" W (8.70mm x 3.70mm)	0.098" (2.50mm)
FSXLF327	Fox Electronics	FSXLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)	0.055" (1.40mm)
FSXLF327	Fox Electronics	FSXLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)	0.055" (1.40mm)
FSXLF327	Fox Electronics	FSXLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)	0.055" (1.40mm)
FOXSLF/080-20	Fox Electronics	HC49SLF	MHz Crystal	8MHz	±50ppm	HC49/US	0.447" L x 0.183" W (11.35mm x 4.65mm)	0.142" (3.60mm)
FQ5032B-12.000	Fox Electronics	C5BQ	MHz Crystal	12MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-12.000	Fox Electronics	C5BQ	MHz Crystal	12MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-12.000	Fox Electronics	C5BQ	MHz Crystal	12MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-25.000	Fox Electronics	C5BQ	MHz Crystal	25MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-25.000	Fox Electronics	C5BQ	MHz Crystal	25MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-25.000	Fox Electronics	C5BQ	MHz Crystal	25MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FSMLF327	Fox Electronics	FSMLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 2.29mm pitch	0.410" L x 0.160" W (10.41mm x 4.06mm)	0.140" (3.56mm)
FSMLF327	Fox Electronics	FSMLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 2.29mm pitch	0.410" L x 0.160" W (10.41mm x 4.06mm)	0.140" (3.56mm)
FSMLF327	Fox Electronics	FSMLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 2.29mm pitch	0.410" L x 0.160" W (10.41mm x 4.06mm)	0.140" (3.56mm)

晶体单元搬运注意事项

1)安装注意事项 FX135A-327石英晶体,美国FOX福克斯晶振

如果电路板变形,例如安装后弯曲、之间的焊接点剥落晶体谐振器和电路板可能会在陶瓷封装中产生裂纹,导致损耗真空、内部元件的破坏等.尤其是当重新铺设它所在的板时安装时,可能会施加较大的应力,请考虑电路板布局和切割最小化产品压力的方法. 当智能手机晶振产品自动安装在板上时,如果晶体受到较大冲击谐振器,特性可能会改变/恶化,或者产品可能坏掉了.

当自动安装时,请考虑对晶体单元的冲击来设置条件. 此外,请事先进行安装测试,并确认对没有影响晶体谐振器的特性. 当出现以下情况时,由于长时间反复剧烈的温度变化,焊接部分可能会出现裂纹由于电路板的膨胀系数不同于水晶包装.在这种情况下使用时,请事先进行测试并确认对石英晶体谐振器单元没有影响. 陶瓷封装是小而薄的产品.因此,如果/当你安装后返工,请给考虑选择和处理要使用的工具. FX135A-327石英晶体,美国FOX福克斯晶振
