振荡器和石英晶体你该怎么选CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC

返回列表 来源：金洛鑫 浏览：- 发布日期：2023-06-20 10:48:24【大 中 小】
分享到：

在开发电子组件时，其中一个步骤包括选择合适的频率控制产品。开始时的基本问题是安装石英晶体还是振荡器。为了做出正确的决定，需要考虑几个参数。这些包括应用、设备或行业的许多不同要求。除了空间要求、频率稳定性和专业知识之外，开发成本也起着重要作用。1

选择石英晶体还是振荡器？这就是问题所在！在下文中，我们将更深入地了解一个组件或另一个组件是更好选择的情况:

当石英晶体是正确的选择时

石英晶体最适合开发人员想要构建自己的电子振荡器，允许他们调整或优化所有相关参数的时候。这当然需要一定的努力:电子振荡器必须构建并适应谐振器，以确保在整个工作温度范围内的振荡稳定性和凝聚力。例如，电路元件包括电容器，必须选择电容器，以便实现石英晶体的特定负载能力。如果不是这种情况，可能会出现与额定频率相当大的偏差。因此，必须事先明确定义石英晶体的规格，以避免频率偏差。

然而，由于石英晶体比石英振荡器便宜，所以它们是更大数量的更好选择。此外，电路板上必须有足够的空间:带电路的压电晶体比晶体振荡器需要更多的空间。

完美协调的完整解决方案:晶体振荡器

当使用振荡器内部安装电路的所有元件已经完全匹配。与带电路的石英晶体相比，振荡器通常占用更少的空间。振荡器总是包含一个频率控制元件，在我们以下的例子中是一个石英晶体。这是插入到皮尔斯电路，导致石英晶体振荡。

2

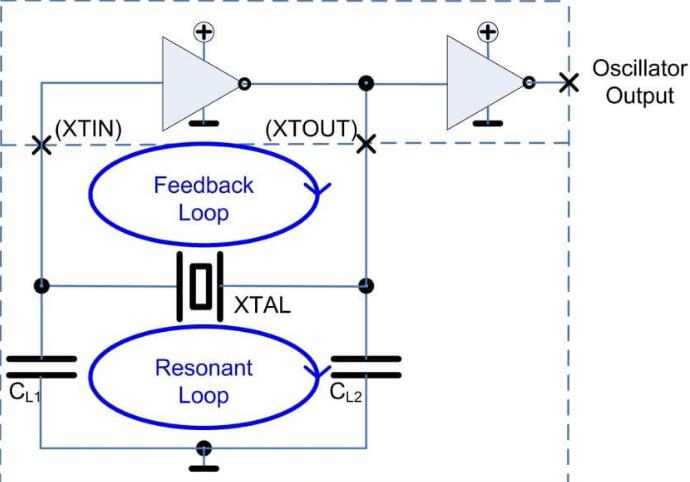

振荡器电路

因此，振荡器是最节省空间的选择:一切都很紧凑，内置在一个组件中，开发人员不必围绕压电晶体设计电路。该元件特别适用于小批量生产，因为它消除了耗时的电路元件优化和调谐的需要。

振荡器的另一个优点是，当使用石英晶体时，面积与厚度之比不能低于某个值。如果不保持这个比例，它将对电参数产生负面影响。这意味着低频(10 MHz以下)不再能在更小的设计中处理。这一限制不适用于振荡器，因为振荡器内部有一个IC。这同样适用于频率更高的电路，石英晶体也能更快地达到其物理极限。由于内置IC，还可以通过温度进行补偿(TCXOs)。这允许开发者有更多的操作空间，以满足相应应用程序及其外部影响的要求。这种偏差还允许±0.05 ppm的频率稳定性。最好的情况下，石英晶体的含量低于百万分之±10。

需要帮助为您的应用选择正确的频率控制元件吗？请与我们联系这样我们就能一起找到适合您应用的组件。

制造商零件编号 制造商 描述 产品类型
OV-7604-C7-32.768k-20PPM-TB-QA Micro 晶振 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200 Clock Oscillators
OV-7604-C7-32.768kHz-20PPM-TA-QC Micro 晶振 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C Clock Oscillators
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
OV-0100-C7-100.000kHz-20PPM-TA-QC Micro 晶振 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C Clock Oscillators
OM-0100-C8-100.00kHz-20PPM-TA-QC Micro 晶振 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C Clock Oscillators
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
OM-7605-C8-32.768kHz-20PPM-TA-QC Micro 晶振 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C Clock Oscillators
OM-7604-C7-32.768kHz-20PPM-TA-QC Micro 晶振 标准时钟振荡器 32.768 kHz +/-20 PPM I2C -40/+85C Clock Oscillators
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C Crystals
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm Crystals
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C Crystals
MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
OV-7604-C7-32.768kHz-20PPM-TB-QC Micro 晶振 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C Clock Oscillators
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C Crystals
CC7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals
CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR Crystals
CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C Crystals
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals
CC7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals
CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768k-6pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 Crystals
MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
OV-7605-C8-32.768kHz-20PPM-TA-QC Micro 晶振 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C Clock Oscillators
CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC Micro 晶振 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C Crystals
OM-7604-C7-32.768kHz-20PPM-TB-QC Micro 晶振 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C Clock Oscillators
CC4V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals
OV-7604-C7-32.768k-10PPM-TB-QA Micro 晶振 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200 Clock Oscillators
OV-7604-C7-32.768k-20PPM-TA-QA Micro 晶振 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C Clock Oscillators
CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro 晶振 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C Crystals
CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC Micro 晶振 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C Crystals
CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC Micro 晶振 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC Micro 晶振 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC Micro 晶振 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C Crystals
CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C Crystals
CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC Micro 晶振 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC Micro 晶振 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC Micro 晶振 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C Crystals
CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC Micro 晶振 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C Crystals
CC4V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals
