由于晶体没有足够的输出波形幅度系统不能正常工作时的正确做法ABM10W-40.0000MHZ-4-K1Z-T3

返回列表 来源：金洛鑫 浏览：- 发布日期：2023-08-22 16:58:50【大 中 小】
分享到：

由于石英晶体没有足够的输出波形幅度,系统不能正常工作,请使用示波器或频率计数器测量晶体两端的信号，如果频率不在规格范围内，并且它的输出波形幅度不够(例如超过+/-200ppm)，请按照以下步骤1-1至步骤1-4进行测量。

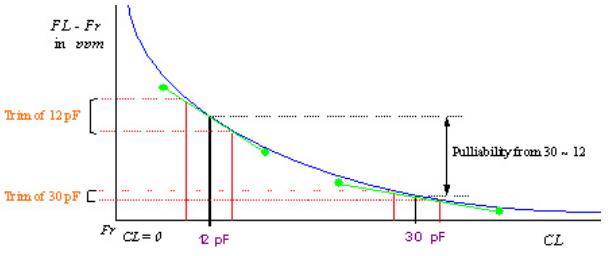

1-1.电容与频率的关系公式如下: “FL = FR * (1 + C1 / 2 * (C0 + CL))，其中 该曲线表示电容变化的变化对频率变化的变化(频率牵引能力):

1

如果频率计数器测量的频率高于目标频率，我们应该增加电容(CL，或Cd和Cg)的值，使频率降低到目标频率，反之亦然。

请检查我们调整频率后波形幅度是否有所改善。如果它得到了改进，表明电路的原始设计没有调谐到晶体的最佳谐振点。调整好谐振点后晶体应能正常工作。

1-2.如果在频率非常接近目标频率的情况下波形幅度没有改善，我们可以使用以下三种方法进行改善:

方法一:降低外部电容(Cd和Cg)值，采用负载电容(CL)较低的晶体。

方法二:采用电阻(Rr)较小的晶体。

方法三:采用Cd和Cg不等值的设计。

我们可以增加Cd (Xout)的负载电容，降低Cg (Xin)的负载电容，以提高Xin输出的波形幅度，用于其后端电路。

我们建议您使用以上方法，以节省成本和确保安全。

1-3.请使用频率计数器来测量晶体，以确保调整后的频率在波形幅度改善后仍符合原始规格。如果频率不符合规格，请根据您的目标频率采用具有合适CL值的晶体。

1-4. 如果频率远高于目标频率，请采用CL较低的晶体，反之亦然。

Please measure the signals from the two terminals of the crystal using Oscilloscope or Frequency Counter, if the Frequency is not within the specification and ita€™s output waveform amplitude is not adequate (for example, over +/-200ppm), please follow step 1-2 to step 1-4.
1-1.
The formula for Capacitances versus Frequency is as following:

?€€FL = FR * (1 + C1 / 2 * (C0 + CL) ) where

The curve represents the variation of capacitance changes versus variation of frequency changes (Frequency pullability):

If the frequency measured by Frequency Counter is higher than the targeted frequency, we should increase the value of capacitances (CL, or Cd and Cg) to lower the frequency to the targeted frequency, vice versa.
Please check whether the waveform amplitude is improved or not after we adjust the frequency. If ita€™s improved, that indicates the case that the original design of the circuit is not tuned to the best resonant point for the crystal. The crystal should function normally after the resonant point is adjusted.
1-2.
If the waveform amplitude is not improved even the frequency is pretty much close to the targeted frequency, we can improve it using three methods below:

Method 1: Lower the value of external capacitance (Cd and Cg), and adopt crystal with lower load capacitance (CL).
Method 2: Adopt the crystal with lower resistance (Rr).
Method 3: Use the design of unequal values of Cd and Cg.

We can increase the load capacitance of Cd (Xout) and decrease the load capacitance of Cg (Xin) to raise the output of waveform amplitude from Xin which will be used in its back-end Circuit.
We suggest that you use above methods to save costs and assure safety.
1.3.
Please use the Frequency Counter to measuring the crystal to ensure that the adjusted frequency still meets original specification after the waveform amplitude has been improved. If the frequency doesna€™t meet the specification, please adopt a crystal with suitable CL value according to your targeted frequency.
1-4.
Please adopt a crystal with lower CL if the frequency is much higher than the targeted frequency, vice versa.
