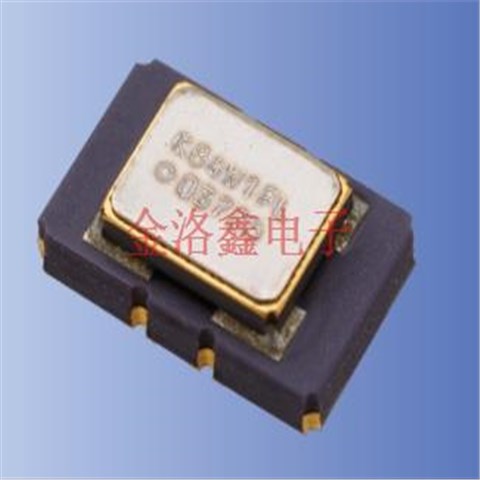

KT5032F20000KAW33T,KYOCERA高精度晶振,KT5032F汽车电子晶振

JLX-1

KT5032F20000KAW33T,KYOCERA高精度晶振,KT5032F汽车电子晶振

KT5032F20000KAW33T在汽车电子领域的应用优势尤为明显,作为KYOCERA京瓷热敏晶振的高精度晶振,它具备卓越的环境适应性.汽车运行过程中面临的环境挑战极为复杂,从零下40℃的严寒冬季到零上85℃的高温夏季,温度波动剧烈,同时还会遭遇来自发动机振动,路面颠簸等产生的剧烈振动,而该晶振经过严格的环境可靠性测试,能够在-40℃至+125℃的宽温范围内稳定工作,且可承受100G的冲击加速度和20G的持续振动.5032贴片晶振封装采用高强度陶瓷材料与精密密封工艺,坚固的设计进一步增强了其抗外界干扰与耐机械应力的能力,大幅提升了产品的可靠性.20MHz的稳定频率为车载电子控制单元提供了精准的时间基准,确保发动机,刹车,转向等系统之间的协同工作无缝衔接,从根本上提升了车辆的驾驶安全性.

JLX-2

KT5032F20000KAW33T,KYOCERA高精度晶振,KT5032F汽车电子晶振

原厂型号Original model ：	KT5032F20000KAW33T	品牌 brand ：	京瓷晶振
Manufacturer品牌	京瓷晶振	Operating Temperature温度	-40 ~ +85°C
Series型号	KT3225K石英晶振	Current - Supply (Max)	-
Type 类型	TCXO	Package Height高度	1.7mm
Frequency 频率	20M	Termination脚位	10 pads
输出方式Output：	cmos	Package Type封装类型	10-SMD
Voltage - Supply电压	3.3V	Packaging包装	Tape and Reel
Frequency Stability频率稳定度	±0.28ppm	安装方式Installation ：	Surface mount
Size / Dimension 尺寸	5032mm	最小包装数 MPQ ：	1000

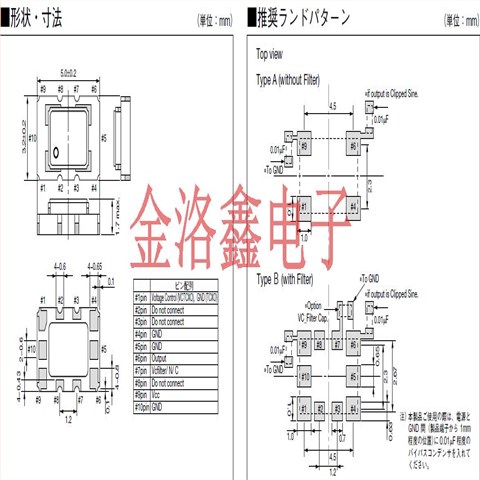

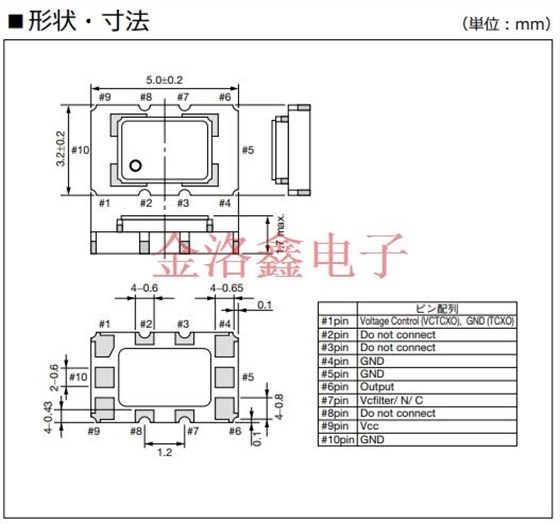

JLX-3

KT5032F20000KAW33T,KYOCERA高精度晶振,KT5032F汽车电子晶振

KT5032F

KT5032F20000KAW33T,KYOCERA高精度晶振,KT5032F汽车电子晶振

KC2016K1.50000C10E00	2.0 x 1.6mm	0.8	1.5	-10	70	± 50	CMOS
KC2016K1.50000C16E00	2.0 x 1.6mm	0.8	1.5	-40	105	± 50	CMOS
KC2016K1.50000C1GE00	2.0 x 1.6mm	0.8	1.5	-40	85	± 50	CMOS
KC2016K1.50000C1SE00	2.0 x 1.6mm	0.8	1.5	-10	70	± 30	CMOS
KC2016K1.50000C1UE00	2.0 x 1.6mm	0.8	1.5	-10	70	± 25	CMOS
KC2016K1.84320C10E00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 50	CMOS
KC2016K1.84320C16E00	2.0 x 1.6mm	0.8	1.8432	-40	105	± 50	CMOS
KC2016K1.84320C1GE00	2.0 x 1.6mm	0.8	1.8432	-40	85	± 50	CMOS
KC2016K1.84320C1SE00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 30	CMOS
KC2016K1.84320C1UE00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 25	CMOS
KC2016K10.0000C10E00	2.0 x 1.6mm	0.8	10	-10	70	± 50	CMOS
KC2016K10.0000C16E00	2.0 x 1.6mm	0.8	10	-40	105	± 50	CMOS
KC2016K10.0000C1GE00	2.0 x 1.6mm	0.8	10	-40	85	± 50	CMOS
KC2016K10.0000C1SE00	2.0 x 1.6mm	0.8	10	-10	70	± 30	CMOS
KC2016K10.0000C1UE00	2.0 x 1.6mm	0.8	10	-10	70	± 25	CMOS
KC2016K10.2400C10E00	2.0 x 1.6mm	0.8	10.24	-10	70	± 50	CMOS
KC2016K10.2400C16E00	2.0 x 1.6mm	0.8	10.24	-40	105	± 50	CMOS
KC2016K10.2400C1GE00	2.0 x 1.6mm	0.8	10.24	-40	85	± 50	CMOS
KC2016K10.2400C1SE00	2.0 x 1.6mm	0.8	10.24	-10	70	± 30	CMOS
KC2016K10.2400C1UE00	2.0 x 1.6mm	0.8	10.24	-10	70	± 25	CMOS
KC2016K10.5554C10E00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 50	CMOS
KC2016K10.5554C16E00	2.0 x 1.6mm	0.8	10.5554	-40	105	± 50	CMOS
KC2016K10.5554C1GE00	2.0 x 1.6mm	0.8	10.5554	-40	85	± 50	CMOS
KC2016K10.5554C1SE00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 30	CMOS
KC2016K10.5554C1UE00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 25	CMOS
KC2016K100.000C10E00	2.0 x 1.6mm	0.8	100	-10	70	± 50	CMOS
KC2016K100.000C16E00	2.0 x 1.6mm	0.8	100	-40	105	± 50	CMOS
KC2016K100.000C1GE00	2.0 x 1.6mm	0.8	100	-40	85	± 50	CMOS
KC2016K100.000C1SE00	2.0 x 1.6mm	0.8	100	-10	70	± 30	CMOS
KC2016K100.000C1UE00	2.0 x 1.6mm	0.8	100	-10	70	± 25	CMOS
KC2016K11.2896C10E00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 50	CMOS
KC2016K11.2896C16E00	2.0 x 1.6mm	0.8	11.2896	-40	105	± 50	CMOS
KC2016K11.2896C1GE00	2.0 x 1.6mm	0.8	11.2896	-40	85	± 50	CMOS
KC2016K11.2896C1SE00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 30	CMOS
KC2016K11.2896C1UE00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 25	CMOS
KC2016K12.0000C10E00	2.0 x 1.6mm	0.8	12	-10	70	± 50	CMOS
KC2016K12.0000C16E00	2.0 x 1.6mm	0.8	12	-40	105	± 50	CMOS
KC2016K12.0000C1GE00	2.0 x 1.6mm	0.8	12	-40	85	± 50	CMOS
KC2016K12.0000C1SE00	2.0 x 1.6mm	0.8	12	-10	70	± 30	CMOS
KC2016K12.0000C1UE00	2.0 x 1.6mm	0.8	12	-10	70	± 25	CMOS
KC2016K12.2880C10E00	2.0 x 1.6mm	0.8	12.288	-10	70	± 50	CMOS
KC2016K12.2880C16E00	2.0 x 1.6mm	0.8	12.288	-40	105	± 50	CMOS
KC2016K12.2880C1GE00	2.0 x 1.6mm	0.8	12.288	-40	85	± 50	CMOS
KC2016K12.2880C1SE00	2.0 x 1.6mm	0.8	12.288	-10	70	± 30	CMOS
KC2016K12.2880C1UE00	2.0 x 1.6mm	0.8	12.288	-10	70	± 25	CMOS
KC2016K12.4560C10E00	2.0 x 1.6mm	0.8	12.456	-10	70	± 50	CMOS
KC2016K12.4560C16E00	2.0 x 1.6mm	0.8	12.456	-40	105	± 50	CMOS
KC2016K12.4560C1GE00	2.0 x 1.6mm	0.8	12.456	-40	85	± 50	CMOS
KC2016K12.4560C1SE00	2.0 x 1.6mm	0.8	12.456	-10	70	± 30	CMOS
KC2016K12.4560C1UE00	2.0 x 1.6mm	0.8	12.456	-10	70	± 25	CMOS
KC2016K12.5000C10E00	2.0 x 1.6mm	0.8	12.5	-10	70	± 50	CMOS
KC2016K12.5000C16E00	2.0 x 1.6mm	0.8	12.5	-40	105	± 50	CMOS
KC2016K12.5000C1GE00	2.0 x 1.6mm	0.8	12.5	-40	85	± 50	CMOS
KC2016K12.5000C1SE00	2.0 x 1.6mm	0.8	12.5	-10	70	± 30	CMOS
KC2016K12.5000C1UE00	2.0 x 1.6mm	0.8	12.5	-10	70	± 25	CMOS
KC2016K125.000C10E00	2.0 x 1.6mm	0.8	125	-10	70	± 50	CMOS
KC2016K125.000C16E00	2.0 x 1.6mm	0.8	125	-40	105	± 50	CMOS
KC2016K125.000C1GE00	2.0 x 1.6mm	0.8	125	-40	85	± 50	CMOS
KC2016K125.000C1SE00	2.0 x 1.6mm	0.8	125	-10	70	± 30	CMOS
KC2016K125.000C1UE00	2.0 x 1.6mm	0.8	125	-10	70	± 25	CMOS
