KT2520K26000CGU30T,KYOCERA京瓷热敏晶振,2520石英晶体振荡器

JLX-1

KT2520K26000CGU30T,KYOCERA京瓷热敏晶振,2520石英晶体振荡器

KT2520K26000CGU30T的型号蕴含着丰富的规格信息:"2520"明确标示了其封装尺寸为2.5mm×2.0mm,属于2520系列石英晶体振荡器的标准规格。这一尺寸相比更小的2016规格略大,但仍保持了小型化的优势,能够适配于对空间有一定要求但无需极致紧凑设计的电子设备,如小型基站,工业传感器模块,汽车电子控制单元等.
作为表面贴装型器件,KT2520K26000CGU30T采用标准化的贴片设计,可与其他表面贴装元器件兼容自动化生产线,实现高效批量焊接,不仅提升了生产效率,还能通过减少人工干预降低误差,确保产品性能的一致性。其标称频率为26MHz,这一频率在通信设备的射频模块,数据处理单元中应用广泛,能够为信号的调制解调,数据传输提供稳定的时钟基准.

JLX-2

KT2520K26000CGU30T,KYOCERA京瓷热敏晶振,2520石英晶体振荡器

原厂型号Original model ：	KT2520K26000CGU30T	品牌 brand ：	Cardinal晶振
Manufacturer品牌	京瓷晶振	Operating Temperature温度	-10 ~ +75°C
Series型号	KT2520K	Current - Supply (Max)	-
Type 类型	TCXO温补晶振	Package Height高度	0.8mm
Frequency 频率	26M	Termination脚位	6 pads
输出方式Output：	削峰正弦波	Package Type封装类型	6-SMD
Voltage - Supply电压	3.0V	Packaging包装	Tape and Reel
Frequency Stability频率稳定度	±1.5ppm	安装方式Installation ：	Surface mount
Size / Dimension 尺寸	2520mm	最小包装数 MPQ ：	3000

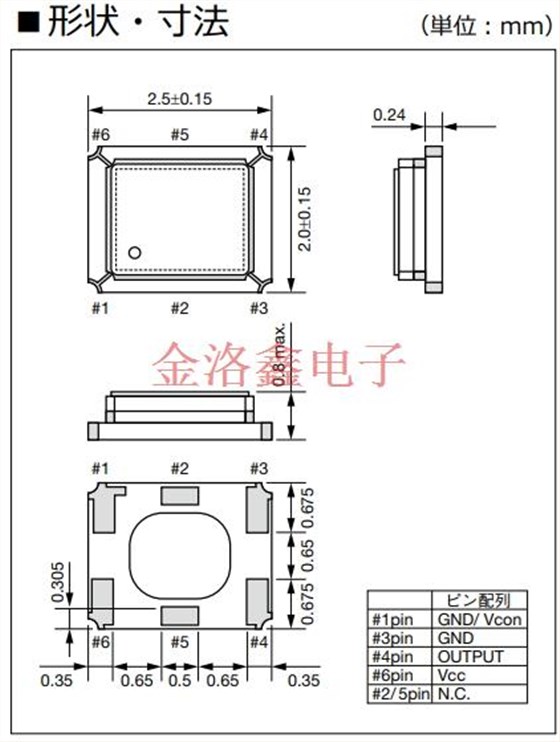

JLX-3

KT2520K26000CGU30T,KYOCERA京瓷热敏晶振,2520石英晶体振荡器

KT2520K

KT2520K26000CGU30T,KYOCERA京瓷热敏晶振,2520石英晶体振荡器

KC2016K1.50000C10E00	2.0 x 1.6mm	0.8	1.5	-10	70	± 50	CMOS
KC2016K1.50000C16E00	2.0 x 1.6mm	0.8	1.5	-40	105	± 50	CMOS
KC2016K1.50000C1GE00	2.0 x 1.6mm	0.8	1.5	-40	85	± 50	CMOS
KC2016K1.50000C1SE00	2.0 x 1.6mm	0.8	1.5	-10	70	± 30	CMOS
KC2016K1.50000C1UE00	2.0 x 1.6mm	0.8	1.5	-10	70	± 25	CMOS
KC2016K1.84320C10E00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 50	CMOS
KC2016K1.84320C16E00	2.0 x 1.6mm	0.8	1.8432	-40	105	± 50	CMOS
KC2016K1.84320C1GE00	2.0 x 1.6mm	0.8	1.8432	-40	85	± 50	CMOS
KC2016K1.84320C1SE00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 30	CMOS
KC2016K1.84320C1UE00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 25	CMOS
KC2016K10.0000C10E00	2.0 x 1.6mm	0.8	10	-10	70	± 50	CMOS
KC2016K10.0000C16E00	2.0 x 1.6mm	0.8	10	-40	105	± 50	CMOS
KC2016K10.0000C1GE00	2.0 x 1.6mm	0.8	10	-40	85	± 50	CMOS
KC2016K10.0000C1SE00	2.0 x 1.6mm	0.8	10	-10	70	± 30	CMOS
KC2016K10.0000C1UE00	2.0 x 1.6mm	0.8	10	-10	70	± 25	CMOS
KC2016K10.2400C10E00	2.0 x 1.6mm	0.8	10.24	-10	70	± 50	CMOS
KC2016K10.2400C16E00	2.0 x 1.6mm	0.8	10.24	-40	105	± 50	CMOS
KC2016K10.2400C1GE00	2.0 x 1.6mm	0.8	10.24	-40	85	± 50	CMOS
KC2016K10.2400C1SE00	2.0 x 1.6mm	0.8	10.24	-10	70	± 30	CMOS
KC2016K10.2400C1UE00	2.0 x 1.6mm	0.8	10.24	-10	70	± 25	CMOS
KC2016K10.5554C10E00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 50	CMOS
KC2016K10.5554C16E00	2.0 x 1.6mm	0.8	10.5554	-40	105	± 50	CMOS
KC2016K10.5554C1GE00	2.0 x 1.6mm	0.8	10.5554	-40	85	± 50	CMOS
KC2016K10.5554C1SE00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 30	CMOS
KC2016K10.5554C1UE00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 25	CMOS
KC2016K100.000C10E00	2.0 x 1.6mm	0.8	100	-10	70	± 50	CMOS
KC2016K100.000C16E00	2.0 x 1.6mm	0.8	100	-40	105	± 50	CMOS
KC2016K100.000C1GE00	2.0 x 1.6mm	0.8	100	-40	85	± 50	CMOS
KC2016K100.000C1SE00	2.0 x 1.6mm	0.8	100	-10	70	± 30	CMOS
KC2016K100.000C1UE00	2.0 x 1.6mm	0.8	100	-10	70	± 25	CMOS
KC2016K11.2896C10E00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 50	CMOS
KC2016K11.2896C16E00	2.0 x 1.6mm	0.8	11.2896	-40	105	± 50	CMOS
KC2016K11.2896C1GE00	2.0 x 1.6mm	0.8	11.2896	-40	85	± 50	CMOS
KC2016K11.2896C1SE00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 30	CMOS
KC2016K11.2896C1UE00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 25	CMOS
KC2016K12.0000C10E00	2.0 x 1.6mm	0.8	12	-10	70	± 50	CMOS
KC2016K12.0000C16E00	2.0 x 1.6mm	0.8	12	-40	105	± 50	CMOS
KC2016K12.0000C1GE00	2.0 x 1.6mm	0.8	12	-40	85	± 50	CMOS
KC2016K12.0000C1SE00	2.0 x 1.6mm	0.8	12	-10	70	± 30	CMOS
KC2016K12.0000C1UE00	2.0 x 1.6mm	0.8	12	-10	70	± 25	CMOS
KC2016K12.2880C10E00	2.0 x 1.6mm	0.8	12.288	-10	70	± 50	CMOS
KC2016K12.2880C16E00	2.0 x 1.6mm	0.8	12.288	-40	105	± 50	CMOS
KC2016K12.2880C1GE00	2.0 x 1.6mm	0.8	12.288	-40	85	± 50	CMOS
KC2016K12.2880C1SE00	2.0 x 1.6mm	0.8	12.288	-10	70	± 30	CMOS
KC2016K12.2880C1UE00	2.0 x 1.6mm	0.8	12.288	-10	70	± 25	CMOS
KC2016K12.4560C10E00	2.0 x 1.6mm	0.8	12.456	-10	70	± 50	CMOS
KC2016K12.4560C16E00	2.0 x 1.6mm	0.8	12.456	-40	105	± 50	CMOS
KC2016K12.4560C1GE00	2.0 x 1.6mm	0.8	12.456	-40	85	± 50	CMOS
KC2016K12.4560C1SE00	2.0 x 1.6mm	0.8	12.456	-10	70	± 30	CMOS
KC2016K12.4560C1UE00	2.0 x 1.6mm	0.8	12.456	-10	70	± 25	CMOS
KC2016K12.5000C10E00	2.0 x 1.6mm	0.8	12.5	-10	70	± 50	CMOS
KC2016K12.5000C16E00	2.0 x 1.6mm	0.8	12.5	-40	105	± 50	CMOS
KC2016K12.5000C1GE00	2.0 x 1.6mm	0.8	12.5	-40	85	± 50	CMOS
KC2016K12.5000C1SE00	2.0 x 1.6mm	0.8	12.5	-10	70	± 30	CMOS
KC2016K12.5000C1UE00	2.0 x 1.6mm	0.8	12.5	-10	70	± 25	CMOS
KC2016K125.000C10E00	2.0 x 1.6mm	0.8	125	-10	70	± 50	CMOS
KC2016K125.000C16E00	2.0 x 1.6mm	0.8	125	-40	105	± 50	CMOS
KC2016K125.000C1GE00	2.0 x 1.6mm	0.8	125	-40	85	± 50	CMOS
KC2016K125.000C1SE00	2.0 x 1.6mm	0.8	125	-10	70	± 30	CMOS
KC2016K125.000C1UE00	2.0 x 1.6mm	0.8	125	-10	70	± 25	CMOS
