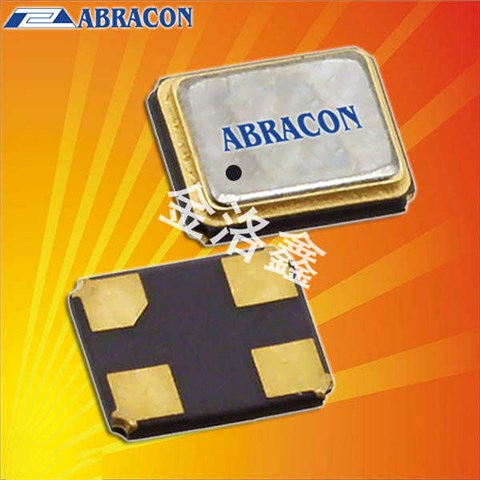

ATX-13-F-38.400MHz-F05-T,Abracon温补晶振,2016小型贴片晶振

JLX-1

ATX-13-F-38.400MHz-F05-T,Abracon温补晶振,2016小型贴片晶振

ATX-13-F-38.400MHz-F05-T是Abracon品牌旗下高性能温补晶振产品,专注于小型化与高精度的平衡.2016贴片晶振封装设计,让其轻松融入可穿戴设备,微型传感器等空间受限场景,38.400MHz标准频率完美匹配网络同步,数据传输等应用需求,±0.5ppm的超高频率稳定度远超普通晶振.产品采用密封陶瓷封装,具备优异的抗干扰性与环境适应性,同时支持自动化贴片组装,大幅提升生产效率,为物联网,智能电网等领域提供可靠时频保障.

JLX-2

ATX-13-F-38.400MHz-F05-T,Abracon温补晶振,2016小型贴片晶振

原厂型号Originalmodel：	ATX-13-F-38.400MHz-F05-T	品牌brand：	Abracon
Manufacturer品牌	Abracon晶体振荡器	OperatingTemperature温度	-40~85℃
Series型号	ATX-13	Current-Supply(Max)	-
Type类型	TCXO	PackageHeight高度	0.8mm
Frequency频率	38.4M	Termination脚位	4-pad
输出方式Output：	削峰正弦波	PackageType封装类型	4-smd
Voltage-Supply电压	1.68-3.63V	Packaging包装	TapeandReel
FrequencyStability频率稳定度	±0.5ppm	安装方式Installation：	Surfacemount
Size/Dimension尺寸	2016mm	最小包装数MPQ：	3000

JLX-3

ATX-13-F-38.400MHz-F05-T,Abracon温补晶振,2016小型贴片晶振

ATX-13-

ATX-13-F-38.400MHz-F05-T,Abracon温补晶振,2016小型贴片晶振
