Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振,Skyworks晶振,Si549有源晶振,549BAAB000118ACGR晶振,7050mm晶振,LVDS输出差分晶振,频率156.25MHz,工作温度-40~85°C,电压3.3V,频率稳定性20ppm,超低抖动晶振,低相噪晶振,6G以太网晶振,服务器晶振,电信交换机晶振,测试与测量设备晶振.
Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振特点：
•I2C可编程到任何频率从0.2到1500 MHz，分辨率< 1 ppb
•超低抖动:95 fs类型RMS (12 kHz - 20 MHz)
•配置多达4引脚可选择的启动频率
•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)
•出色的PSNR和电源抗噪性:-80 dBc类型
•3.3 V, 2.5 V和1.8 V VDD供电操作从相同的零件号
•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS输出选项
•2.5x3.2, 3.2x5, 5x7 mm包装选项
•样品交付周期为1-2周
Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振参数表
项目
符号
规格说明
条件
额定频率
f_nom
156.25MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
3.3V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±20 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
121mA Max
LVDS
对称性（占空比）
SYM
45%~55%
在输出交叉点
输出电压
VOC
1.275V Max
LVDS
VO
0.9Vpp Max
输入电压
VIH
70%VDD Min
VIL
30%VDD Max
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
3ms Max
相位抖动
tpj
150fs Max
100 MHz ≤ FCLK < 200 MHz

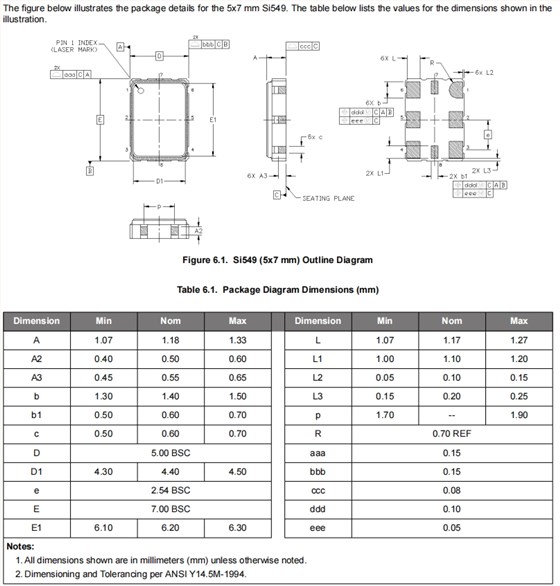

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振尺寸图
