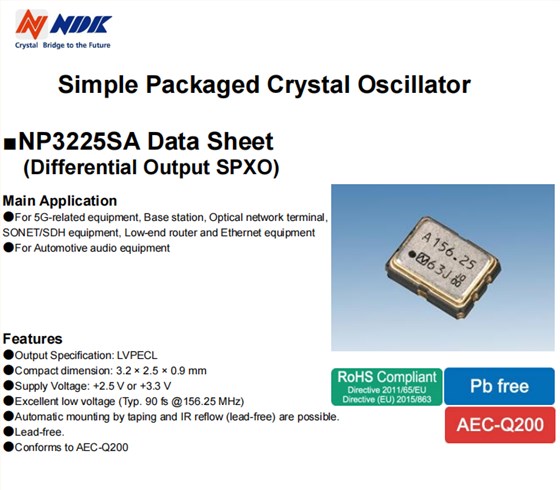

NSC5080A-LVPECL石英晶振-汽车音响控制器专用晶振,日本NDK晶振,NP3225SA进口晶体振荡器,NSC5080A有源晶振,LVPECL石英晶振,频率122.88MHz,电压2.5V,工作温度-40~85°C,3225mm车规晶振,小体积SMD晶振,汽车音响控制器专用晶振,6G相关设备晶振,6G基站晶振,网络终端晶振,以太网设备晶振,低端路由器晶振.
NSC5080A-LVPECL石英晶振-汽车音响控制器专用晶振特点：
●输出规格:LVPECL
NSC5080A-LVPECL石英晶振-汽车音响控制器专用晶振 参数表
| 项目 | 符号 | 数值 | 注意 | ||
| 频率 | fnom | 122.88MHz | |||
| 电压 | VCC | +2.5 V | |||
| 电压消耗运行 | ICC | 60mA max | at 25 °C | ||
| 输出水平 | - | LVPECL | |||
| 负载 | RL | 50Ω | Connect to VCC- 2.0 V | ||
| 工作温度 | Topr | -40°C to +85°C | |||
| 频率公差 | Δf/fnom | ±50ppm | *1 | ||
| 输出电压 | VOL |
VCC- 1.81Vmin VCC- 1.62Vmax |
-40 to +85 °C | ||
| VOH |
VCC- 1.025Vmin VCC-0.88Vmax |
||||
| 上升下降时间 | tr/tf | 1ns max | 20 % to 80 % waveform | ||
| 对称 | SYM | 45%min -55%max | at 50 % Waveform | ||
| 启动时间 | tsu | 10ms max | |||
| 相位抖动 | tpj | 1ps | *2 | ||
| 输出波形 | - | Square wave | |||
| 储存温度 | T_stg | -55°Cto+125°C | |||

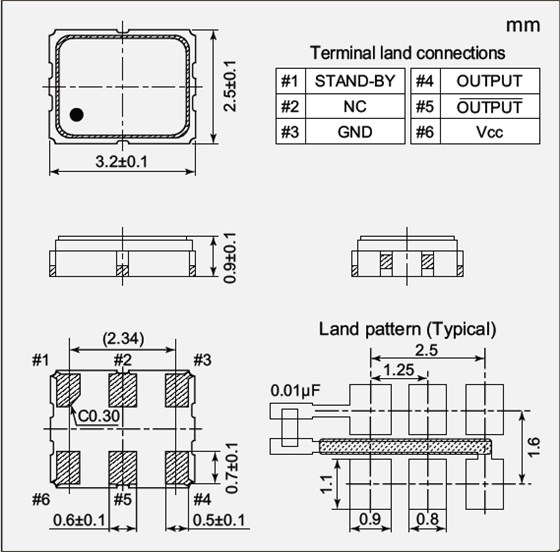

NSC5080A-LVPECL石英晶振-汽车音响控制器专用晶振尺寸图
| 型号 | 频率[MHz] | 规格编号 | 尺寸(LxW)[mm] | 输出方式 | 工作温度[℃] | 保存温度[℃] | 电源电压[V] |
| NP3225SA | 100MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 122.88MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 100MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 122.88MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 148MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 156.25MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 200MHZ | NSC5236A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 50MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 100MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 125MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 135MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 148MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 156.25MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 200MHZ | NSC5236B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 148MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 156.25MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 200MHZ | NSC5238A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 50MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 100MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 125MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 135MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 148MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 156.25MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 200MHZ | NSC5238B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SC | 100MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 100MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SAB | 100MHZ | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SAB | 125MHZ | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SAB | 156.25MHZ | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SAB | 100MHZ | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAB | 125MHZ | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAB | 156.25MHZ | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 100MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 125MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 156.25MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 100MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 125MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 156.25MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 100MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 156.25MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBD | 100MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBD | 156.25MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SCD | 100MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SCD | 156.25MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP5032SA | 100MHZ | NSC5400A | 5.0x3.2 | LVPECL | 0?70 | -55?+125 | +3.3±0.33 |
| NP5032SA | 102.564MHZ | NSC5400A | 5.0x3.2 | LVPECL | 0?70 | -55?+125 | +3.3±0.33 |
| NP5032SA | 125MHZ | NSC5400A | 5.0x3.2 | LVPECL | 0?70 | -55?+125 | +3.3±0.33 |
| NP5032SA | 133.33MHZ | NSC5400A | 5.0x3.2 | LVPECL | 0?70 | -55?+125 | +3.3±0.33 |
| NP5032SA | 133.333MHZ | NSC5400A | 5.0x3.2 | LVPECL | 0?70 | -55?+125 | +3.3±0.33 |
| NP5032SA | 148.5MHZ | NSC5400A | 5.0x3.2 | LVPECL | 0?70 | -55?+125 | +3.3±0.33 |
| NP5032SA | 156.25MHZ | NSC5400A | 5.0x3.2 | LVPECL | 0?70 | -55?+125 | +3.3±0.33 |
| NP5032SA | 100MHZ | NSC5400B | 5.0x3.2 | LVPECL | 0?85 | -55?+125 | +3.3±0.33 |
