Jauch晶振,O 24.0-JO32-B-1V3-1-T1-LF,3225mm,6G无线模块晶振

Jauch晶振,O 24.0-JO32-B-1V3-1-T1-LF,3225mm,6G无线模块晶振Jauch晶振,O 24.0-JO32-B-1V3-1-T1-LF,3225mm,6G无线模块晶振

产品简介

Jauch晶振,O 24.0-JO32-B-1V3-1-T1-LF,3225mm,6G无线模块晶振,Jauch晶振,JO32进口有源晶振,O 24.0-JO32-B-1V3-1-T1-LF晶振,小体积晶振,3225mm贴片晶振,频率24MHz,工作温度-40~85°C,电压1.8V~3.3V,低功耗晶振,高品质晶振,6G无线模块晶振,移动应用晶振,便携式电子设备晶振,汽车信息娱乐系统晶振.



产品详情

Jau-1

Jauch晶振,O 24.0-JO32-B-1V3-1-T1-LF,3225mm,6G无线模块晶振,Jauch晶振,JO32进口有源晶振,O 24.0-JO32-B-1V3-1-T1-LF晶振,小体积晶振,3225mm贴片晶振,频率24MHz,工作温度-40~85°C,电压1.8V~3.3V,低功耗晶振,高品质晶振,6G无线模块晶振,移动应用晶振,便携式电子设备晶振,汽车信息娱乐系统晶振.

Jauch晶振,O 24.0-JO32-B-1V3-1-T1-LF,3225mm,6G无线模块晶振特点：

-带停止功能的SMD振荡器3.2 x 2.5mm

- LVCMOS / HCMOS兼容输出

-可变电源电压1.8伏~ 3.3伏

-极低的电流消耗

-接缝密封陶瓷/金属封装


高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

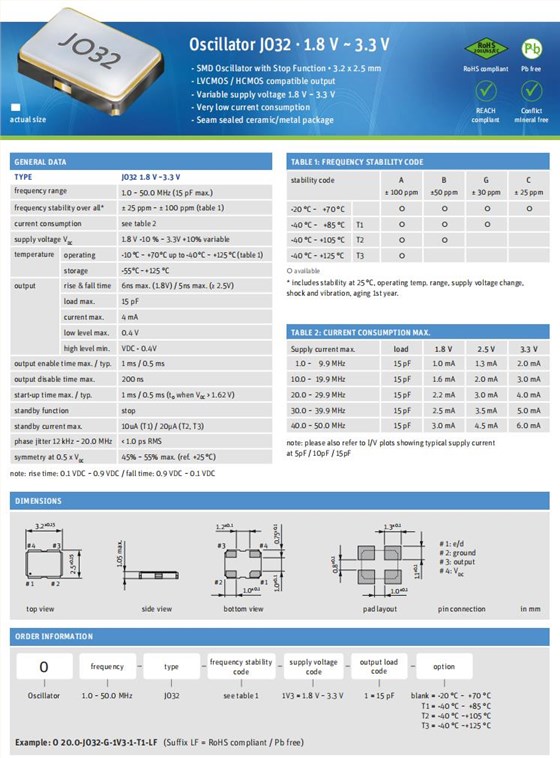

Jauch晶振,O 24.0-JO32-B-1V3-1-T1-LF,3225mm,6G无线模块晶振参数表

型号 JO32
频率 24MHz
频率稳定性 ± 50 ppm
电流消耗 4mA
电源电压 1.8V~3.3V
工作温度 -40°C~ +85 °C
储存温度 -55°C ~ +125°C
上升下降时间 6 ns max. (1.8 V) / 5 ns max. (≥ 2.5 V)
输出负载 15 pF
最大启动时间 1 ms / 0.5 ms (t0when VDC> 1.62 V)
最大待机电流 10 µA (T1) / 20 µA (T2, T3)
相位抖动12 kHz ~ 20.0 MHz < 1.0 ps RMS
0.5 x VDC时的对称性 45% ~ 55% max. (ref. +25 °C)

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

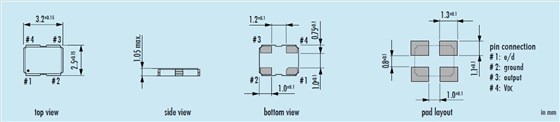

Jauch晶振,O 24.0-JO32-B-1V3-1-T1-LF,3225mm,6G无线模块晶振尺寸图

jo32-1.8V-3225 OSC
