奥斯康利美国高品质晶振,276环保晶振,276-16.0M-30-L-TR网络终端晶振

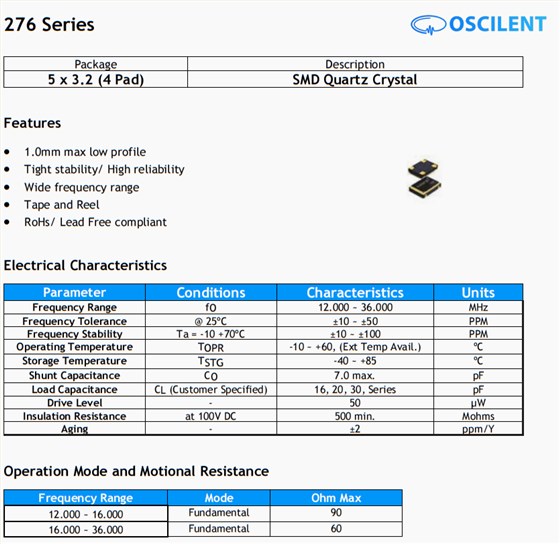

参数
条件
特点
单位
频率
fO
12.000 ~ 36.000
MHz
频率容差
@ 25ºC
±10 ~ ±50
PPM
频率稳定度
Ta = -10 +70ºC
±10 ~ ±100
PPM
工作温度
TOPR
-10 ~ +60, (Ext Temp Avail.)
ºC
储存温度
TSTG
-40 ~ +85
ºC
分流电容
CO
7.0 max.
pF
负载电容
CL (Customer Specified)
16, 20, 30, Series
pF
驱动电平
-
50
µW
绝缘电阻
at 100V DC
500 min.
Mohms
老化
-
±2
ppm/Y
Oscilent美国进口晶振,151-7.3728M-SR-W-TR智能机器人晶振,151无源插件晶振
| 编码 | 品牌 | 型号 | 工作温度 | 频率 | 频率稳定度 | 频率容差 | 负载电容 |
| 151-16.0M-20-W | Oscilent | 151 | -40℃ ~ 85℃ | 16 MHz | ±50ppm | ±30ppm | 20 pF |
| 151-3.6864M-10-W-TR | Oscilent | 151 | -40℃ ~ 85℃ | 3.6864 MHz | ±50ppm | ±30ppm | 10 pF |
| 151-7.3728M-SR-W-TR | Oscilent | 151 | -40℃ ~ 85℃ | 7.3728 MHz | ±50ppm | ±30ppm | |
| 250-11.0592M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 11.0592 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-11.625M-03-T-TR | Oscilent | 250 | -30℃ ~ 80℃ | 11.625 MHz | ±50ppm | ±30ppm | 3 pF |
| 250-12.0M-20-P-TR | Oscilent | 250 | 0℃ ~ 50℃ | 12 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-12.0M-30-30GS-TR | Oscilent | 250 | -20℃ ~ 70℃ | 12 MHz | ±30ppm | ±30ppm | 30 pF |
| 250-12.9024M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 12.9024 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-14.7456M-20-S | Oscilent | 250 | -20℃ ~ 70℃ | 14.7456 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-14.7456M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 14.7456 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-16.0M-20-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 16 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-16.777216M-20-S | Oscilent | 250 | -20℃ ~ 70℃ | 16.777216 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-18.432M-SR-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 18.432 MHz | ±50ppm | ±30ppm | |
| 250-20.0M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-24.0M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 24 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-25.0M-12-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 25 MHz | ±50ppm | ±30ppm | 12 pF |
| 250-26.0M-16-15HS-TR | Oscilent | 250 | -20℃ ~ 70℃ | 26 MHz | ±20ppm | ±15ppm | 16 pF |
| 250-29.4912M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 29.4912 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-29.4912M-20-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 29.4912 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-3.6864M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 3.6864 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-3.6864M-20-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 3.6864 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-4.0M-18-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 4 MHz | ±50ppm | ±30ppm | 18 pF |
| 250-4.801565M-03-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 4.801565 MHz | ±50ppm | ±30ppm | 3 pF |
| 250-4.9152M-SR-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 4.9152 MHz | ±50ppm | ±30ppm | |
| 250-5.645315M-03-W | Oscilent | 250 | -40℃ ~ 85℃ | 5.645315 MHz | ±50ppm | ±30ppm | 3 pF |
| 250-6.612817M-03-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 6.612817 MHz | ±50ppm | ±30ppm | 3 pF |
| 250-7.3728M-12-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 7.3728 MHz | ±50ppm | ±30ppm | 12 pF |
| 250-9.9375M-03-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 9.9375 MHz | ±50ppm | ±30ppm | 3 pF |
| 253-11.0592M-18-W-TR | Oscilent | 253 | -40℃ ~ 85℃ | 11.0592 MHz | ±50ppm | ±30ppm | 18 pF |
| 253-7.3728M-SR-S-TR | Oscilent | 253 | -20℃ ~ 70℃ | 7.3728 MHz | ±50ppm | ±30ppm | |
| 276-25.0M-20-S-TR | Oscilent | 276 | -20℃ ~ 70℃ | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| 278-20.0M-20-W | Oscilent | 278 | -40℃ ~ 85℃ | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| 278-20.0M-20-W-TR | Oscilent | 278 | -40℃ ~ 85℃ | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| 278-24.0M-18-S-TR | Oscilent | 278 | -20℃ ~ 70℃ | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| 278-24.545454M-12-W-TR | Oscilent | 278 | -40℃ ~ 85℃ | 24.545454 MHz | ±50ppm | ±30ppm | 12 pF |
| 278-25.0M-20-W-TR | Oscilent | 278 | -40℃ ~ 85℃ | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| 223-000306-20-LF-TR | Oscilent | 223 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 6 pF | |
| 223-000312-20-LF-TR | Oscilent | 223 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12 pF | |
| 223-000312-20-TR | Oscilent | 223 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12 pF | |
| 224-000307-20-TR | Oscilent | 224 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 7 pF |
