FC8AQCCMC3.6864-T1,汽车级晶体,FC8AQ贴片晶振,FOX晶振
FC8AQCCMC3.6864-T1是FOX品牌专为汽车电子场景设计的汽车级晶振,输出频率精准锁定3.6864MHz,这一频率是汽车实时时钟(RTC),车身控制模块的标准基准频率,在-40℃~125℃汽车宽温区间内(覆盖极寒到发动机舱高温环境),频率稳定度严格控制在±15ppm以内,部分高端型号可达±10ppm,为汽车电子设备提供可靠时序支撑.该晶振采用高稳定性石英晶体内核与抗硫化封装工艺,能抵御汽车尾气中的硫化物腐蚀,避免晶振性能衰减,在汽车智能钥匙,胎压监测系统(TPMS)等低功耗设备中,可通过稳定的3.6864MHz频率实现精准定时(如TPMS每30秒采集一次胎压数据),同时低功耗特性延长设备电池寿命(可达3~5年),减少车主更换电池的频率.
FC8AQCCMC3.6864-T1,汽车级晶体,FC8AQ贴片晶振,FOX晶振
| 原厂型号Original model ： | FC8AQCCMC3.6864-T1 | 品牌 brand ： | FOX无源晶振 |
| 品牌 brand ： | FOX无源晶振 | ESR（等效串联电阻） Resistance) | 150 Ohms |
| 型号名称Model name： | FC8AQ石英晶振 | 温度 Operating Temperature | 0°C ~ 70°C |
| Type 系列： | MHz Crystal | 脚位 Termination： | 2 pad |
| 频率frequency ： | 3.6864 MHz | 封装类型 Package Type： | 2-SMD |
| Frequency Stability频率稳定度 | ±30ppm | 高度 Package Height： | 1.70mm |
| frequency tolerance频率容差 | ±30ppm | 最小包装数 MPQ ： | - |
| Load capacitance负载电容 | 20pF | 包装 Packaging： | Tape and Reel |

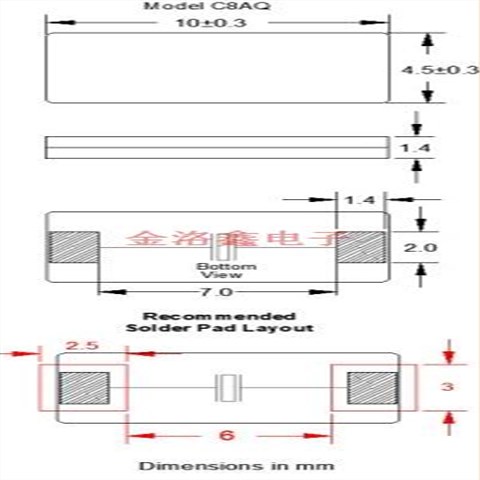

| Size / Dimension 尺寸 | 10.00mm x 4.50mm | 安装方式 Mounting Style： | Surface Mount |
FC8AQCCMC3.6864-T1,汽车级晶体,FC8AQ贴片晶振,FOX晶振
FC8AQCCMC3.6864-T1,汽车级晶体,FC8AQ贴片晶振,FOX晶振
| FC4SDCBMF10.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF8.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF3.6864-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKFSREIHM0.032768-T3 | FOX无源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FC4STCBMF20.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FK135EIHM0.032768-T3 | FOX无源晶振 | K135 | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms |
| FC5BQCCMC12.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC5BQCCMM25.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMM12.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMM8.0-T1 | FOX无源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM7.3728-T1 | FOX无源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FKFSXEIHM0.032768-T3 | FOX无源晶振 | FSXLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms |
| FKFSREIBM0.032768-T3 | FOX无源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 50 kOhms |
| FC8AQCCMC3.6864-T1 | FOX无源晶振 | FC8AQ | MHz Crystal | 3.6864 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC8AQCCMC4.0-T1 | FOX无源晶振 | FC8AQ | MHz Crystal | 4 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF11.0592-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF25.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF16.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF12.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF24.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMM25.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF14.7456-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMM8.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF7.3728-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF6.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 20pF | 120 Ohms |
| FC4SDCBMF4.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC3BQBBME12.0-T3 | FOX无源晶振 | FQ3225B | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 20pF | 120 Ohms |
| FC3BQBBMM25.0-T3 | FOX无源晶振 | FC3BQ | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 20pF | 80 Ohms |
| FKT38EIHD0.032768 | FOX无源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC4STCBMF10.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF25.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4STCBMF16.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF12.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF11.0592 | FOX无源晶振 | HC49SLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF8.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBMF7.3728 | FOX无源晶振 | HC49SLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBLF3.579545 | FOX无源晶振 | HC49SLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4STCBMF4.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC4STCBMF3.6864 | FOX无源晶振 | HC49SLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKT26EIHD0.032768 | FOX无源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FKT38EIHQ0.032768 | FOX无源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC5BQCCMC25.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC24.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC20.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC16.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC8.0-T1 | FOX无源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM6.0-T1 | FOX无源晶振 | C7BS | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC7.3728-T1 | FOX无源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC8AQCCMC6.0-T1 | FOX无源晶振 | FC8AQ | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF12.288-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMM16.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF18.432-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBLF3.579545-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4SDCBMM4.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC2BSBBMM16.0-T3 | FOX无源晶振 | FX252B | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 20pF | 200 Ohms |
| FC4STCBMF18.432 | FOX无源晶振 | HC49SLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF14.7456 | FOX无源晶振 | HC49SLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FKT26EIHQ0.032768 | FOX无源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC3BACALI16.0-T3 | FOX无源晶振 | C3BA | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 18pF | 100 Ohms |
| FC3BACBDI16.0-T3 | FOX无源晶振 | C3BA | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 8pF | 100 Ohms |
