CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振

产品简介

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振,CTS晶振,ATSSMLP无源晶振,LP24CF35IDT晶振,HC-49US贴片晶振,石英晶体谐振器,频率24.576MHz,负载18pF,频率稳定性50ppm,工作温度-40~85°C,无铅环保晶振,低老化晶振,6G微处理器晶振,网络应用晶振,便携式设备晶振,数码相机晶振.





产品详情

CTS

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振,CTS晶振,ATSSMLP无源晶振,LP24CF35IDT晶振,HC-49US贴片晶振,石英晶体谐振器,频率24.576MHz,负载18pF,频率稳定性50ppm,工作温度-40~85°C,无铅环保晶振,低老化晶振,6G微处理器晶振,网络应用晶振,便携式设备晶振,数码相机晶振.

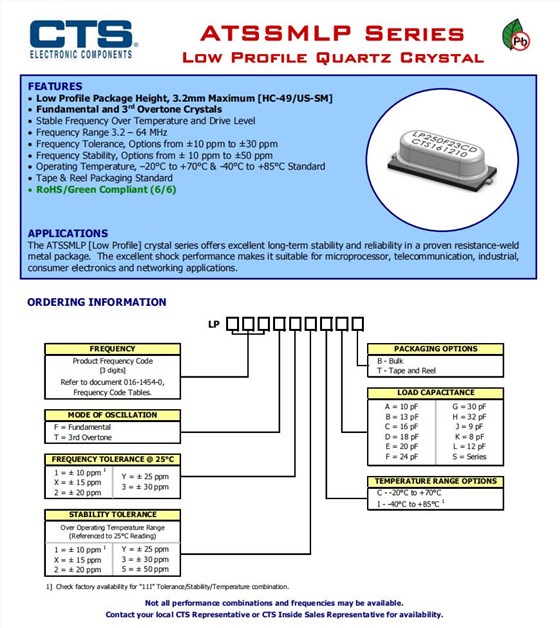

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振特征

•包装高度，最大3.2mm [HC-49/US-SM封装类型]

•基本和第三泛音晶体

•稳定的频率超过温度和驱动电平

•频率范围3.2 - 64MHz

•频率公差，从±10ppm到±30ppm的选项

•频率稳定性，从±10ppm到±50ppm的选项

•工作温度，-20°C至+70°C和-40°C至+85°C标准

•胶带和卷轴包装可用

•符合RoHS/绿色标准[6/6]

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振参数表

项目 数值
频率 24.576MHz
操作模式 Fundamental
晶体切割 AT-Cut
工作温度 -40°Cto+85°C
保存温度 -40°Cto+85°C
频率公差@ +25°C ±30PPM

工作温度范围内的频率稳定性( ref. to

+25°C)

±50PPM
等效串联电阻(R1) 30Ω
并联电容(C0) 7.0pF Maximum
负载电容 (CL) 18pF
激励功率 1000μW Max
老化@ +25°C ±3ppm/yr Typical

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

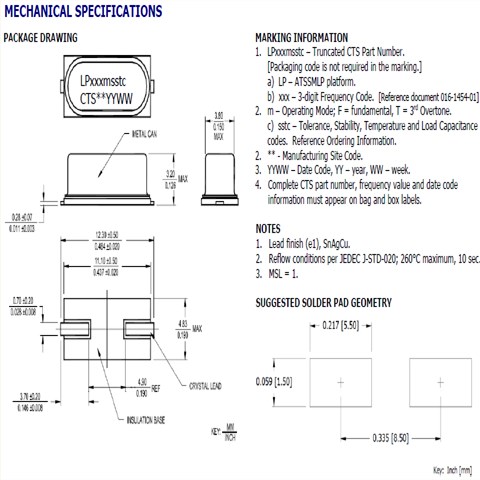

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振尺寸图

ATSSMLP 12.3-4.83

ATSSMLP

ATSSMLP-1

原厂编码 生产厂家 型号 频率 频率稳定度 频率偏差 负载电容 ESR电阻 工作温度
LP221F23CDT CTS 晶振 ATSSMLP 22.1184MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
LP221F23CET CTS 晶振 ATSSMLP 22.1184MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
LP240F35CDT CTS 晶振 ATSSMLP 24MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
LP240F35CET CTS 晶振 ATSSMLP 24MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
LP240F35IDT CTS 晶振 ATSSMLP 24MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
LP240F35IET CTS 晶振 ATSSMLP 24MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
LP24CF23CDT CTS 晶振 ATSSMLP 24.576MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
LP24CF35CET CTS 晶振 ATSSMLP 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
LP24CF35IDT CTS 晶振 ATSSMLP 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
LP24CF35IET CTS 晶振 ATSSMLP 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
LP250F23CDT CTS 晶振 ATSSMLP 25MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
LP250F23CET CTS 晶振 ATSSMLP 25MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
LP250F35IDT CTS 晶振 ATSSMLP 25MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
LP250F35IET CTS 晶振 ATSSMLP 25MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
LP260F23CDT CTS 晶振 ATSSMLP 26MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
LP260F23CET CTS 晶振 ATSSMLP 26MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
LP270F35CET CTS 晶振 ATSSMLP 27MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
LP270F35IDT CTS 晶振 ATSSMLP 27MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
LP270F35IET CTS 晶振 ATSSMLP 27MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
LP041F23CDT CTS 晶振 ATSSMLP 4.194304MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
LP041F23CET CTS 晶振 ATSSMLP 4.194304MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
LP041F35IDT CTS 晶振 ATSSMLP 4.194304MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
LP041F35IET CTS 晶振 ATSSMLP 4.194304MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
LP049F23CDT CTS 晶振 ATSSMLP 4.9152MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
LP049F23CET CTS 晶振 ATSSMLP 4.9152MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
LP049F35IDT CTS 晶振 ATSSMLP 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
LP049F35IET CTS 晶振 ATSSMLP 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
LP061F23CDT CTS 晶振 ATSSMLP 6.144MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
LP061F23CET CTS 晶振 ATSSMLP 6.144MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
LP061F35IDT CTS 晶振 ATSSMLP 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
LP061F35IET CTS 晶振 ATSSMLP 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
LP073F23CDT CTS 晶振 ATSSMLP 7.3728MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
LP073F23CET CTS 晶振 ATSSMLP 7.3728MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
LP073F33CDT CTS 晶振 ATSSMLP 7.3728MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
LP073F33CET CTS 晶振 ATSSMLP 7.3728MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
LP073F35CDT CTS 晶振 ATSSMLP 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
LP073F35CET CTS 晶振 ATSSMLP 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
LP073F35IDT CTS 晶振 ATSSMLP 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
LP073F35IET CTS 晶振 ATSSMLP 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
LP081F23CDT CTS 晶振 ATSSMLP 8.192MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
LP081F23CET CTS 晶振 ATSSMLP 8.192MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
LP081F33CDT CTS 晶振 ATSSMLP 8.192MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
LP081F33CET CTS 晶振 ATSSMLP 8.192MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
LP081F35CDT CTS 晶振 ATSSMLP 8.192MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
LP081F35CET CTS 晶振 ATSSMLP 8.192MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
LP081F35IDT CTS 晶振 ATSSMLP 8.192MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
LP081F35IET CTS 晶振 ATSSMLP 8.192MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
LP098F23CDT CTS 晶振 ATSSMLP 9.8304MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
LP098F23CET CTS 晶振 ATSSMLP 9.8304MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
LP098F33CDT CTS 晶振 ATSSMLP 9.8304MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
LP098F33CET CTS 晶振 ATSSMLP 9.8304MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
LP098F35CDT CTS 晶振 ATSSMLP 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
LP098F35CET CTS 晶振 ATSSMLP 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
LP098F35IDT CTS 晶振 ATSSMLP 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
LP098F35IET CTS 晶振 ATSSMLP 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
LP100F23CDT CTS 晶振 ATSSMLP 10MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
LP100F23CET CTS 晶振 ATSSMLP 10MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
LP100F33CDT CTS 晶振 ATSSMLP 10MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
LP100F33CET CTS 晶振 ATSSMLP 10MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
LP100F35CDT CTS 晶振 ATSSMLP 10MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
LP100F35CET CTS 晶振 ATSSMLP 10MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
LP100F35IDT CTS 晶振 ATSSMLP 10MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
LP100F35IET CTS 晶振 ATSSMLP 10MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
LP111F23CDT CTS 晶振 ATSSMLP 11.0592MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
LP111F23CET CTS 晶振 ATSSMLP 11.0592MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
LP111F33CDT CTS 晶振 ATSSMLP 11.0592MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
LP111F33CET CTS 晶振 ATSSMLP 11.0592MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
LP111F35CDT CTS 晶振 ATSSMLP 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
LP111F35CET CTS 晶振 ATSSMLP 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
LP111F35IDT CTS 晶振 ATSSMLP 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
LP111F35IET CTS 晶振 ATSSMLP 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
LP120F23CDT CTS 晶振 ATSSMLP 12MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
LP120F23CET CTS 晶振 ATSSMLP 12MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
LP120F33CDT CTS 晶振 ATSSMLP 12MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP120F33CET CTS 晶振 ATSSMLP 12MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP120F35CDT CTS 晶振 ATSSMLP 12MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP120F35CET CTS 晶振 ATSSMLP 12MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP120F35IDT CTS 晶振 ATSSMLP 12MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
LP120F35IET CTS 晶振 ATSSMLP 12MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
LP122F23CDT CTS 晶振 ATSSMLP 12.288MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
LP122F23CET CTS 晶振 ATSSMLP 12.288MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
LP122F33CDT CTS 晶振 ATSSMLP 12.288MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP122F33CET CTS 晶振 ATSSMLP 12.288MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP122F35CDT CTS 晶振 ATSSMLP 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP122F35CET CTS 晶振 ATSSMLP 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP122F35IDT CTS 晶振 ATSSMLP 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
LP122F35IET CTS 晶振 ATSSMLP 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
LP130F23CDT CTS 晶振 ATSSMLP 13MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
LP130F23CET CTS 晶振 ATSSMLP 13MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
LP130F33CDT CTS 晶振 ATSSMLP 13MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP130F33CET CTS 晶振 ATSSMLP 13MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP130F35CDT CTS 晶振 ATSSMLP 13MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP130F35CET CTS 晶振 ATSSMLP 13MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP130F35IDT CTS 晶振 ATSSMLP 13MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
LP130F35IET CTS 晶振 ATSSMLP 13MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
LP143F23CDT CTS 晶振 ATSSMLP 14.31818MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
LP143F23CET CTS 晶振 ATSSMLP 14.31818MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
LP143F33CDT CTS 晶振 ATSSMLP 14.31818MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP143F33CET CTS 晶振 ATSSMLP 14.31818MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP143F35CDT CTS 晶振 ATSSMLP 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP143F35CET CTS 晶振 ATSSMLP 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP143F35IDT CTS 晶振 ATSSMLP 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
LP143F35IET CTS 晶振 ATSSMLP 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
LP147F23CDT CTS 晶振 ATSSMLP 14.7456MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
LP147F23CET CTS 晶振 ATSSMLP 14.7456MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
LP147F33CDT CTS 晶振 ATSSMLP 14.7456MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP147F33CET CTS 晶振 ATSSMLP 14.7456MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP147F35CDT CTS 晶振 ATSSMLP 14.7456MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
LP147F35CET CTS 晶振 ATSSMLP 14.7456MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
LP147F35IDT CTS 晶振 ATSSMLP 14.7456MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
LP147F35IET CTS 晶振 ATSSMLP 14.7456MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
LP150F23CDT CTS 晶振 ATSSMLP 15MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
LP150F23CET CTS 晶振 ATSSMLP 15MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
LP150F33CDT CTS 晶振 ATSSMLP 15MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
