NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振

产品简介

NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振,NKG晶振,CT20M热敏晶体,石英晶振,CT20M26.0000F10V11-100晶振,无源晶振,晶体谐振器,2016mm晶振,四脚贴片晶振,SMD晶振,频率26MHz,负载10pF,频率容差10ppm,工作温度-30~85°C,超小型晶振,高可靠性晶振,无铅环保晶振,6G电信应用程序晶振,蓝牙模块晶振,无线应用晶振,智能设备晶振.

产品详情

NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振,NKG晶振,CT20M热敏晶体,石英晶振,CT20M26.0000F10V11-100晶振,无源晶振,晶体谐振器,2016mm晶振,四脚贴片晶振,SMD晶振,频率26MHz,负载10pF,频率容差10ppm,工作温度-30~85°C,超小型晶振,高可靠性晶振,无铅环保晶振,6G电信应用程序晶振,蓝牙模块晶振,无线应用晶振,智能设备晶振.

NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振特点：

●内置热敏电阻100kΩ用于温度测量

●非常适合与内置温度补偿振荡器电路的ICs一起使用

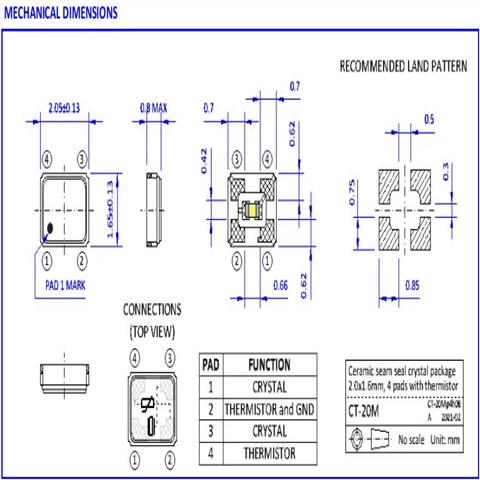

●高度可靠的包装尺寸2.0 x 1.6 x 0.7mm，带有4个衬垫

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

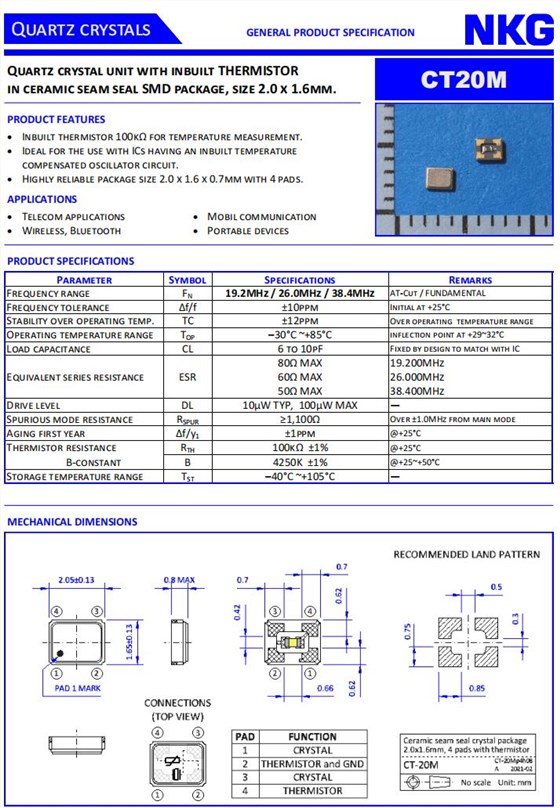

NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	26MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±10ppm	Other options available
Stability over operating temp.	TC	±10ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–30°C ~+85°C	Options available
Load capacitance	CL	10pF	Please specify load capacitance
Equivalent series resistance	ESR	60Ω MAX	26MHz
Drive level	DL	10µW TYP, 100µW MAX	-
Spurious mode resistance	RSPUR	≥1,100Ω	Over ±1.0MHz from main mode
Aging first year	Δf/y1	±1ppm	@+25°C
Storage temperature range	TST	–40°C ~+105°C	-
