CTS晶振,ATS480A-E,HC-49/US插件晶振,6G无线通信晶振

CTS晶振,ATS480A-E,HC-49/US插件晶振,6G无线通信晶振CTS晶振,ATS480A-E,HC-49/US插件晶振,6G无线通信晶振

产品简介

CTS晶振,ATS480A-E,HC-49/US插件晶振,6G无线通信晶振,CTS进口晶振,ATS无源晶振,HC-49/US插件晶振,ATS480A-E晶振,石英晶体谐振器,频率48MHz,负载20pF,频率稳定性30ppm,工作温度-40~85°C,无铅环保晶振，高稳定晶振,6G无线通信晶振,微处理器晶振,消费电子产品应用晶振,网络终端晶振,工业应用晶振.






产品详情

CTS

CTS晶振,ATS480A-E,HC-49/US插件晶振,6G无线通信晶振,CTS进口晶振,ATS无源晶振,HC-49/US插件晶振,ATS480A-E晶振,石英晶体谐振器,频率48MHz,负载20pF,频率稳定性30ppm,工作温度-40~85°C,无铅环保晶振，高稳定晶振,6G无线通信晶振,微处理器晶振,消费电子产品应用晶振,网络终端晶振,工业应用晶振.

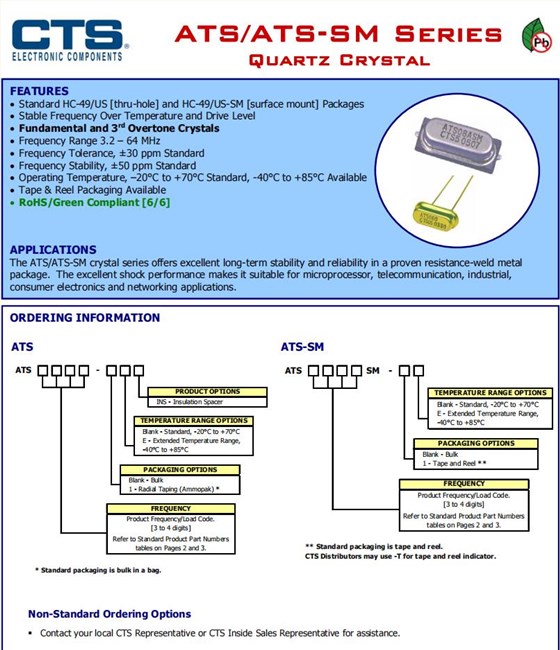

CTS晶振,ATS480A-E,HC-49/US插件晶振,6G无线通信晶振特征

•标准HC-49/US[通孔]封装

•稳定的频率超过温度和驱动水平

•基本和第三泛音晶体

•频率范围3.2 - 64mhz

•频率公差，±30ppm标准

•频率稳定性，±50 ppm标准

•工作温度，-20°C至+70°C标准，-40°C至+85°C可选

•磁带和卷轴包装可用

•符合RoHS/绿色标准[6/6]

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

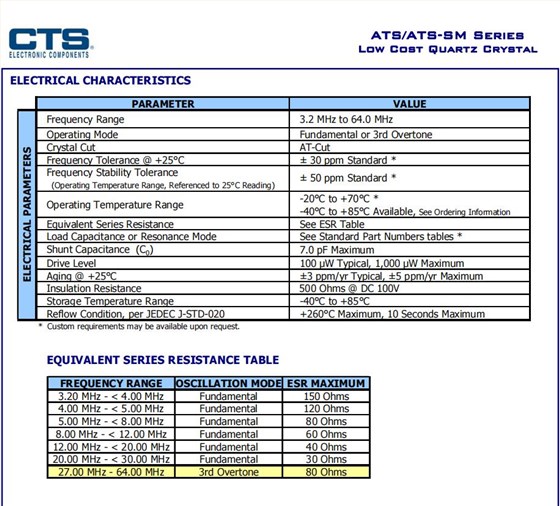

CTS晶振,ATS480A-E,HC-49/US插件晶振,6G无线通信晶振参数

项目 数值
频率 48MHz
操作模式 Fundamental
晶体切割 AT-Cut
工作温度 -40°Cto+85°C
保存温度 -40°Cto+85°C
频率公差@ +25°C ±30PPM

工作温度范围内的频率稳定性( ref. to

+25°C)

±50PPM
等效串联电阻(R1) 80Ω
并联电容(C0) 7.0pF Maximum
负载电容 (CL) 20pF
激励功率 1000μW Max
老化@ +25°C ±3ppm/yr Typical
绝缘电阻 500 Ohms @ DC 100V

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

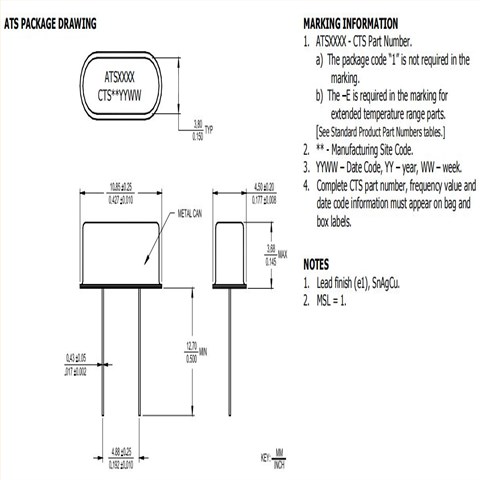

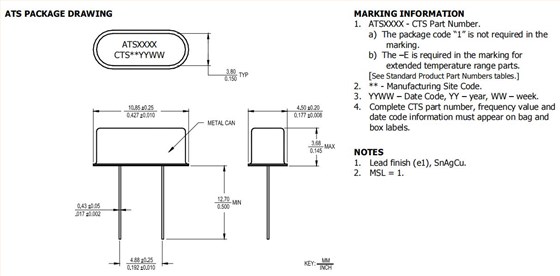

CTS晶振,ATS480A-E,HC-49/US插件晶振,6G无线通信晶振尺寸图

ats（2）

原厂编码 生产厂家 型号 频率 频率稳定度 频率偏差 负载电容 ESR电阻 工作温度
ATS16B CTS 晶振 ATS 16MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
ATS073-E CTS 晶振 ATS 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
ATS080B CTS 晶振 ATS 8MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
ATS100B-E CTS 晶振 ATS 10MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
ATS061B-E CTS 晶振 ATS 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
ATS080C CTS 晶振 ATS 8MHz ±50ppm ±30ppm 32pF 60 Ohm -20°C ~ 70°C
ATS040 CTS 晶振 ATS 4MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
ATS200C CTS 晶振 ATS 20MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
ATS147B CTS 晶振 ATS 14.7456MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
ATS12A CTS 晶振 ATS 12MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS042 CTS 晶振 ATS 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
ATS245A CTS 晶振 ATS 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
ATS120B CTS 晶振 ATS 12MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
ATS25A-E CTS 晶振 ATS 25MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
ATS040-E CTS 晶振 ATS 4MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
ATS204 CTS 晶振 ATS 20.48MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
ATS08A CTS 晶振 ATS 8MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
ATS10A-E CTS 晶振 ATS 10MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
ATS250-E CTS 晶振 ATS 25MHz ±50ppm ±30ppm Series 30 Ohm -40°C ~ 85°C
ATS147B-E CTS 晶振 ATS 14.7456MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
ATS080B-E CTS 晶振 ATS 8MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
ATS250B-E CTS 晶振 ATS 25MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
ATS100 CTS 晶振 ATS 10MHz ±50ppm ±30ppm Series 60 Ohm -20°C ~ 70°C
ATS100B CTS 晶振 ATS 10MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
ATS120B-E CTS 晶振 ATS 12MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
ATS16B-E CTS 晶振 ATS 16MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
ATS037 CTS 晶振 ATS 3.6864MHz ±50ppm ±30ppm 20pF 150 Ohm -20°C ~ 70°C
ATS240B CTS 晶振 ATS 24MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
ATS040B-E CTS 晶振 ATS 4MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
ATS143B CTS 晶振 ATS 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
ATS036 CTS 晶振 ATS 3.579545MHz ±50ppm ±30ppm 18pF 150 Ohm -20°C ~ 70°C
ATS037B-E CTS 晶振 ATS 3.6864MHz ±50ppm ±30ppm 18pF 150 Ohm -40°C ~ 85°C
ATS036-E CTS 晶振 ATS 3.579545MHz ±50ppm ±30ppm 18pF 150 Ohm -40°C ~ 85°C
ATS080 CTS 晶振 ATS 8MHz ±50ppm ±30ppm Series 60 Ohm -20°C ~ 70°C
ATS040B CTS 晶振 ATS 4MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
ATS037-E CTS 晶振 ATS 3.6864MHz ±50ppm ±30ppm 20pF 150 Ohm -40°C ~ 85°C
ATS037B CTS 晶振 ATS 3.6864MHz ±50ppm ±30ppm 18pF 150 Ohm -20°C ~ 70°C
ATS19A-E CTS 晶振 ATS 19.6608MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS098 CTS 晶振 ATS 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
ATS143B-E CTS 晶振 ATS 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
ATS037A-E CTS 晶振 ATS 3.6864MHz ±50ppm ±30ppm Series 150 Ohm -40°C ~ 85°C
ATS147-E CTS 晶振 ATS 14.7456MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS120 CTS 晶振 ATS 12MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS20B-E CTS 晶振 ATS 20MHz ±50ppm ±30ppm 50pF 30 Ohm -40°C ~ 85°C
ATS036B CTS 晶振 ATS 3.579545MHz ±50ppm ±30ppm Series 150 Ohm -20°C ~ 70°C
ATS245-E CTS 晶振 ATS 24.576MHz ±50ppm ±30ppm Series 30 Ohm -40°C ~ 85°C
ATS111-E CTS 晶振 ATS 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
ATS08A-E CTS 晶振 ATS 8MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
ATS111 CTS 晶振 ATS 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
ATS200 CTS 晶振 ATS 20MHz ±50ppm ±30ppm Series 30 Ohm -20°C ~ 70°C
ATS073B-E CTS 晶振 ATS 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
ATS18A CTS 晶振 ATS 18.432MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS24B-E CTS 晶振 ATS 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
ATS22A-E CTS 晶振 ATS 22.1184MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
ATS184-E CTS 晶振 ATS 18.432MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS16A CTS 晶振 ATS 16MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS250 CTS 晶振 ATS 25MHz ±50ppm ±30ppm Series 30 Ohm -20°C ~ 70°C
ATS184 CTS 晶振 ATS 18.432MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS18A-E CTS 晶振 ATS 18.432MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS250B CTS 晶振 ATS 25MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
ATS037A CTS 晶振 ATS 3.6864MHz ±50ppm ±30ppm Series 150 Ohm -20°C ~ 70°C
ATS12A-E CTS 晶振 ATS 12MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS080C-E CTS 晶振 ATS 8MHz ±50ppm ±30ppm 32pF 60 Ohm -40°C ~ 85°C
ATS122B CTS 晶振 ATS 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
ATS240C-E CTS 晶振 ATS 24MHz ±50ppm ±30ppm 12pF 30 Ohm -40°C ~ 85°C
ATS200C-E CTS 晶振 ATS 20MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
ATS060 CTS 晶振 ATS 6MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
ATS098B CTS 晶振 ATS 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
ATS061B CTS 晶振 ATS 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
ATS098B-E CTS 晶振 ATS 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
ATS20B CTS 晶振 ATS 20MHz ±50ppm ±30ppm 50pF 30 Ohm -20°C ~ 70°C
ATS073 CTS 晶振 ATS 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
ATS073B CTS 晶振 ATS 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
ATS196B CTS 晶振 ATS 19.6608MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
ATS111A-E CTS 晶振 ATS 11.0592MHz ±50ppm ±30ppm Series 60 Ohm -40°C ~ 85°C
ATS111A CTS 晶振 ATS 11.0592MHz ±50ppm ±30ppm Series 60 Ohm -20°C ~ 70°C
ATS060B CTS 晶振 ATS 6MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
ATS200-E CTS 晶振 ATS 20MHz ±50ppm ±30ppm Series 30 Ohm -40°C ~ 85°C
ATS196 CTS 晶振 ATS 19.6608MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS24A CTS 晶振 ATS 24MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
ATS184B-E CTS 晶振 ATS 18.432MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
ATS20A CTS 晶振 ATS 20MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
ATS184B CTS 晶振 ATS 18.432MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
ATS080-E CTS 晶振 ATS 8MHz ±50ppm ±30ppm Series 60 Ohm -40°C ~ 85°C
ATS120C-E CTS 晶振 ATS 12MHz ±50ppm ±30ppm 32pF 40 Ohm -40°C ~ 85°C
ATS240C CTS 晶振 ATS 24MHz ±50ppm ±30ppm 12pF 30 Ohm -20°C ~ 70°C
ATS111C-E CTS 晶振 ATS 11.0592MHz ±50ppm ±30ppm 32pF 60 Ohm -40°C ~ 85°C
ATS060B-E CTS 晶振 ATS 6MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
ATS04A-E CTS 晶振 ATS 4MHz ±50ppm ±30ppm Series 120 Ohm -40°C ~ 85°C
ATS24A-E CTS 晶振 ATS 24MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
ATS036B-E CTS 晶振 ATS 3.579545MHz ±50ppm ±30ppm Series 150 Ohm -40°C ~ 85°C
ATS147 CTS 晶振 ATS 14.7456MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS20A-E CTS 晶振 ATS 20MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
ATS100-E CTS 晶振 ATS 10MHz ±50ppm ±30ppm Series 60 Ohm -40°C ~ 85°C
ATS240B-E CTS 晶振 ATS 24MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
ATS073A-E CTS 晶振 ATS 7.3728MHz ±50ppm ±30ppm Series 80 Ohm -40°C ~ 85°C
ATS147A CTS 晶振 ATS 14.7456MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS15A CTS 晶振 ATS 15.36MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS16A-E CTS 晶振 ATS 16MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS049B-E CTS 晶振 ATS 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
ATS196-E CTS 晶振 ATS 19.6608MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS160 CTS 晶振 ATS 16MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS04A CTS 晶振 ATS 4MHz ±50ppm ±30ppm Series 120 Ohm -20°C ~ 70°C
ATS120C CTS 晶振 ATS 12MHz ±50ppm ±30ppm 32pF 40 Ohm -20°C ~ 70°C
ATS073A CTS 晶振 ATS 7.3728MHz ±50ppm ±30ppm Series 80 Ohm -20°C ~ 70°C
ATS221B CTS 晶振 ATS 22.1184MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
ATS111C CTS 晶振 ATS 11.0592MHz ±50ppm ±30ppm 32pF 60 Ohm -20°C ~ 70°C
ATS22A CTS 晶振 ATS 22.1184MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
ATS10A CTS 晶振 ATS 10MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
ATS049B CTS 晶振 ATS 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
ATS111B CTS 晶振 ATS 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
ATS120-E CTS 晶振 ATS 12MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS050 CTS 晶振 ATS 5.0688MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
ATS19A CTS 晶振 ATS 19.6608MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS160-E CTS 晶振 ATS 16MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS221B-E CTS 晶振 ATS 22.1184MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
ATS122 CTS 晶振 ATS 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS143 CTS 晶振 ATS 14.31818MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS245 CTS 晶振 ATS 24.576MHz ±50ppm ±30ppm Series 30 Ohm -20°C ~ 70°C
ATS111B-E CTS 晶振 ATS 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
ATS122B-E CTS 晶振 ATS 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
ATS147A-E CTS 晶振 ATS 14.7456MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS245A-E CTS 晶振 ATS 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
ATS041C CTS 晶振 ATS 4.194304MHz ±50ppm ±30ppm 12pF 120 Ohm -20°C ~ 70°C
ATS041C-E CTS 晶振 ATS 4.194304MHz ±50ppm ±30ppm 12pF 120 Ohm -40°C ~ 85°C
ATS042A CTS 晶振 ATS 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
ATS042A-E CTS 晶振 ATS 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
ATS042B CTS 晶振 ATS 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
ATS042B-E CTS 晶振 ATS 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
ATS042-E CTS 晶振 ATS 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
ATS049A CTS 晶振 ATS 4.9152MHz ±50ppm ±30ppm Series 120 Ohm -20°C ~ 70°C
ATS049A-E CTS 晶振 ATS 4.9152MHz ±50ppm ±30ppm Series 120 Ohm -40°C ~ 85°C
ATS050A CTS 晶振 ATS 5MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
ATS050A-E CTS 晶振 ATS 5MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
ATS050B CTS 晶振 ATS 5MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
ATS050B-E CTS 晶振 ATS 5MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
ATS050C CTS 晶振 ATS 5MHz ±50ppm ±30ppm Series 80 Ohm -20°C ~ 70°C
ATS050C-E CTS 晶振 ATS 5MHz ±50ppm ±30ppm Series 80 Ohm -40°C ~ 85°C
ATS050-E CTS 晶振 ATS 5.0688MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
ATS051 CTS 晶振 ATS 5.0688MHz ±50ppm ±30ppm Series 80 Ohm -20°C ~ 70°C
ATS051-E CTS 晶振 ATS 5.0688MHz ±50ppm ±30ppm Series 80 Ohm -40°C ~ 85°C
ATS060A CTS 晶振 ATS 6MHz ±50ppm ±30ppm Series 80 Ohm -20°C ~ 70°C
ATS060A-E CTS 晶振 ATS 6MHz ±50ppm ±30ppm Series 80 Ohm -40°C ~ 85°C
ATS060C CTS 晶振 ATS 6MHz ±50ppm ±30ppm 32pF 80 Ohm -20°C ~ 70°C
ATS060C-E CTS 晶振 ATS 6MHz ±50ppm ±30ppm 32pF 80 Ohm -40°C ~ 85°C
ATS060-E CTS 晶振 ATS 6MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
ATS061 CTS 晶振 ATS 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
ATS061C CTS 晶振 ATS 6.144MHz ±50ppm ±30ppm 32pF 80 Ohm -20°C ~ 70°C
ATS061C-E CTS 晶振 ATS 6.144MHz ±50ppm ±30ppm 32pF 80 Ohm -40°C ~ 85°C
ATS061-E CTS 晶振 ATS 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
ATS081B CTS 晶振 ATS 8.192MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
ATS081B-E CTS 晶振 ATS 8.192MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
ATS098-E CTS 晶振 ATS 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
ATS099 CTS 晶振 ATS 9.8304MHz ±50ppm ±30ppm Series 60 Ohm -20°C ~ 70°C
ATS099-E CTS 晶振 ATS 9.8304MHz ±50ppm ±30ppm Series 60 Ohm -40°C ~ 85°C
ATS122-E CTS 晶振 ATS 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS123 CTS 晶振 ATS 12.296MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS123B CTS 晶振 ATS 12.296MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
ATS123B-E CTS 晶振 ATS 12.296MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
ATS123-E CTS 晶振 ATS 12.296MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS124 CTS 晶振 ATS 12.296MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS124-E CTS 晶振 ATS 12.296MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS125 CTS 晶振 ATS 12.288MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS125-E CTS 晶振 ATS 12.288MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS126 CTS 晶振 ATS 12.352MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS126-E CTS 晶振 ATS 12.352MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS127 CTS 晶振 ATS 12.352MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS127-E CTS 晶振 ATS 12.352MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS135 CTS 晶振 ATS 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS135-E CTS 晶振 ATS 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS143-E CTS 晶振 ATS 14.31818MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS14A CTS 晶振 ATS 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS14A-E CTS 晶振 ATS 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS150 CTS 晶振 ATS 15MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS150-E CTS 晶振 ATS 15MHz ±50ppm ±30ppm Series 40 Ohm -40°C ~ 85°C
ATS15A-E CTS 晶振 ATS 15.36MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS164B CTS 晶振 ATS 16.384MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
ATS164B-E CTS 晶振 ATS 16.384MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
ATS169 CTS 晶振 ATS 16.9344MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS169-E CTS 晶振 ATS 16.9344MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS204-E CTS 晶振 ATS 20.48MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
ATS270A CTS 晶振 ATS 27MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
ATS270A-E CTS 晶振 ATS 27MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
ATS270B CTS 晶振 ATS 27MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
ATS270B-E CTS 晶振 ATS 27MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
ATS196B-E CTS 晶振 ATS 19.6608MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
ATS240 CTS 晶振 ATS 24MHz ±50ppm ±30ppm Series 30 Ohm -20°C ~ 70°C
ATS24B CTS 晶振 ATS 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
ATS240-E CTS 晶振 ATS 24MHz ±50ppm ±30ppm Series 30 Ohm -40°C ~ 85°C
ATS143-S CTS 晶振 ATS 14.31818MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS160-1 CTS 晶振 ATS 16MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
ATS180A CTS 晶振 ATS 18MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
ATS180A-E CTS 晶振 ATS 18MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
ATS25A CTS 晶振 ATS 25.000625MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
ATS320B CTS 晶振 ATS 32MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
ATS320B-E CTS 晶振 ATS 32MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
ATS320-E CTS 晶振 ATS 32MHz ±50ppm ±30ppm Series 80 Ohm -40°C ~ 85°C
ATS32A CTS 晶振 ATS 32MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
ATS32A-E CTS 晶振 ATS 32MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
ATS400 CTS 晶振 ATS 40MHz ±50ppm ±30ppm Series 80 Ohm -20°C ~ 70°C
ATS400B CTS 晶振 ATS 40MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
ATS400B-E CTS 晶振 ATS 40MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
ATS400-E CTS 晶振 ATS 40MHz ±50ppm ±30ppm Series 80 Ohm -40°C ~ 85°C
ATS40A CTS 晶振 ATS 40MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C

ATS(1)

ATS






上一页 余下全文

1/5

关于“CTS进口晶振,ATS无源晶振,HC-49/US插件晶振,ATS480A-E晶振,石英晶体谐振器,无铅环保晶振,高稳定晶振,6G无线通信晶振,微处理器晶振,消费电子产品应用晶振,网络终端晶振”的相关产品

NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信设备晶振NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信设备晶振

NKG晶振,S5M19.2000F18M23-EXT,5032mm晶振,6G移动应用晶振NKG晶振,S5M19.2000F18M23-EXT,5032mm晶振,6G移动应用晶振NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振

NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振NKG晶振,S5GA12.2880F18E2Z-EXT,陶瓷贴片晶振,6G低成本晶振NKG晶振,S5GA12.2880F18E2Z-EXT,陶瓷贴片晶振,6G低成本晶振

香港NKG晶体,S6GA40.0000F16M25-EXT,6035陶瓷晶振,6G无线应用晶振香港NKG晶体,S6GA40.0000F16M25-EXT,6035陶瓷晶振,6G无线应用晶振NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振

CSM1Z-A5B2C3-40-27.0D18-F,Cardinal无线局域网晶振,27MHz石英晶体CSM1Z-A5B2C3-40-27.0D18-F,Cardinal无线局域网晶振,27MHz石英晶体TS13CF23CDT,CTS晶体谐振器,ATSSMTS,微处理器晶体TS13CF23CDT,CTS晶体谐振器,ATSSMTS,微处理器晶体

热点推荐

金洛鑫电子提供海内外各大品牌5G基站用石英晶振产品和方案Silicon晶振550CD74M2500DGR光学模块应用VCXO振荡器IQXO-406-25超小型时钟振荡器提供小型化和高速运行北斗定位专用晶振CO4305-25.000-EXT-T-TR时钟振荡器蓝牙SOC和模块专用晶振EFR32BG27C320F768GJ39-AR

返回头部
