C7S-8.000-18-1030-X-R,台湾进口晶振,智能手机晶振,C7S无源进口晶振

JLXNR-1

JLX-1

C7S-8.000-18-1030-X-R,台湾进口晶振,智能手机晶振,C7S无源进口晶振

C7S系列无源晶振,C7S-8.000-18-1030-X-R具备该系列专属的性能与集成优势,完美适配智能手机的设计需求.C7S系列采用优化的无源电路架构,无需内置驱动芯片,仅需搭配简单的外部匹配电容即可工作,相比有源晶振体积更小,功耗更低,能适配智能手机内部紧凑的PCB布局,为电池,摄像头等大尺寸元件预留更多空间；系列化设计确保该晶振与同系列其他频率型号(如12MHz,26MHz)的封装,引脚定义一致,智能手机厂商若需调整时钟频率,无需修改PCB设计,仅需替换晶振型号,大幅缩短研发与改款周期.此外,C7S系列晶振的起振速度快(通电后≤1ms稳定输出),能满足智能手机快速开机,功能即时响应的需求,避免因时钟延迟导致的开机慢,APP启动卡顿等问题,提升用户使用体验.

JLXNR-2

JLX-2

C7S-8.000-18-1030-X-R,台湾进口晶振,智能手机晶振,C7S无源进口晶振

原厂型号Original model ：	C7S-8.000-18-1030-X-R	品牌 brand ：	AKER晶振
品牌 brand ：	AKER晶振	ESR（等效串联电阻） Resistance)	70 Ohms
型号名称Model name：	C7S	温度 Operating Temperature	-40°C ~ 85°C
Type 系列：	MHz Crystal	脚位 Termination：	4 pad
频率frequency ：	8 MHz	封装类型 Package Type：	4-SMD
Frequency Stability频率稳定度	±30ppm	高度 Package Height：	1.10mm
frequency tolerance频率容差	±10ppm	最小包装数 MPQ ：	1000
Load capacitance负载电容	18pF	包装 Packaging：	Tape and Reel
Size / Dimension 尺寸	7.00mm x 5.00mm	安装方式 Mounting Style：	Surface Mount

JLXNR-3

JLX-3

C7S-8.000-18-1030-X-R,台湾进口晶振,智能手机晶振,C7S无源进口晶振

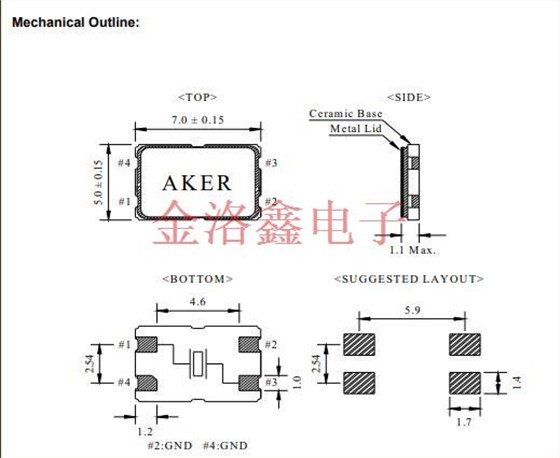

C7S尺寸图

JLXNR-4

C7S-8.000-18-1030-X-R,台湾进口晶振,智能手机晶振,C7S无源进口晶振

C16-26.000-8-1520-R	AKER晶振	C16	MHz Crystal	26 MHz	±20ppm	±15ppm	8pF	120 Ohms
C5S-26.000-16-1010-R	AKER晶振	C5S	MHz Crystal	26 MHz	±10ppm	±10ppm	16pF	25 Ohms
C5S-8.000-18-3030-R	AKER晶振	C5S	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF	150 Ohms
CAA-4.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	4 MHz	±50ppm	±30ppm	18pF	120 Ohms
CAA-11.0592-18-3050-R	AKER晶振	CAA	MHz Crystal	11.0592 MHz	±50ppm	±30ppm	18pF	50 Ohms
CAA-8.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF	60 Ohms
CAA-40.000-18-3050-R	AKER晶振	CAA	MHz Crystal	40 MHz	±50ppm	±30ppm	18pF	80 Ohms
C3E-24.000-9-1010-R	AKER晶振	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	9pF	50 Ohms
C3E-12.000-12-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	12pF	120 Ohms
C3E-12.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	18pF	120 Ohms
C3E-25.000-20-1015-X-R	AKER晶振	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	20pF	40 Ohms
C3E-24.000-9-1015-X-R	AKER晶振	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	9pF	50 Ohms
C3E-16.000-9-1015-X-R	AKER晶振	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	9pF	60 Ohms
C2E-12.000-18-1020-R	AKER晶振	C2E	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	200 Ohms
C3E-8.000-20-1020-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	20pF	150 Ohms
C3E-8.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	500 Ohms
C3E-8.000-8-1015-R	AKER晶振	C3E	MHz Crystal	8 MHz	±10ppm	±15ppm	8pF	500 Ohms
C3E-12.000-8-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	8pF	80 Ohms
C3E-16.000-10-3050-X1-R	AKER晶振	C3E X1	MHz Crystal	16 MHz	±50ppm	±30ppm	10pF	60 Ohms
C16-32.000-8-1515-X-R	AKER晶振	C16	MHz Crystal	32 MHz	±15ppm	±15ppm	8pF	100 Ohms
C3E-20.000-8-3050-X1-R	AKER晶振	C3E X1	MHz Crystal	20 MHz	±50ppm	±30ppm	8pF	50 Ohms
C2E-12.000-18-1020-X-R	AKER晶振	C2E	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	200 Ohms
C5S-12.000-18-1020-R	AKER晶振	C5S	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	35 Ohms
C3E-8.000-18-1020-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	500 Ohms
C3E-8.000-12-1020-M	AKER晶振	C3E	MHz Crystal	8 MHz	±10ppm	±20ppm	12pF	500 Ohms
C2E-12.000-8-2050-X1-R	AKER晶振	C2E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	8pF	200 Ohms
C3E-16.000-10-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	10 MHz	±50ppm	±20ppm	10pF	60 Ohms
C3E-30.000-8-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	30 MHz	±50ppm	±20ppm	8pF	40 Ohms
C7S-12.000-12-3030-X-R	AKER晶振	C7S	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF	35 Ohms
C7S-8.000-18-1020-R	安基晶振	C7S	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	40 Ohms
C7S-8.000-18-1030-X-R	安基晶振	C7S	MHz Crystal	8 MHz	±30ppm	±10ppm	18pF	70 Ohms
CA4-16.000-18-3050-R	安基晶振	CA4	MHz Crystal	16 MHz	±50ppm	±30ppm	18pF	40 Ohms
CA4-8.000-16-3050-R	安基晶振	CA4	MHz Crystal	8 MHz	±50ppm	±30ppm	16pF	60 Ohms
C3E-8.000-10-1020-M	安基晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	10pF	500 Ohms
C16-96.000-8-1520-X2-R	安基晶振	-	MHz Crystal	96 MHz	±15ppm	±20ppm	8pF	-
C1E-76.800-10-1012-X-M	安基晶振	C1E	MHz Crystal	76.8 MHz	±10ppm	±10ppm	10pF	60 Ohms
C1E-80.000-10-1015-X-M	安基晶振	C1E	MHz Crystal	80 MHz	±10ppm	±10ppm	10pF	40 Ohms
C1E-76.800-8-1012-X-M	安基晶振	C1E	MHz Crystal	46.8 MHz	±10ppm	±10ppm	8pF	60 Ohms
C1E-80.000-8-1015-X-M	安基晶振	C1E	MHz Crystal	80 MHz	±10ppm	±10ppm	8pF	10 Ohms
C3E-24.576-12-3030-X-R	安基晶振	C3E	MHz Crystal	24.576 MHz	±30ppm	±30ppm	12pF	100 Ohms
C3E-30.000-12-1020-X-R	安基晶振	C3E	MHz Crystal	30 MHz	±10ppm	±20ppm	12pF	120 Ohms
C3E-12.000-12-1015-R	安基晶振	C3E	MHz Crystal	12 MHz	±15ppm	±10ppm	12pF	100 Ohms
C3E-25.000-8-1015-X-R	安基晶振	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	8pF	100 Ohms
C3E-26.000-10-1015-X-R3	安基晶振	C3E	MHz Crystal	26 MHz	±15ppm	±10ppm	10pF	100 Ohms
C16-26.000-8-1010-R	安基晶振	C16	MHz Crystal	26 MHz	±10ppm	±10ppm	8pF	150 Ohms
C3E-16.000-8-2050-X1-R	安基晶振	C3E X1	MHz Crystal	16 MHz	±50ppm	±20ppm	8pF	60 Ohms
C3E-8.000-12-1020-R	安基晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	12pF	500 Ohms
C2E-12.000-10-2050-X1-R	安基晶振	C2E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	10pF	200 Ohms
C1E-96.000-8-1216-X2-R	安基晶振	C1E X2	MHz Crystal	96 MHz	±16ppm	±12ppm	8pF	20 Ohms
C3E-12.000-12-3030-X-R	安基晶振	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF	100 Ohms
C3E-27.120-12-1010-R	安基晶振	C3E	MHz Crystal	27.12 MHz	±10ppm	±10ppm	12pF	100 Ohms
C3E-24.576-12-1010-R	安基晶振	C3E	MHz Crystal	24.576 MHz	±10ppm	±10ppm	12pF	100 Ohms
C3E-16.000-12-1015-R	安基晶振	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF	100 Ohms
C3E-13.560-12-1530-X-R	安基晶振	C3E	MHz Crystal	13.56 MHz	±30ppm	±15ppm	12pF	100 Ohms
C2E-16.000-10-1010-R	安基晶振	C2E	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF	90 Ohms
C1E-24.000-10-1015-M	安基晶振	C1E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF	100 Ohms
C2E-25.000-10-3030-X-M	安基晶振	C2E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF	100 Ohms
C2E-48.000-10-1020-X-R	安基晶振	C2E	MHz Crystal	48 MHz	±20ppm	±10ppm	10pF	50 Ohms
C3E-20.000-10-3050-X1-R	安基晶振	C3E X1	MHz Crystal	20 MHz	±50ppm	±30ppm	10pF	50 Ohms
C1E-96.000-9.9-1216-X2-R	安基晶振	C1E	MHz Crystal	96 MHz	±16ppm	±12ppm	9.9pF	60 Ohms
