FC4SDCBMF10.0-T1,FOX无源晶振,HC49SDLF石英晶振,耐用型晶振
依托FOX福克斯晶振品牌成熟的制造工艺,这款无源晶振具备低功耗,高稳定性的双重优势,无需外部电源驱动即可正常工作,能显著降低物联网传感器,智能穿戴设备晶振,便携式检测仪器等低功耗职场设备的整体能耗,延长设备续航时间.产品拥有出色的抗电磁干扰能力,在复杂的电磁环境中(如工业生产车间,多设备密集的机房)仍能保持稳定频率输出,避免设备因干扰出现数据采集偏差或功能卡顿.此外,其宽温度适配范围(-40℃至85℃)可应对户外,极端工业等严苛场景,为多领域职场设备提供可靠频率支持.采用经典的HC49SD封装结构,搭配高品质石英晶体材质,这款晶振具备超高频率精度与长期稳定性,频率偏差可控制在±10ppm以内,完美适配医疗电子(如心电监护仪),精密测量仪器(如电子示波器),汽车电子控制单元等对频率精度要求严苛的职场场景.产品内置防潮防尘结构,能有效抵御潮湿,粉尘等恶劣环境影响,延长使用寿命,同时,其引脚设计牢固,焊接稳定性强,可减少因安装或振动导致的接触不良问题,为关键职场设备的持续运行筑牢"精度防线".
FC4SDCBMF10.0-T1,FOX无源晶振,HC49SDLF石英晶振,耐用型晶振
| 原厂型号Original model ： | FC4SDCBMF10.0-T1 | 品牌 brand ： | FOX晶振 |
| 品牌 brand ： | FOX晶振 | ESR（等效串联电阻） Resistance) | 60 Ohms |
| 型号名称Model name： | HC49SDLF | 温度 Operating Temperature | -20°C ~ 70°C |
| Type 系列： | MHz Crystal | 脚位 Termination： | 2 pad |
| 频率frequency ： | 10 MHz | 封装类型 Package Type： | HC-49/US |
| Frequency Stability频率稳定度 | ±50ppm | 高度 Package Height： | 4.50mm |
| frequency tolerance频率容差 | ±30ppm | 最小包装数 MPQ ： | - |
| Load capacitance负载电容 | 20pF | 包装 Packaging： | Tape and Reel |

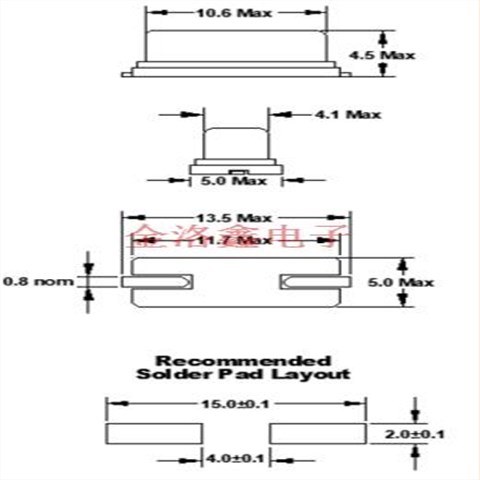

| Size / Dimension 尺寸 | 11.70mm x 5.00mm | 安装方式 Mounting Style： | Surface Mount |
FC4SDCBMF10.0-T1,FOX无源晶振,HC49SDLF石英晶振,耐用型晶振
FC4SDCBMF10.0-T1,FOX无源晶振,HC49SDLF石英晶振,耐用型晶振
| FC4SDCBMF10.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF8.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF3.6864-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKFSREIHM0.032768-T3 | FOX无源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FC4STCBMF20.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FK135EIHM0.032768-T3 | FOX无源晶振 | K135 | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms |
| FC5BQCCMC12.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC5BQCCMM25.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMM12.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMM8.0-T1 | FOX无源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM7.3728-T1 | FOX无源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FKFSXEIHM0.032768-T3 | FOX无源晶振 | FSXLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms |
| FKFSREIBM0.032768-T3 | FOX无源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 50 kOhms |
| FC8AQCCMC3.6864-T1 | FOX无源晶振 | FC8AQ | MHz Crystal | 3.6864 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC8AQCCMC4.0-T1 | FOX无源晶振 | FC8AQ | MHz Crystal | 4 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF11.0592-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF25.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF16.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF12.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF24.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMM25.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF14.7456-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMM8.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF7.3728-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF6.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 20pF | 120 Ohms |
| FC4SDCBMF4.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC3BQBBME12.0-T3 | FOX无源晶振 | FQ3225B | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 20pF | 120 Ohms |
| FC3BQBBMM25.0-T3 | FOX无源晶振 | FC3BQ | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 20pF | 80 Ohms |
| FKT38EIHD0.032768 | FOX无源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC4STCBMF10.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF25.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4STCBMF16.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF12.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF11.0592 | FOX无源晶振 | HC49SLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF8.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBMF7.3728 | FOX无源晶振 | HC49SLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBLF3.579545 | FOX无源晶振 | HC49SLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4STCBMF4.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC4STCBMF3.6864 | FOX无源晶振 | HC49SLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKT26EIHD0.032768 | FOX无源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FKT38EIHQ0.032768 | FOX无源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC5BQCCMC25.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC24.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC20.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC16.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC8.0-T1 | FOX无源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM6.0-T1 | FOX无源晶振 | C7BS | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC7.3728-T1 | FOX无源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC8AQCCMC6.0-T1 | FOX无源晶振 | FC8AQ | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF12.288-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMM16.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF18.432-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBLF3.579545-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4SDCBMM4.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC2BSBBMM16.0-T3 | FOX无源晶振 | FX252B | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 20pF | 200 Ohms |
| FC4STCBMF18.432 | FOX无源晶振 | HC49SLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF14.7456 | FOX无源晶振 | HC49SLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FKT26EIHQ0.032768 | FOX无源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC3BACALI16.0-T3 | FOX无源晶振 | C3BA | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 18pF | 100 Ohms |
| FC3BACBDI16.0-T3 | FOX无源晶振 | C3BA | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 8pF | 100 Ohms |
