FKFSREIHM0.032768-T3,FOX福克斯晶振,FSRLF谐振器,8038晶振

JLXNR-1

JLX-1

FKFSREIHM0.032768-T3,FOX福克斯晶振,FSRLF谐振器,8038晶振

凭借卓越的环境适应性,FOX福克斯晶振可在-40℃至85℃的宽温度范围内稳定工作,完美适配工业生产现场,航海航空设备,户外监测终端等严苛职场场景.产品采用高品质材质与精密制造工艺,不仅具备极强的抗干扰能力,还能有效抵御振动,冲击等外部因素影响,从根本上杜绝设备因环境变化出现的宕机问题,为各类极端环境下的职场设备提供可靠的频率基准,确保生产,监测等工作流程不间断推进.FSRLF谐振器在对数据准确性要求极高的医疗,精密电子检测等职场领域表现突出.其精准的谐振性能可确保心电图机,血液分析仪,电子测量仪器等设备采集的数据真实可靠,避免因精度不足导致的诊断误差或检测结果偏差.8038晶振可灵活生成正弦波,方波,三角波等多种波形,且波形失真率极低,是电子测试,自动测试系统,研发实验室等职场场景的理想选择.

JLXNR-2

JLX-2

FKFSREIHM0.032768-T3,FOX福克斯晶振,FSRLF谐振器,8038晶振

原厂型号Original model ：	FKFSREIHM0.032768-T3	品牌 brand ：	FOX无源晶振
品牌 brand ：	FOX无源晶振	ESR（等效串联电阻） Resistance)	50 kOhms
型号名称Model name：	FSRLF	温度 Operating Temperature	-40°C ~ 85°C
Type 系列：	kHz Crystal (Tuning Fork)	脚位 Termination：	4 pad
频率frequency ：	32.768 kHz	封装类型 Package Type：	4-SOJ
Frequency Stability频率稳定度	-	高度 Package Height：	2.50mm
frequency tolerance频率容差	±20ppm	最小包装数 MPQ ：	1000
Load capacitance负载电容	12.5pF	包装 Packaging：	Tape and Reel

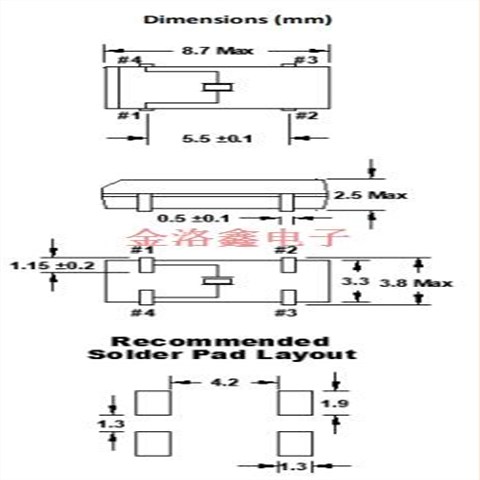

Size / Dimension 尺寸	8.70mm x 3.70mm	安装方式 Mounting Style：	Surface Mount

JLXNR-3

FKFSREIHM0.032768-T3,FOX福克斯晶振,FSRLF谐振器,8038晶振

FSRLF

JLXNR-4

FKFSREIHM0.032768-T3,FOX福克斯晶振,FSRLF谐振器,8038晶振

FC4SDCBMF10.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	10 MHz	±50ppm	±30ppm	20pF	60 Ohms
FC4SDCBMF8.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	8 MHz	±50ppm	±30ppm	20pF	80 Ohms
FC4SDCBMF3.6864-T1	FOX无源晶振	HC49SDLF	MHz Crystal	3.6864 MHz	±50ppm	±30ppm	20pF	200 Ohms
FKFSREIHM0.032768-T3	FOX无源晶振	FSRLF	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF	50 kOhms
FC4STCBMF20.0	FOX无源晶振	HC49SLF	MHz Crystal	20 MHz	±50ppm	±30ppm	20pF	30 Ohms
FK135EIHM0.032768-T3	FOX无源晶振	K135	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF	70 kOhms
FC5BQCCMC12.0-T1	FOX无源晶振	C5BQ	MHz Crystal	12 MHz	±30ppm	±30ppm	20pF	80 Ohms
FC5BQCCMM25.0-T1	FOX无源晶振	C5BQ	MHz Crystal	25 MHz	±30ppm	±30ppm	20pF	50 Ohms
FC5BQCCMM12.0-T1	FOX无源晶振	C5BQ	MHz Crystal	12 MHz	±50ppm	±30ppm	20pF	80 Ohms
FC7BSCCMM8.0-T1	FOX无源晶振	C7BS	MHz Crystal	8 MHz	±30ppm	±30ppm	20pF	110 Ohms
FC7BSCCMM7.3728-T1	FOX无源晶振	C7BS	MHz Crystal	7.3728 MHz	±30ppm	±30ppm	20pF	110 Ohms
FKFSXEIHM0.032768-T3	FOX无源晶振	FSXLF	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF	65 kOhms
FKFSREIBM0.032768-T3	FOX无源晶振	FSRLF	kHz Crystal	32.768 kHz	-	±20ppm	6pF	50 kOhms
FC8AQCCMC3.6864-T1	FOX无源晶振	FC8AQ	MHz Crystal	3.6864 MHz	±30ppm	±30ppm	20pF	150 Ohms
FC8AQCCMC4.0-T1	FOX无源晶振	FC8AQ	MHz Crystal	4 MHz	±30ppm	±30ppm	20pF	150 Ohms
FC4SDCBMF11.0592-T1	FOX无源晶振	HC49SDLF	MHz Crystal	11.0592 MHz	±50ppm	±30ppm	20pF	60 Ohms
FC4SDCBMF25.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	25 MHz	±50ppm	±30ppm	20pF	30 Ohms
FC4SDCBMF16.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	16 MHz	±50ppm	±30ppm	20pF	40 Ohms
FC4SDCBMF12.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	12 MHz	±50ppm	±30ppm	20pF	60 Ohms
FC4SDCBMF24.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	24 MHz	±50ppm	±30ppm	20pF	30 Ohms
FC4SDCBMM25.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	25 MHz	±50ppm	±30ppm	20pF	30 Ohms
FC4SDCBMF14.7456-T1	FOX无源晶振	HC49SDLF	MHz Crystal	14.7456 MHz	±50ppm	±30ppm	20pF	40 Ohms
FC4SDCBMM8.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	8 MHz	±50ppm	±30ppm	20pF	80 Ohms
FC4SDCBMF7.3728-T1	FOX无源晶振	HC49SDLF	MHz Crystal	7.3728 MHz	±50ppm	±30ppm	20pF	80 Ohms
FC4SDCBMF6.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	6 MHz	±50ppm	±30ppm	20pF	120 Ohms
FC4SDCBMF4.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	4 MHz	±50ppm	±30ppm	20pF	150 Ohms
FC3BQBBME12.0-T3	FOX无源晶振	FQ3225B	MHz Crystal	12 MHz	±50ppm	±50ppm	20pF	120 Ohms
FC3BQBBMM25.0-T3	FOX无源晶振	FC3BQ	MHz Crystal	25 MHz	±50ppm	±50ppm	20pF	80 Ohms
FKT38EIHD0.032768	FOX无源晶振	NC38LF	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF	35 kOhms
FC4STCBMF10.0	FOX无源晶振	HC49SLF	MHz Crystal	10 MHz	±50ppm	±30ppm	20pF	60 Ohms
FC4STCBMF25.0	FOX无源晶振	HC49SLF	MHz Crystal	25 MHz	±50ppm	±30ppm	20pF	30 Ohms
FC4STCBMF16.0	FOX无源晶振	HC49SLF	MHz Crystal	16 MHz	±50ppm	±30ppm	20pF	40 Ohms
FC4STCBMF12.0	FOX无源晶振	HC49SLF	MHz Crystal	12 MHz	±50ppm	±30ppm	20pF	60 Ohms
FC4STCBMF11.0592	FOX无源晶振	HC49SLF	MHz Crystal	11.0592 MHz	±50ppm	±30ppm	20pF	60 Ohms
FC4STCBMF8.0	FOX无源晶振	HC49SLF	MHz Crystal	8 MHz	±50ppm	±30ppm	20pF	80 Ohms
FC4STCBMF7.3728	FOX无源晶振	HC49SLF	MHz Crystal	7.3728 MHz	±50ppm	±30ppm	20pF	80 Ohms
FC4STCBLF3.579545	FOX无源晶振	HC49SLF	MHz Crystal	3.579545 MHz	±50ppm	±30ppm	18pF	200 Ohms
FC4STCBMF4.0	FOX无源晶振	HC49SLF	MHz Crystal	4 MHz	±50ppm	±30ppm	20pF	150 Ohms
FC4STCBMF3.6864	FOX无源晶振	HC49SLF	MHz Crystal	3.6864 MHz	±50ppm	±30ppm	20pF	200 Ohms
FKT26EIHD0.032768	FOX无源晶振	NC26LF	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF	50 kOhms
FKT38EIHQ0.032768	FOX无源晶振	NC38LF	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF	35 kOhms
FC5BQCCMC25.0-T1	FOX无源晶振	C5BQ	MHz Crystal	25 MHz	±30ppm	±30ppm	20pF	50 Ohms
FC5BQCCMC24.0-T1	FOX无源晶振	C5BQ	MHz Crystal	24 MHz	±30ppm	±30ppm	20pF	50 Ohms
FC5BQCCMC20.0-T1	FOX无源晶振	C5BQ	MHz Crystal	20 MHz	±30ppm	±30ppm	20pF	50 Ohms
FC5BQCCMC16.0-T1	FOX无源晶振	C5BQ	MHz Crystal	16 MHz	±30ppm	±30ppm	20pF	80 Ohms
FC7BSCCMC8.0-T1	FOX无源晶振	C7BS	MHz Crystal	8 MHz	±30ppm	±30ppm	20pF	110 Ohms
FC7BSCCMM6.0-T1	FOX无源晶振	C7BS	MHz Crystal	6 MHz	±30ppm	±30ppm	20pF	80 Ohms
FC7BSCCMC7.3728-T1	FOX无源晶振	C7BS	MHz Crystal	7.3728 MHz	±30ppm	±30ppm	20pF	110 Ohms
FC8AQCCMC6.0-T1	FOX无源晶振	FC8AQ	MHz Crystal	6 MHz	±30ppm	±30ppm	20pF	150 Ohms
FC4SDCBMF12.288-T1	FOX无源晶振	HC49SDLF	MHz Crystal	12.288 MHz	±50ppm	±30ppm	20pF	60 Ohms
FC4SDCBMM16.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	16 MHz	±50ppm	±30ppm	20pF	40 Ohms
FC4SDCBMF18.432-T1	FOX无源晶振	HC49SDLF	MHz Crystal	18.432 MHz	±50ppm	±30ppm	20pF	40 Ohms
FC4SDCBLF3.579545-T1	FOX无源晶振	HC49SDLF	MHz Crystal	3.579545 MHz	±50ppm	±30ppm	18pF	200 Ohms
FC4SDCBMM4.0-T1	FOX无源晶振	HC49SDLF	MHz Crystal	4 MHz	±50ppm	±30ppm	20pF	150 Ohms
FC2BSBBMM16.0-T3	FOX无源晶振	FX252B	MHz Crystal	16 MHz	±50ppm	±50ppm	20pF	200 Ohms
FC4STCBMF18.432	FOX无源晶振	HC49SLF	MHz Crystal	18.432 MHz	±50ppm	±30ppm	20pF	40 Ohms
FC4STCBMF14.7456	FOX无源晶振	HC49SLF	MHz Crystal	14.7456 MHz	±50ppm	±30ppm	20pF	40 Ohms
FKT26EIHQ0.032768	FOX无源晶振	NC26LF	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF	35 kOhms
FC3BACALI16.0-T3	FOX无源晶振	C3BA	MHz Crystal	16 MHz	±100ppm	±30ppm	18pF	100 Ohms
FC3BACBDI16.0-T3	FOX无源晶振	C3BA	MHz Crystal	16 MHz	±50ppm	±30ppm	8pF	100 Ohms
