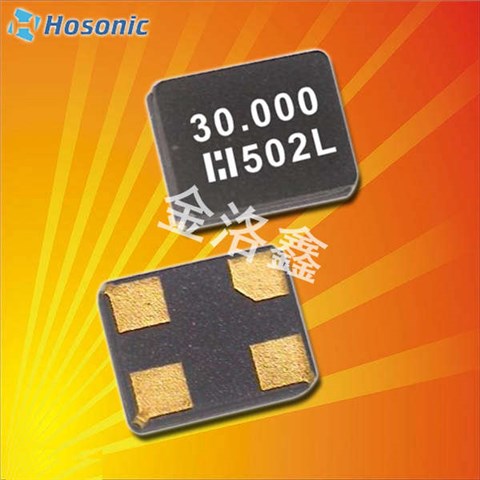

E3FB16.0000F18E33-16MHz-3225mm-台湾鸿星晶振

E3FB16.0000F18E33-16MHz-3225mm-台湾鸿星晶振,E3FB16.0000F18E33晶振,频率16MHz,负载18pf,工作温度-20~70°C,3225mm晶振,台湾鸿星晶振,E3FB小体积晶振,石英晶体谐振器,无源SMD晶振,低老化晶振,便携式消费产品晶振,无线控制器设备晶振,可穿戴设备晶振,蓝牙音响晶振.

E3FB16.0000F18E33-16MHz-3225mm-台湾鸿星晶振特点

1.非常紧凑和薄(3.2*2.5*0.90mm)

2.频率范围为10M至115M，范围宽广

3.用于设计空间有限的非射频应用的通用解决方案，如无线控制器设备和其他便携式消费产品

4.优异的耐热性和抗震性

5.无铅,满足使用铅的再流动剖面的要求-无焊

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

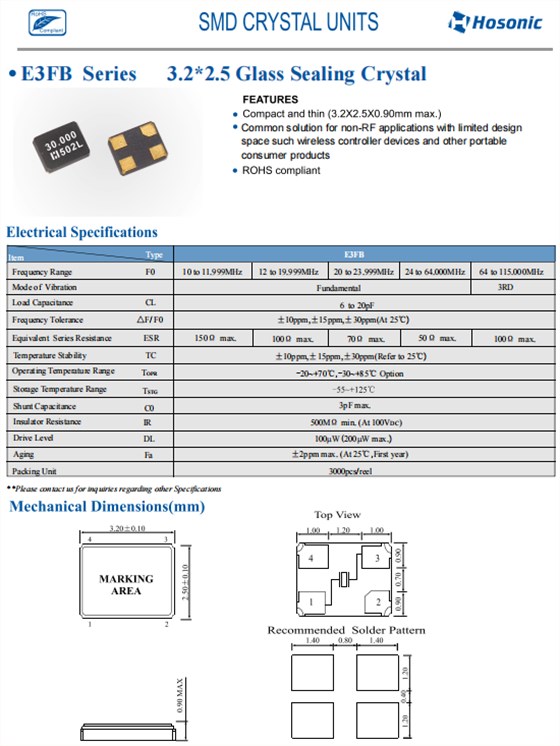

E3FB16.0000F18E33-16MHz-3225mm-台湾鸿星晶振参数

项目	符号	E3FB
频率	f0	16MHz
振动模式		Fundamental
频率公差	△f/f0	±30ppm
温度稳定性	TC	±30ppm
负载电容	CL	18pf
工作温度	TOPR	－20℃～＋70℃
保存温度	TSTR	－55℃～＋125℃
串联阻力	R1	100Ω Max.
驱动级别	DL	200μW Max
老化（第一年）	△f/f0	±2ppm Max.
并联电容	C0	3pF Typ.
绝缘电阻	IR	500MΩmin. (At 100VDC )

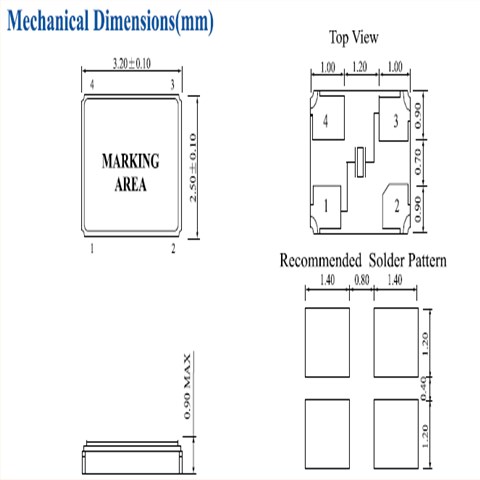

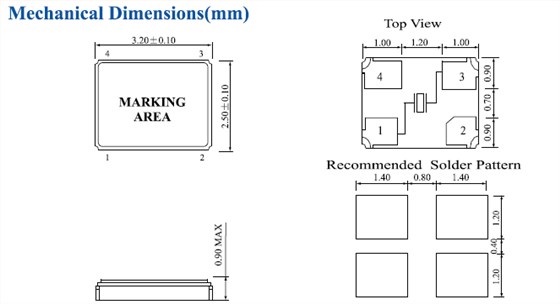

E3FB16.0000F18E33-16MHz-3225mm-台湾鸿星晶振尺寸图

原厂编码	制造厂家	型号	频率	负载电容	频率容差	频率稳定度	尺寸
E3FB16.0000F18E33	Hosonic晶振	E3FB	16MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB17.0000F18E33	Hosonic晶振	E3FB	17MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB18.0000F18E33	Hosonic晶振	E3FB	18MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB19.0000F18E33	Hosonic晶振	E3FB	19MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB20.0000F18E33	Hosonic晶振	E3FB	20MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB21.0000F18E33	Hosonic晶振	E3FB	21MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB22.0000F18E33	Hosonic晶振	E3FB	22MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB23.0000F18E33	Hosonic晶振	E3FB	23MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB24.0000F18E33	Hosonic晶振	E3FB	24MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB25.0000F18E33	Hosonic晶振	E3FB	25MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB26.0000F18E33	Hosonic晶振	E3FB	26MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB27.0000F18E33	Hosonic晶振	E3FB	27MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB28.0000F18E33	Hosonic晶振	E3FB	28MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB29.0000F18E33	Hosonic晶振	E3FB	29MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB30.0000F18E33	Hosonic晶振	E3FB	30MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB31.0000F18E33	Hosonic晶振	E3FB	31MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB32.0000F18E33	Hosonic晶振	E3FB	32MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB33.0000F18E33	Hosonic晶振	E3FB	33MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB34.0000F18E33	Hosonic晶振	E3FB	34MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB35.0000F18E33	Hosonic晶振	E3FB	35MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB36.0000F18E33	Hosonic晶振	E3FB	36MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB37.0000F18E33	Hosonic晶振	E3FB	37MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB38.0000F18E33	Hosonic晶振	E3FB	38MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB39.0000F18E33	Hosonic晶振	E3FB	39MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB40.0000F18E33	Hosonic晶振	E3FB	40MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB41.0000F18E33	Hosonic晶振	E3FB	41MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB42.0000F18E33	Hosonic晶振	E3FB	42MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB43.0000F18E33	Hosonic晶振	E3FB	43MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB44.0000F18E33	Hosonic晶振	E3FB	44MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB45.0000F18E33	Hosonic晶振	E3FB	45MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB46.0000F18E33	Hosonic晶振	E3FB	46MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB47.0000F18E33	Hosonic晶振	E3FB	47MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB48.0000F18E33	Hosonic晶振	E3FB	48MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB49.0000F18E33	Hosonic晶振	E3FB	49MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB50.0000F18E33	Hosonic晶振	E3FB	50MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB51.0000F18E33	Hosonic晶振	E3FB	51MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB52.0000F18E33	Hosonic晶振	E3FB	52MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB53.0000F18E33	Hosonic晶振	E3FB	53MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB54.0000F18E33	Hosonic晶振	E3FB	54MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB55.0000F18E33	Hosonic晶振	E3FB	55MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB56.0000F18E33	Hosonic晶振	E3FB	56MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB57.0000F18E33	Hosonic晶振	E3FB	57MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB58.0000F18E33	Hosonic晶振	E3FB	58MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB59.0000F18E33	Hosonic晶振	E3FB	59MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB60.0000F18E33	Hosonic晶振	E3FB	60MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB61.0000F18E33	Hosonic晶振	E3FB	61MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB62.0000F18E33	Hosonic晶振	E3FB	62MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB63.0000F18E33	Hosonic晶振	E3FB	63MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB64.0000F18E33	Hosonic晶振	E3FB	64MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB65.0000F18E33	Hosonic晶振	E3FB	65MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB66.0000F18E33	Hosonic晶振	E3FB	66MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
