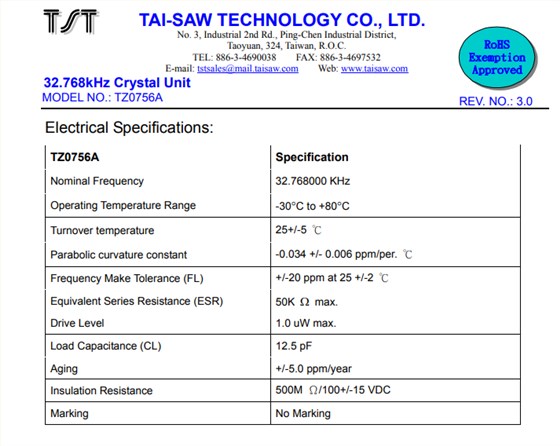

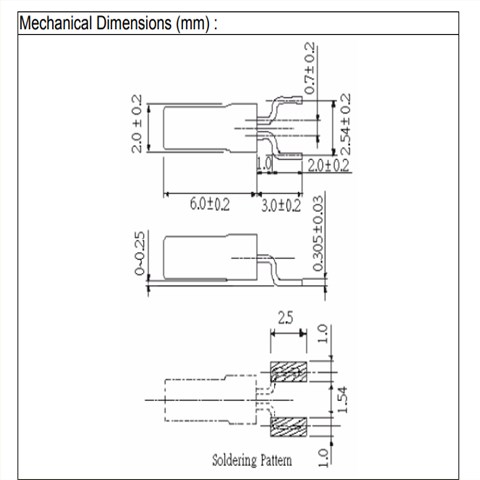

TST嘉硕晶体,无源晶振,TZ0756A晶振,石英插件晶振，台湾晶振，石英晶体谐振器，高质量无源晶体，两脚插件晶体，编码为：TZ0756A，频率：32.768 KHz，频率公差为：±20ppm，负载电容为：12.5PF，工作温度范围：-30℃至+80℃，晶振体积尺寸为：6.0x2.0mm，高品质石英晶振，石英晶体，ROHS环保晶振，贴片晶振，引脚焊接型石英晶体元件，工厂仓库长时间大量库存常用频点，主要应用于电视机顶盒晶振，游戏机晶振和家用常规电器数码晶振等产品。
TST嘉硕晶体,无源晶振,TZ0756A晶振,石英插件晶振
| 编码 | 品牌 | 频率(MHz) | 负载电容(Pf) | 频率公差/工作温度 | 尺寸(mm) |
| TZ0756A | TST晶体 | 0.032768 | 12.5 | 20ppm/-30C~+80C | 6.0x2.0 |
TST嘉硕晶体,无源晶振,TZ0756A晶振,石英插件晶振
| 编码 | 品牌 | 频率(MHz) | 负载电容(Pf) | 频率公差/工作温度 | 尺寸(mm) |
| TZ0756A | TST晶体 | 0.032768 | 12.5 | 20ppm/-30C~+80C | 6.0x2.0 |
| TZ0924A | TST晶体 | 0.032768 | 12.5 | 20ppm/-30C~+85C | 8.0x3.0 |
| TZ1006A | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 3.2x1.5x0.75 |
| TZ1006AB | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 3.2x1.5x0.65 |
| TZ1006AC | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 3.2x1.5x0.9 |
| TZ1006AD | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 3.2x1.5x0.9 |
| TZ1006AE | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 3.2x1.5x0.9 |
| TZ1006E | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+125C | 3.2x1.5x0.9 |
| TZ1166A | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+85C | 3.2x1.5x0.65 |
| TZ1166B | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+85C | 3.2x1.5x0.8 |
| TZ1166C | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+125C | 3.2x1.5x0.65 |
| TZ1166E | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+85C | 3.2x1.5x0.9 |
| TZ1510A | TST晶体 | 0.032768 | 9 | 20ppm/-40C~+85C | 3.2x1.5x0.9 |
| TZ1510B | TST晶体 | 0.032768 | 9 | 20ppm/-40C~+85C | 3.2x1.5x0.8 |
| TZ1510C | TST晶体 | 0.032768 | 9 | 20ppm/-40C~+125C | 3.2x1.5x0.8 |
| TZ1692A | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 4.9x1.8x1.0 |
| TZ1702A | TST晶体 | 0.032768 | 6 | 20ppm/-40C~+85C | 8.0x3.8x2.6 |
| TZ2057DAAO22 | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+125C | 3.2x1.5x0.9 |
| TZ2065A | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 2.0x1.2x0.55 |
| TZ2426A | TST晶体 | 0.032768 | 12.5 | 5ppm/-20C~+75C | 6.0x2.0 |
| TZ2528A | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 2.0x1.2x0.55 |
| TZ2528C | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 2.0x1.2x0.6 |
| TZ2528D | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 2.0x1.2x0.6 |
| TZ2528E | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+105C | 2.0x1.2x0.6 |
| TZ2754A | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+125C | 3.2x1.5x0.8 |
| TZ2754C | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+125C | 3.2x1.5x0.65 |
| TZ2845A | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+125C | 2.0x1.2x0.55 |
| TZ3049A | TST晶体 | 0.032768 | 9 | 20ppm/-40C~+85C | 2.0x1.2x0.55 |
| TZ3049B | TST晶体 | 0.032768 | 9 | 20ppm/-40C~+85C | 2.0x1.2x0.6 |
| TZ3049C | TST晶体 | 0.032768 | 9 | 10ppm/-40C~+85C | 2.0x1.2x0.6 |
| TZ3049D | TST晶体 | 0.032768 | 9 | 20ppm/-40C~+85C | 2.0x1.2x0.6 |
| TZ3064A | TST晶体 | 0.032768 | 4 | 20ppm/250ppm/-40C~+85C | 2.0x1.2x0.55 |
| TZ3092A | TST晶体 | 0.032768 | 12.5 | 10ppm/-40C~+85C | 3.2x1.5x0.8 |
| TZ3092B | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+105C | 3.2x1.5x0.8 |
| TZ3092C | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+105C | 3.2x1.5x0.9 |
| TZ3092DA62CK | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 3.2x1.5x0.9 |
| TZ3108A | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 1.6x1.0x0.5 |
| TZ3108B | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+125C | 1.6x1.0x0.5 |
| TZ3108C | TST晶体 | 0.032768 | 12.5 | 20ppm/-40C~+85C | 1.6x1.0x0.5 |
| TZ3120A | TST晶体 | 0.032768 | 9 | 20ppm/-40C~+85C | 1.6x1.0x0.5 |
| TZ3120B | TST晶体 | 0.032768 | 9 | 20ppm/-40C~+85C | 1.6x1.0x0.5 |
| TZ3158A | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+85C | 2.0x1.2x0.6 |
| TZ3158D | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+105C | 2.0x1.2x0.6 |
| TZ3158EA6053 | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+125C | 2.0x1.2x0.55 |
| TZ3184A | TST晶体 | 0.032768 | 6 | 20ppm/-40C~+85C | 6.0x2.0 |
| TZ3257A | TST晶体 | 0.032768 | 6 | 20ppm/-40C~+85C | 3.2x1.5x0.9 |
| TZ3257B | TST晶体 | 0.032768 | 6 | 20ppm/-40C~+125C | 3.2x1.5x0.65 |
| TZ3359A | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+85C | 1.6x1.0x0.5 |
| TZ3359B | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+85C | 1.6x1.0x0.5 |
| TZ3359COAO74 | TST晶体 | 0.032768 | 7 | 20ppm/280ppm/-40C~+85C | 1.6x1.0x0.5 |
| TZ3359DAAO73 | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+125C | 1.6x1.0x0.5 |
| TZ3406A | TST晶体 | 0.032768 | 6 | 20ppm/-40C~+85C | 2.0x1.2x0.6 |
| TZ3581A | TST晶体 | 0.032768 | 7 | 20ppm/-40C~+125C | 3.2x1.5x0.8 |
| TZ2430A | TST晶体 | 1.8432 | 20 | 30ppm/30ppm/-10C~+70C | HC49U |
| TZ1746A | TST晶体 | 2.4576 | 32 | 30ppm/30ppm/-10C~+60C | HC49U |
| TZ1953A | TST晶体 | 3.579545 | 20 | 30ppm/30ppm/-10C~+60C | HC49US |
| TZ2527A | TST晶体 | 3.997 | 10 | 50ppm/100ppm/-40C~+125C | HC49-SMD |
| TZ0694A | TST晶体 | 4 | 20 | 20ppm/30ppm/-20C~+70C | HC49-SMD |
| TZ1467A | TST晶体 | 4 | 6pF | 20ppm/15ppm/0C~+50C | HC49-SMD |
| TZ1640A | TST晶体 | 4 | 20 | 20ppm/30ppm/-40C~+85C | HC49-SMD |
| TZ2501A | TST晶体 | 4 | 12 | 50ppm/50ppm/-20C~+70C | HC49US |
| TZ2560A | TST晶体 | 4.9152 | 18 | 30ppm/50ppm/-20C~+70C | HC49-SMD |
| TZ2732A | TST晶体 | 4.096 | 18 | 20ppm/20ppm/-40C~+85C | HC49-SMD |
| TZ2758A | TST晶体 | 4 | 12 | 10ppm/30ppm/-20C~+85C | HC49-SMD |
| TZ2759A | TST晶体 | 4.194304 | 12 | 10ppm/30ppm/-20C~+85C | HC49-SMD |
| TZ3138B | TST晶体 | 4 | 14 | 20ppm/30ppm/-40C~+85C | HC49-SMD |
| TZ3563B | TST晶体 | 4 | 22 | 15ppm/25ppm/-40C~+85C | HC49-SMD |
| TZ0695A | TST晶体 | 5 | 20 | 20ppm/30ppm/-20C~+70C | HC49-SMD |
| TZ0195A | TST晶体 | 6 | 12 pF | 50ppm/20ppm/-20C~+70C | 7.0x5.0x1.1 |
| TZ0202A | TST晶体 | 6.78 | 20 pF | 20ppm/20ppm/-20C~+70C | 7.0x5.0x1.1 |
| TZ0203A | TST晶体 | 6.7836 | 20 pF | 20ppm/20ppm/-20C~+70C | 7.0x5.0x1.1 |
| TZ1303A | TST晶体 | 6 | 20 | 20ppm/20ppm/-20~+70C | HC49-SMD |
