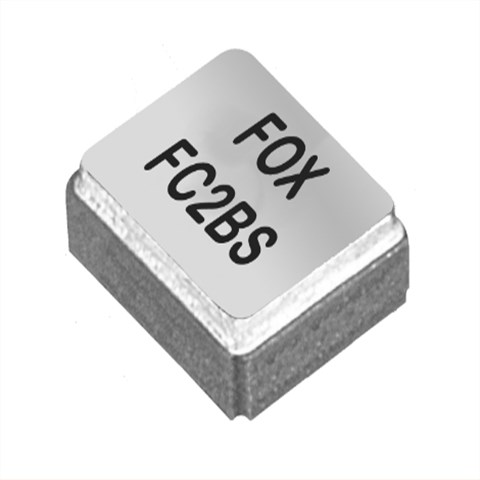

FC2BSBBMM16.0-T1路由器晶振,FC2BS小体积晶振,FOX美国晶振,石英晶体，2520晶振，美国FOX晶振，四脚晶振，进口晶振，小型晶振，低成本晶振，移动网络晶振，无源晶振，智能手表晶振，环保晶振，微型晶振，SMD晶振，无人机晶振，高精度晶振.无源晶振，低损耗晶振，环保无铅晶振，超小型晶振。福克斯晶振，FC2BS晶振，FC2BSBBMM16.0-T1晶振，特点:公差低至10ppm，稳定性低至10ppm，温度范围宽至-40C至+85C。
FC2BA无源晶振,FOX低损耗晶振,FC2BAEBEI12.0-T1无人机晶振

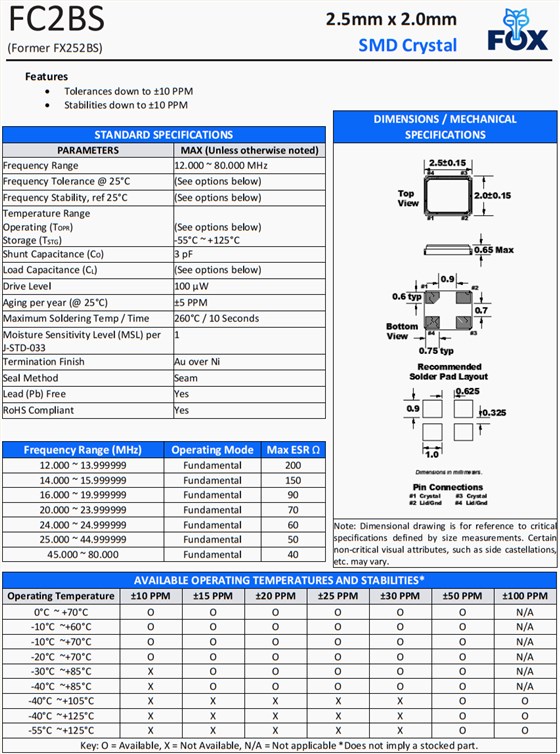

参数
MAX (Unless otherwise noted)
频率
12.000 ~ 80.000 MHz
频率容差
(See options below)
频率稳定度
(See options below)
分流电容
3 pF
负载电容
(See options below)
驱动电平
100 µW
老化
±5 PPM
最大焊接温度/时间
260°C / 10 Seconds
温度敏感度
1
终止完成
Au over Ni
密封方法
Seam
无铅
Yes
符合RoHS
Yes
FC2BA无源晶振,FOX低损耗晶振,FC2BAEBEI12.0-T1无人机晶振
| 编码 | 品牌 | 型号 | 工作温度 | 频率 | 频率稳定度 | 频率容差 | 负载电容 |
| FC1BSCBEM27.12-T3 | Fox | FC1BS | -40°C ~ 85°C | 27.12 MHz | ±50ppm | ±30ppm | 10 pF |
| FC1BSCCEM16.0-T3 | Fox | FC1BS | -40°C ~ 85°C | 16 MHz | ±30ppm | ±30ppm | 10 pF |
| FC1BSHFEM32.0-T3 | Fox | FC1BS | -40°C ~ 85°C | 32 MHz | ±15ppm | ±10ppm | 10 pF |
| FC2BSBBMM16.0-T1 | Fox | FC2BS | -40°C ~ 85°C | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC2BSBBMM16.0-T3 | Fox | FC2BS | -40°C ~ 85°C | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BABBKM20.0-T3 | Fox | FC3BA | -40°C ~ 85°C | 20 MHz | ±50ppm | ±50ppm | 16 pF |
| FC3BACCGM20.0-T3 | Fox | FC3BA | -40°C ~ 85°C | 20 MHz | ±30ppm | ±30ppm | 12 pF |
| FC3BQBBDM20.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 20 MHz | ±50ppm | ±50ppm | 8 pF |
| FC3BQBBMM12.0-T1 | Fox | FC3BQ | -40°C ~ 85°C | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM12.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM24.0-T1 | Fox | FC3BQ | -40°C ~ 85°C | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM24.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM25.0-T1 | Fox | FC3BQ | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM25.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBVM25.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 7 pF |
| FC3BSBBEM26.0-T3 | Fox | FC3BS | -40°C ~ 85°C | 26 MHz | ±50ppm | ±50ppm | 10 pF |
| FC3BSBBLM25.0-T3 | Fox | FC3BS | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 18 pF |
| FC3BSBBMM25.0-T3 | Fox | FC3BS | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BSHFEM12.0-T3 | Fox | FC3BS | -40°C ~ 85°C | 12 MHz | ±15ppm | ±10ppm | 10 pF |
| FC3VAEEGM50.0-T3 | Fox | FC3VA | -40°C ~ 85°C | 50 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEDM38.4-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.4 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM38.88-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.88 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM40.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 40 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM48.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 48 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEEM38.4-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.4 MHz | ±20ppm | ±20ppm | 10 pF |
| FC3VREEGM36.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 36 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.4-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.4 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.88-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.88 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM40.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 40 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM50.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 50 MHz | ±20ppm | ±20ppm | 12 pF |
| FC4SDCBGM8.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 12 pF |
| FC4SDCBMM10.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 10 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM12.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 12 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM16.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 16 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM20.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM25.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM3.6864-T1 | Fox | FC4SD | -40°C ~ 85°C | 3.6864 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM4.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 4 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM6.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 6 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM8.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDHCMM25.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 25 MHz | ±30ppm | ±10ppm | 20 pF |
| FC5AQBAAM8.0-T1 | Fox | FC5AQ | -40°C ~ 85°C | 8 MHz | ±100ppm | ±50ppm | |
| FC5AQCCMM12.0-T1 | Fox | FC5AQ | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5AQECLM25.0-T1 | Fox | FC5AQ | -40°C ~ 85°C | 25 MHz | ±30ppm | ±20ppm | 18 pF |
| FC5BAEEEM8.0-T1 | Fox | FC5BA | -40°C ~ 85°C | 8 MHz | ±20ppm | ±20ppm | 10 pF |
| FC5BAEEMM8.0-T1 | Fox | FC5BA | -40°C ~ 85°C | 8 MHz | ±20ppm | ±20ppm | 20 pF |
| FC5BQCBKM12.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 12 MHz | ±50ppm | ±30ppm | 16 pF |
| FC5BQCCMM10.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 10 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM12.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM16.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 16 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM20.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 20 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM24.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 24 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM25.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 25 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM8.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 8 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BSCBLM20.0-T1 | Fox | FC5BS | -40°C ~ 85°C | 20 MHz | ±50ppm | ±30ppm | 18 pF |
| FC5BSCCEM19.6608-T1 | Fox | FC5BS | -40°C ~ 85°C | 19.6608 MHz | ±30ppm | ±30ppm | 10 pF |
| FC5BSHFEM25.0-T1 | Fox | FC5BS | -40°C ~ 85°C | 25 MHz | ±15ppm | ±10ppm | 10 pF |
| FC7ASBAMM9.216-T1 | Fox | FC7AS | -40°C ~ 85°C | 9.216 MHz | ±100ppm | ±50ppm | 20 pF |
| FC7ASBBMM16.0-T1 | Fox | FC7AS | -40°C ~ 85°C | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC7ASBBMM9.216-T1 | Fox | FC7AS | -40°C ~ 85°C | 9.216 MHz | ±50ppm | ±50ppm | 20 pF |
| FC7ASCCGM7.6-T1 | Fox | FC7AS | -40°C ~ 85°C | 7.6 MHz | ±30ppm | ±30ppm | 12 pF |
| FC7BSBBGM25.0-T1 | Fox | FC7BS | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 12 pF |
| FC7BSCCEM6.0-T1 | Fox | FC7BS | -40°C ~ 85°C | 6 MHz | ±30ppm | ±30ppm | 10 pF |
| FC7BSCCMM6.0-T1 | Fox | FC7BS | -40°C ~ 85°C | 6 MHz | ±30ppm | ±30ppm | 20 pF |
| FC7BSCCMM7.3728-T1 | Fox | FC7BS | -40°C ~ 85°C | 7.3728 MHz | ±30ppm | ±30ppm | 20 pF |
| FC7BSCCMM8.0-T1 | Fox | FC7BS | -40°C ~ 85°C | 8 MHz | ±30ppm | ±30ppm | 20 pF |
| FC8AQCCMM3.6864-T1 | Fox | FC8AQ | -40°C ~ 85°C | 3.6864 MHz | ±30ppm | ±30ppm | 20 pF |
| FC8AQCCMM4.0-T1 | Fox | FC8AQ | -40°C ~ 85°C | 4 MHz | ±30ppm | ±30ppm | 20 pF |
| FC8AQCCMM6.0-T1 | Fox | FC8AQ | -40°C ~ 85°C | 6 MHz | ±30ppm | ±30ppm | 20 pF |
| FC9SDCBMM8.0-T1 | Fox | FC9SD | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| FK121EIWM0.032768-T5 | Fox | FK121 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 9 pF | |
| FK122EIHM0.032768-T3 | Fox | FK122 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FK124EIWM0.032768-T5 | Fox | FK124 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 9 pF | |
| FK125EIVM0.032768 | Fox | FK125 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 7 pF | |
| FK135EIHM0.032768-T3 | Fox | FK135 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FK13LEIBM0.032768-T3 | Fox | FK13L | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 6 pF | |
| FK145EIHM0.032768-T3 | Fox | FK145 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FK161EIHM0.032768-T5 | Fox | FK161 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FKFSREIBM0.032768-T3 | Fox | FKFSR | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 6 pF | |
| FKFSREIHM0.032768-T3 | Fox | FKFSR | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FKFSXEIHM0.032768-T3 | Fox | FKFSX | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FKT26EIBM0.032768 | Fox | FKT26 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 6 pF | |
| FKT38EIHM0.032768 | Fox | FKT38 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF |
