CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

CM8V-T1A是Micro瑞士微晶推出的32.768KHz通用性晶振,凭借±20PPM的频率偏差精度,为各类电子设备提供稳定的时间基准信号.完美匹配实时时钟(RTC),蓝牙模块等电路的低功耗需求.7PF的负载电容参数可有效降低电路驱动能耗,配合±20PPM的频率精度,在延长设备续航的同时避免时间偏差问题.产品通过严格的TA温度特性测试,能在复杂环境中稳定工作,且QC品质管控体系确保每批次产品性能一致性,是消费电子与工业控制领域的优选元件.

JLX-2

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

原厂型号Originalmodel：	CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC	品牌brand：	Micro(瑞士微晶)
品牌brand：	Micro(瑞士微晶)	ESR（等效串联电阻）Resistance)	-
型号名称Modelname：	CM8V-T1A	温度OperatingTemperature	-40+85
Type系列：	KHZ Crystal	脚位Termination：	2pad
频率frequency：	32.768K	封装类型PackageType：	2-SMD
FrequencyStability频率稳定度	-	高度PackageHeight：	0.6mm
frequencytolerance频率容差	±20PPm	最小包装数MPQ：	3000
Loadcapacitance负载电容	7 pF	包装Packaging：	TapeandReel

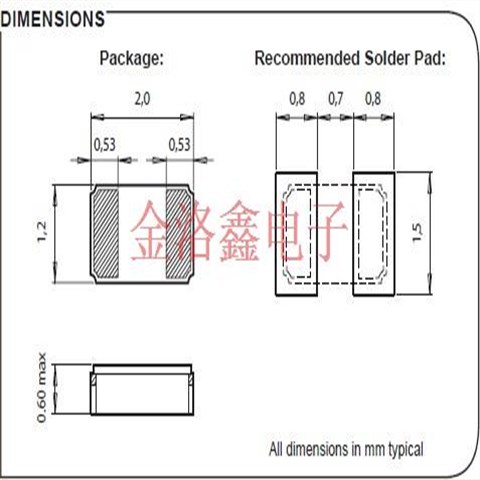

Size/Dimension尺寸	2012小型贴装晶振	安装方式MountingStyle：	SurfaceMount

JLX-3

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

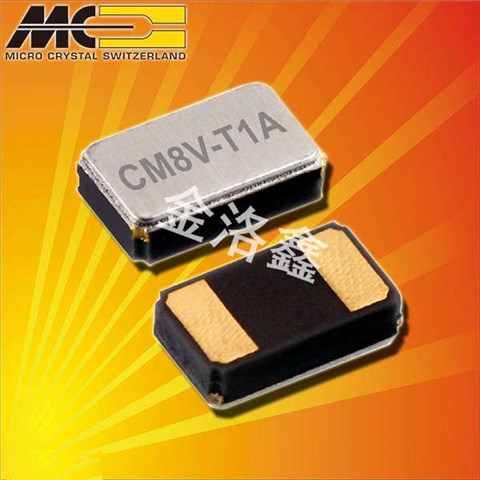

CM8V-T1A 2012

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振
