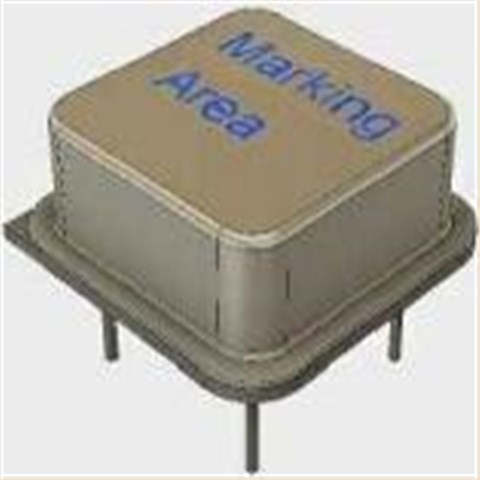

Anderson品牌,AE305晶振,正方形钟振,6G光纤通道晶振,欧美晶振,Anderson品牌,AE305进口有源晶振,正方形钟振,石英晶体振荡器,四脚插件晶振,尺寸13.2×13.2×5.5mm,抗冲击晶振,抗振动晶振,无铅环保晶振,6G光纤通道晶振,消费电子产品晶振,网络交换机晶振,服务器和存储系统晶振.
Anderson品牌,AE305晶振,正方形钟振,6G光纤通道晶振规格表
Output Waveform(Symmetrical
__squarewave
23.999 MHz
49.999 MHz
155.520 MHz

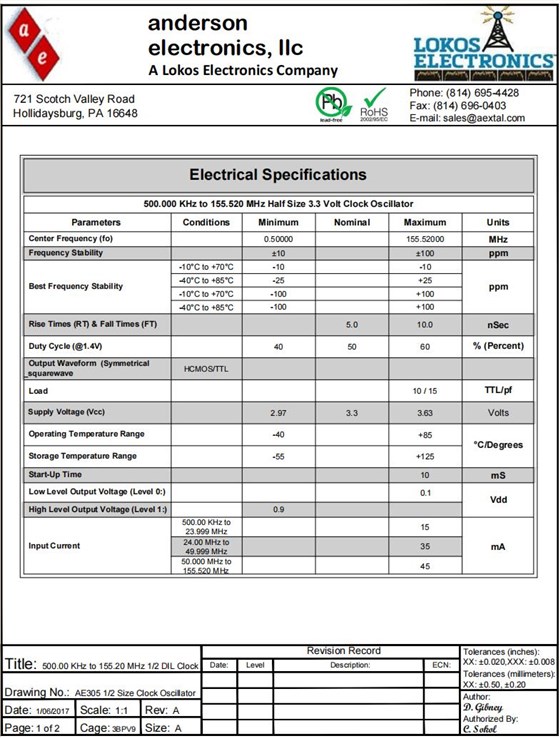

500.000 KHz to 155.520 MHz Half Size 3.3 Volt Clock Oscillator
Parameters
Conditions
Minimum
Nominal
Maximum
Units
Center Frequency (fo)
0.50000
155.52000
MHz
Frequency Stability
±10
±100
ppm
Best Frequency Stability
-10°C to +70°C
-10
-10
ppm
-40°C to +85°C
-25
+25
-10°C to +70°C
-100
+100
-40°C to +85°C
-100
+100
Rise Times (RT) & Fall Times (FT)
5.0
10.0
nSec
Duty Cycle (@1.4V)
40
50
60
% (Percent)
HCMOS/TTL
Load
10 / 15
TTL/pf
Supply Voltage (Vcc)
2.97
3.3
3.63
Volts
Operating Temperature Range
-40
+85
oc/Degrees
Storage Temperature Range
-55
+125
Start-Up Time
10
mS
Low Level Output Voltage (Level 0:)
0.1
Vdd
High Level Output Voltage (Level 1:)
0.9
Input Current
15
mA
35
45

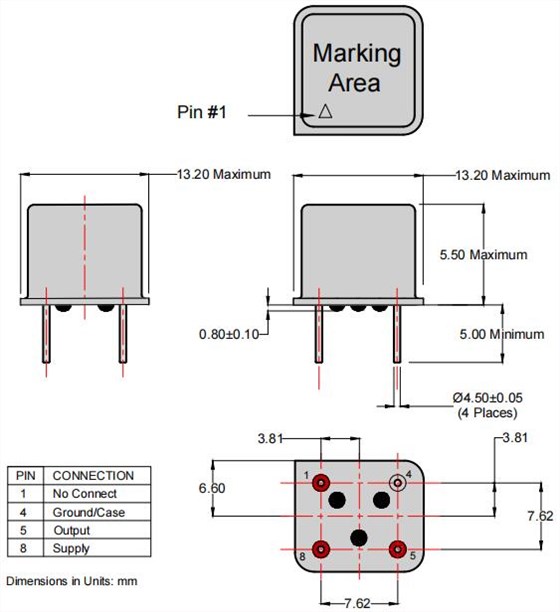

Anderson品牌,AE305晶振,正方形钟振,6G光纤通道晶振尺寸图
