时钟振荡器C3390-7.372800专用于数字视频应用

2023-05-18 16:43:35

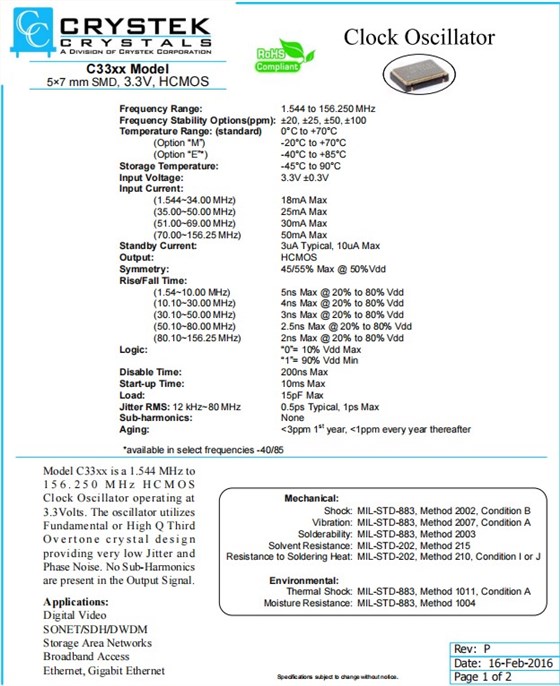

美国Crystek瑞斯克晶振C33xx系列,是一个小体积晶振尺寸7.0x5.0mm封装,四脚贴片晶振,石英晶体振荡器,有源晶振,石英晶振,频率范围1.544MHz到156.250MHz的HCMOS时钟振荡器,输入电压:3.3V±0.3V频率稳定性选项(ppm):±20,±25,±50,±100。有源晶振振荡器利用基本或高Q第三Q,提供非常低的抖动和相位噪声。输出信号中没有子谐波。应用范围:数字视频,声波仪/SDH/DWDM,存储区域网络,宽带接入,以太网,千兆以太网。时钟振荡器C3390-7.372800专用于数字视频应用

C33

进口晶振 品牌 型号 类型 频率 频率稳定度 工作温度
CE3391-8.000 Crystek晶振 C33 XO (Standard) 8MHz ±25ppm -40°C ~ 85°C
C3391-4.096 Crystek晶振 C33 XO (Standard) 4.096MHz ±25ppm 0°C ~ 70°C
C3390-1.544 Crystek晶振 C33 XO (Standard) 1.544MHz ±100ppm 0°C ~ 70°C
C3390-1.843200 Crystek晶振 C33 XO (Standard) 1.8432MHz ±100ppm 0°C ~ 70°C
C3390-10.000 Crystek晶振 C33 XO (Standard) 10MHz ±100ppm 0°C ~ 70°C
C3390-12.000 Crystek晶振 C33 XO (Standard) 12MHz ±100ppm 0°C ~ 70°C
C3390-12.288 Crystek晶振 C33 XO (Standard) 12.288MHz ±100ppm 0°C ~ 70°C
C3390-12.352 Crystek晶振 C33 XO (Standard) 12.352MHz ±100ppm 0°C ~ 70°C
C3390-14.318180 Crystek晶振 C33 XO (Standard) 14.31818MHz ±100ppm 0°C ~ 70°C
C3390-15.360 Crystek晶振 C33 XO (Standard) 15.36MHz ±100ppm 0°C ~ 70°C
C3390-16.000 Crystek晶振 C33 XO (Standard) 16MHz ±100ppm 0°C ~ 70°C
C3390-16.384 Crystek晶振 C33 XO (Standard) 16.384MHz ±100ppm 0°C ~ 70°C
C3390-18.432 Crystek晶振 C33 XO (Standard) 18.432MHz ±100ppm 0°C ~ 70°C
C3390-19.440 Crystek晶振 C33 XO (Standard) 19.44MHz ±100ppm 0°C ~ 70°C
C3390-2.048 Crystek晶振 C33 XO (Standard) 2.048MHz ±100ppm 0°C ~ 70°C
C3390-20.000 Crystek晶振 C33 XO (Standard) 20MHz ±100ppm 0°C ~ 70°C
C3390-20.480 Crystek晶振 C33 XO (Standard) 20.48MHz ±100ppm 0°C ~ 70°C
C3390-24.000 Crystek晶振 C33 XO (Standard) 24MHz ±100ppm 0°C ~ 70°C
C3390-24.576 Crystek晶振 C33 XO (Standard) 24.576MHz ±100ppm 0°C ~ 70°C
C3390-24.704 Crystek晶振 C33 XO (Standard) 24.704MHz ±100ppm 0°C ~ 70°C
C3390-25.000 Crystek晶振 C33 XO (Standard) 25MHz ±100ppm 0°C ~ 70°C
C3390-3.686400 Crystek晶振 C33 XO (Standard) 3.6864MHz ±100ppm 0°C ~ 70°C
C3390-30.000 Crystek晶振 C33 XO (Standard) 30MHz ±100ppm 0°C ~ 70°C
C3390-32.000 Crystek晶振 C33 XO (Standard) 32MHz ±100ppm 0°C ~ 70°C
C3390-32.768 Crystek晶振 C33 XO (Standard) 32.768MHz ±100ppm 0°C ~ 70°C
C3390-33.000 Crystek晶振 C33 XO (Standard) 33MHz ±100ppm 0°C ~ 70°C
C3390-33.333 Crystek晶振 C33 XO (Standard) 33.333MHz ±100ppm 0°C ~ 70°C
C3390-34.368 Crystek晶振 C33 XO (Standard) 34.368MHz ±100ppm 0°C ~ 70°C
C3390-35.000 Crystek晶振 C33 XO (Standard) 35MHz ±100ppm 0°C ~ 70°C
C3390-35.328 Crystek晶振 C33 XO (Standard) 35.328MHz ±100ppm 0°C ~ 70°C
C3390-4.000 Crystek晶振 C33 XO (Standard) 4MHz ±100ppm 0°C ~ 70°C
C3390-4.096 Crystek晶振 C33 XO (Standard) 4.096MHz ±100ppm 0°C ~ 70°C
C3390-40.000 Crystek晶振 C33 XO (Standard) 40MHz ±100ppm 0°C ~ 70°C
C3390-44.736 Crystek晶振 C33 XO (Standard) 44.736MHz ±100ppm 0°C ~ 70°C
C3390-45.000 Crystek晶振 C33 XO (Standard) 45MHz ±100ppm 0°C ~ 70°C
C3390-49.152 Crystek晶振 C33 XO (Standard) 49.152MHz ±100ppm 0°C ~ 70°C
C3390-50.000 Crystek晶振 C33 XO (Standard) 50MHz ±100ppm 0°C ~ 70°C
C3390-51.840 贴片晶振 C33 XO (Standard) 51.84MHz ±100ppm 0°C ~ 70°C
C3390-6.176 Crystek晶振 C33 XO (Standard) 6.176MHz ±100ppm 0°C ~ 70°C
C3390-7.372800 Crystek晶振 C33 XO (Standard) 7.3728MHz ±100ppm 0°C ~ 70°C
C3390-8.000 Crystek晶振 C33 XO (Standard) 8MHz ±100ppm 0°C ~ 70°C
C3390-8.064 Crystek晶振 C33 XO (Standard) 8.064MHz ±100ppm 0°C ~ 70°C
C3390-8.192 Crystek晶振 C33 XO (Standard) 8.192MHz ±100ppm 0°C ~ 70°C
C3392-1.544 Crystek晶振 C33 XO (Standard) 1.544MHz ±50ppm 0°C ~ 70°C
C3392-1.843200 Crystek晶振 C33 XO (Standard) 1.8432MHz ±50ppm 0°C ~ 70°C
C3392-10.000 Crystek晶振 C33 XO (Standard) 10MHz ±50ppm 0°C ~ 70°C
C3392-12.000 Crystek晶振 C33 XO (Standard) 12MHz ±50ppm 0°C ~ 70°C
C3392-12.288 Crystek晶振 C33 XO (Standard) 12.288MHz ±50ppm 0°C ~ 70°C
C3392-12.352 Crystek晶振 C33 XO (Standard) 12.352MHz ±50ppm 0°C ~ 70°C
C3392-14.318180 Crystek晶振 C33 XO (Standard) 14.31818MHz ±50ppm 0°C ~ 70°C
时钟振荡器C3390-7.372800专用于数字视频应用Crystek Corporation一直提供频率产品,包括石英晶振、XOs(时钟振荡器)、TCXOs(温度补偿晶体振荡器)、VCO(压控振荡器)和VCXOs(压控晶体振荡器)。Crystek运营着两个致力于频率控制的部门。Crystek Crystals致力于开发和制造使用石英谐振器的频率产品。Crystek Microwave为微波行业开发频率控制和支持产品。其它产品包括:PLL(锁相环)频率合成器、RedBox VCOs、RF同轴电缆组件、RF电缆连接器、散装RF同轴电缆、RF功率检波器、滤波器、衰减器、DC模块、无源倍频器、RFPRO(袖珍参考振荡器)、连接器放大器、VCO评估板和看见基于时钟振荡器和VCO

C33xx -1
