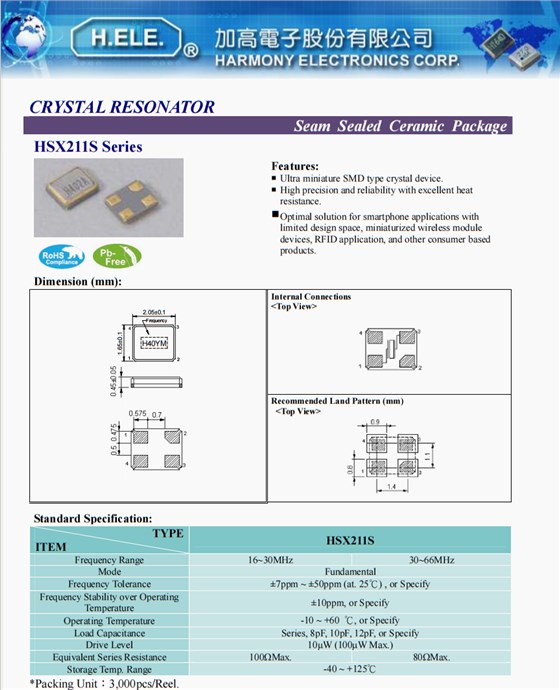

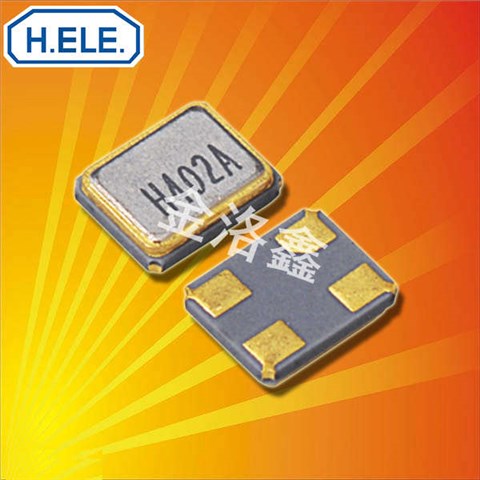

X2C032000BZ1H-HZ晶振,HELE高品质晶振,无人机信号传输晶振，台湾HELE晶振公司，石英晶振，超小型晶振，SMD晶振，低损耗晶振，高品质晶振，高精度晶振，汽车晶振，HSX211S晶振，进口晶振，耐热性晶振，X2C032000BZ1H-HZ晶振，高稳定性晶振，6G无线应用晶振，射频应用晶振，物料网应用晶振，RFID应用晶振.特点:超小型贴片型晶体器件。精度高，可靠性好，耐热性好。适用于设计空间有限的智能手机应用程序、初始化无线模块设备、RFID应用程序和其他基于消费者的产品.
X2C032000BZ1H-HZ晶振,HELE高品质晶振,无人机信号传输晶振
项目
HSX211S
频率范围
16~30MHz
工作模式
Fundamental
频率容差
±7ppm ~ ±50ppm (at. 25℃) , or Specify
温度范围内的频率稳定度
±10ppm, or Specify
工作温度
-10 ~ +60 ℃, or Specify
负载电容
Series, 8pF, 10pF, 12pF, or Specify
驱动电平
10μW (100μW Max.)
等效串联电子
100?Max.
储存温度范围
-40 ~ +125℃
X2C032000BZ1H-HZ晶振,HELE高品质晶振,无人机信号传输晶振
| 原厂编码 | 制造厂家 | 型号 | 频率 | 负载 | 频率容差 | 频率稳定性 | 工作温度 | 尺寸 |
| X2B02863ADC1H-W | HELE晶振 | HSX221SA | 28.636360MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B010000ADC1H-W | HELE晶振 | HSX221SA | 10MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B011000ADC1H-W | HELE晶振 | HSX221SA | 11MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B012000ADC1H-W | HELE晶振 | HSX221SA | 12MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B013000ADC1H-W | HELE晶振 | HSX221SA | 13MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B014000ADC1H-W | HELE晶振 | HSX221SA | 14MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B015000ADC1H-W | HELE晶振 | HSX221SA | 15MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B016000ADC1H-W | HELE晶振 | HSX221SA | 16MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B017000ADC1H-W | HELE晶振 | HSX221SA | 17MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B018000ADC1H-W | HELE晶振 | HSX221SA | 18MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B019000ADC1H-W | HELE晶振 | HSX221SA | 19MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B020000ADC1H-W | HELE晶振 | HSX221SA | 20MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B021000ADC1H-W | HELE晶振 | HSX221SA | 21MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B022000ADC1H-W | HELE晶振 | HSX221SA | 22MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B023000ADC1H-W | HELE晶振 | HSX221SA | 23MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B024000ADC1H-W | HELE晶振 | HSX221SA | 24MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B025000ADC1H-W | HELE晶振 | HSX221SA | 25MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B026000ADC1H-W | HELE晶振 | HSX221SA | 26MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B027000ADC1H-W | HELE晶振 | HSX221SA | 27MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B028000ADC1H-W | HELE晶振 | HSX221SA | 28MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B029000ADC1H-W | HELE晶振 | HSX221SA | 29MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B030000ADC1H-W | HELE晶振 | HSX221SA | 30MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B031000ADC1H-W | HELE晶振 | HSX221SA | 31MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B032000ADC1H-W | HELE晶振 | HSX221SA | 32MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B033000ADC1H-W | HELE晶振 | HSX221SA | 33MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B034000ADC1H-W | HELE晶振 | HSX221SA | 34MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B035000ADC1H-W | HELE晶振 | HSX221SA | 35MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B036000ADC1H-W | HELE晶振 | HSX221SA | 36MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B037000ADC1H-W | HELE晶振 | HSX221SA | 37MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B038000ADC1H-W | HELE晶振 | HSX221SA | 38MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B039000ADC1H-W | HELE晶振 | HSX221SA | 39MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B040000ADC1H-W | HELE晶振 | HSX221SA | 40MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B038400BA1H-U | HELE晶振 | HSX221SA | 38.4MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B016000BA1H-U | HELE晶振 | HSX221SA | 16MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B017000BA1H-U | HELE晶振 | HSX221SA | 17MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B018000BA1H-U | HELE晶振 | HSX221SA | 18MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B019000BA1H-U | HELE晶振 | HSX221SA | 19MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B020000BA1H-U | HELE晶振 | HSX221SA | 20MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B021000BA1H-U | HELE晶振 | HSX221SA | 21MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B022000BA1H-U | HELE晶振 | HSX221SA | 22MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B023000BA1H-U | HELE晶振 | HSX221SA | 23MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B024000BA1H-U | HELE晶振 | HSX221SA | 24MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B025000BA1H-U | HELE晶振 | HSX221SA | 25MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B026000BA1H-U | HELE晶振 | HSX221SA | 26MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B027000BA1H-U | HELE晶振 | HSX221SA | 27MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B028000BA1H-U | HELE晶振 | HSX221SA | 28MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B029000BA1H-U | HELE晶振 | HSX221SA | 29MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B030000BA1H-U | HELE晶振 | HSX221SA | 30MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B031000BA1H-U | HELE晶振 | HSX221SA | 31MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B032000BA1H-U | HELE晶振 | HSX221SA | 32MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B033000BA1H-U | HELE晶振 | HSX221SA | 33MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B034000BA1H-U | HELE晶振 | HSX221SA | 34MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B035000BA1H-U | HELE晶振 | HSX221SA | 35MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B036000BA1H-U | HELE晶振 | HSX221SA | 36MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B037000BA1H-U | HELE晶振 | HSX221SA | 37MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B038000BA1H-U | HELE晶振 | HSX221SA | 38MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B039000BA1H-U | HELE晶振 | HSX221SA | 39MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B040000BA1H-U | HELE晶振 | HSX221SA | 40MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B041000BA1H-U | HELE晶振 | HSX221SA | 41MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B042000BA1H-U | HELE晶振 | HSX221SA | 42MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B043000BA1H-U | HELE晶振 | HSX221SA | 43MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B044000BA1H-U | HELE晶振 | HSX221SA | 44MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B045000BA1H-U | HELE晶振 | HSX221SA | 45MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B046000BA1H-U | HELE晶振 | HSX221SA | 46MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
