X1G0059010002-SG2520VGN有源晶振-LVDS差分石英晶振

产品简介

X1G0059010002-SG2520VGN有源晶振-LVDS差分石英晶振 ,日本爱普生晶振,SG2520VGN有源晶振,X1G0059010002晶振,LVDS差分石英晶振,2520mm晶振,超小型晶振,SMD晶振,频率156.25MHz,电压1.8V,工作温度-40~85°C,频率稳定性50ppm,低抖动晶振,低相噪晶振,网络设备晶振,数据中心晶振,测试和测量设备晶振,工厂自动化晶振,高速转换器晶振.

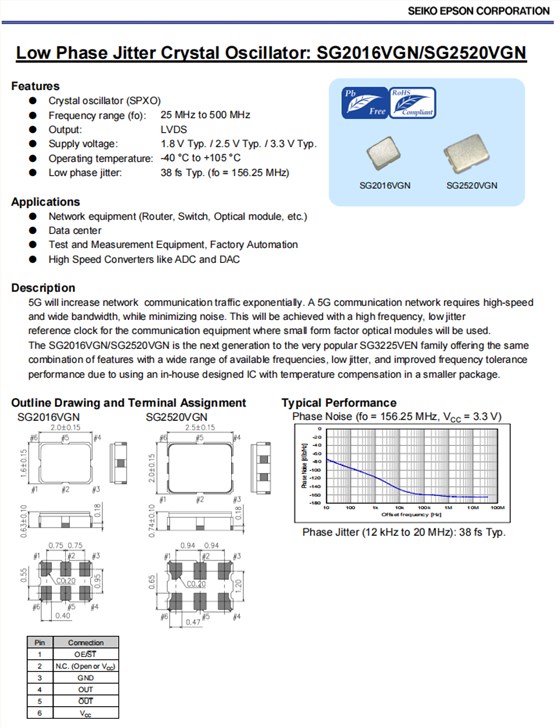

产品详情

X1G0059010002-SG2520VGN有源晶振-LVDS差分石英晶振,日本爱普生晶振,SG2520VGN有源晶振,X1G0059010002晶振,LVDS差分石英晶振,2520mm晶振,超小型晶振,SMD晶振,频率156.25MHz,电压1.8V,工作温度-40~85°C,频率稳定性50ppm,低抖动晶振,低相噪晶振,网络设备晶振,数据中心晶振,测试和测量设备晶振,工厂自动化晶振,高速转换器晶振.

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

X1G0059010002-SG2520VGN有源晶振-LVDS差分石英晶振参数表

项目	符号	规格说明	条件
额定频率	f_nom	156.25MHz	请联系我们以便获取其它可用频率的相关信息
电源电压	Vcc	1.8V	Suffix: E, Output option: A or C
储存温度	T_stg	-55℃~+125℃	裸存
工作温度	T_use	-40℃~ +85℃
频率公差（标准）	f_tol	±50ppm	+25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗	f_tem	25mA Max	Output option: A or C VCC = 1.8 V Typ.
禁用电流	I_dis	20mA Max	OE=GND
对称性	SYM	45%~55%	Atoutputscrossing point
输出电压	VOD	400MV Min 800MV Max	Output option: B Not available for VCC = 1.8 V Typ
输出电压	VOS	0.65V Min 0.85V Max	VCC= 1.8 V Typ
输出负载条件（LVDS）	L_LVDS	100Ω	Terminated to GND
输入电压	VIH	70%Vcc Min	OE terminal
输入电压	VIL	30%Vcc Max	OE terminal
上升下降时间	tr/tf	0.35ns Max	20 % - 80 % of VSW
起始时间	t str	10ms Max	t = 0 at 90 % VCC
相位抖动	tpj	70fs Max	VCC = 1.8 V Typ.156 MHz < fo ≤ 212 MHz

X1G0059010002-SG2520VGN有源晶振-LVDS差分石英晶振尺寸图

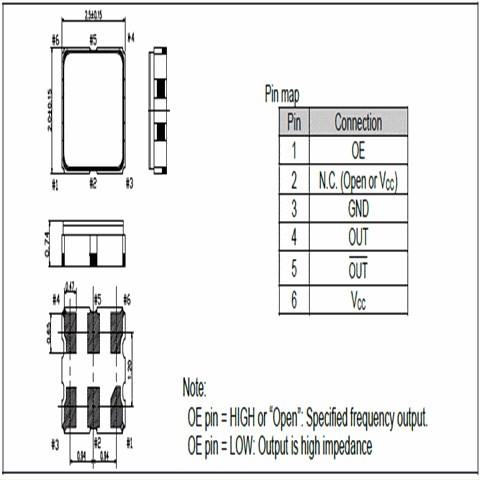

编码	型号	频率	LxWxH/尺寸	输出方式	电源电压	工作温度
X1G0058810001	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810002	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810003	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0058810005	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C
X1G0059010001	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059010002	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059010003	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010004	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G0059010006	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010007	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059010008	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059210001	SG2520EHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0059410001	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410002	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410003	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059410004	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410005	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G0059410006	SG2520VHN	155.520000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410007	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410008	SG2520VHN	174.703000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410009	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059410010	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410011	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410603	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410604	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410605	SG2520VHN	467.529297 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
