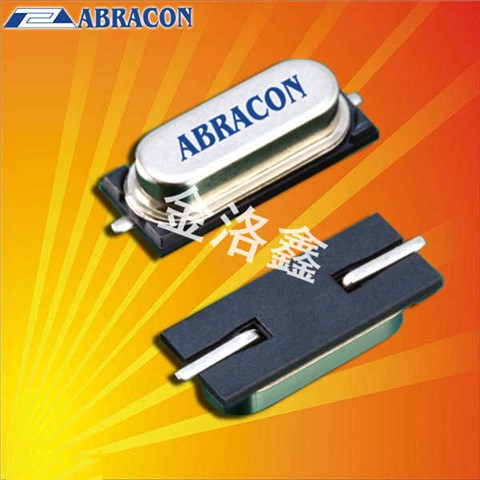

ABLS-4.9152MHZ-K4T,耐高温晶振,车载设备晶振
车载应用晶振需具备长期稳定工作的特性,ABLS-4.9152MHZ-K4T晶振采用高品质石英晶体材料与精密制造工艺,平均无故障工作时间超过200000小时,使用寿命可达15年以上,远高于车载设备的平均使用周期.其低老化率(±3ppm/年)能长期保持频率精度,减少因晶振性能衰减导致的车载设备故障,大幅降低车辆后期的维护频率与维修成本.通过AEC-Q200车载电子元器件可靠性测试标准,该标准涵盖高温高湿,温度循环,振动冲击等多项严苛测试,确保产品能满足车载环境的可靠性要求.同时,产品还通过RoHS环保认证,UL安全认证等国际合规标准,符合全球范围内车载电子行业的环保与安全规范,可广泛应用于轿车,卡车,新能源汽车等各类车载设备中,适配不同地区的车载市场需求.欢迎来电咨询0755-27837162
ABLS-4.9152MHZ-K4T,耐高温晶振,车载设备晶振
|
原厂型号Originalmodel： |
ABLS-4.9152MHZ-K4T |
品牌brand： |
|
|
型号名称Modelname： |
ABLS |

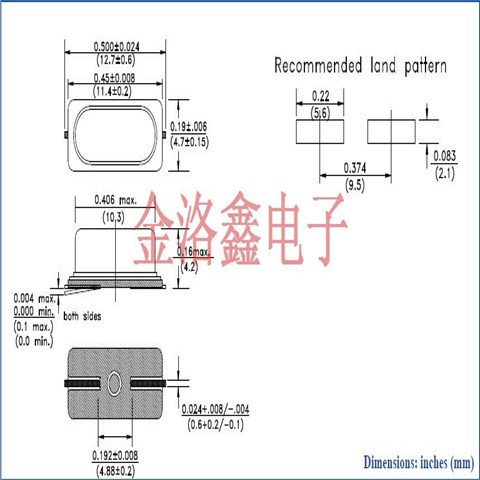

Size/Dimension尺寸 |
11.4*4.7*4.2mm |
|
Type系列： |
MHz Crystal |
高度PackageHeight： |
4.2mm |
|
频率frequency： |
|
温度OperatingTemperature |
-40+125℃ |
|
Frequency Stability频率稳定度 |
- |
脚位Termination： |
2pad |
|
frequencytolerance频率容差 |
±30ppm |
封装类型PackageType： |
49SMD |
|
Loadcapacitance负载电容 |
18PF |
最小包装数MPQ： |
|
ABLS-4.9152MHZ-K4T,耐高温晶振,车载设备晶振
