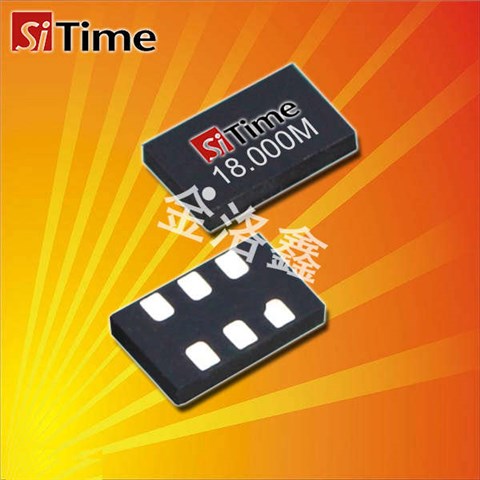

SIT9120AC-1D1-XXS156.250000Y,SiTime高频晶振,LVPECL差分输出晶振

SIT9120AC-1D1-XXS156.250000Y作为SiTime旗下高频低抖动差分晶振,以156.25MHz为标准输出频率,采用LVPECL差分电平驱动方式,具备超低相位抖动与优秀的杂散抑制能力.该器件无需外置元件即可快速起振并稳定工作,简化硬件设计,缩短产品开发周期.同时,其全硅MEMS架构带来更高的集成度,更长的使用寿命与更强的环境适应性,完美满足5G通信,高速光通信,工业控制等领域对高精度时钟源的严苛需求.

JLX-2

SIT9120AC-1D1-XXS156.250000Y,SiTime高频晶振,LVPECL差分输出晶振

原厂型号Originalmodel：	SIT9120AC-1D1-XXS156.250000Y	品牌brand：	SiTime
Manufacturer品牌	SiTime	OperatingTemperature温度	-20~70度
Series型号	SIT9120	Current-Supply(Max)	-
Type类型	XO	PackageHeight高度	0.9MM
Frequency频率	156.25MHz	Termination脚位	6-pad
输出方式Output：	LVPECL差分输出	PackageType封装类型	6-smd
Voltage-Supply电压	2.25V~3.63V	Packaging包装	TapeandReel
FrequencyStability频率稳定度	20PPM	安装方式Installation：	Surfacemount

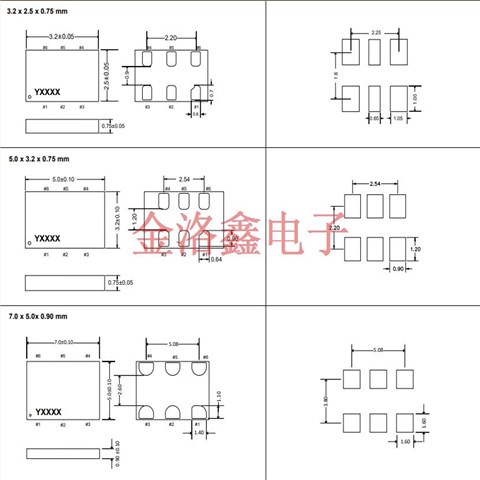

Size/Dimension尺寸	7050mm晶振	最小包装数MPQ：	1000

JLX-3

SIT9120AC-1D1-XXS156.250000Y,SiTime高频晶振,LVPECL差分输出晶振

CPPC7L-A7BR-200.0TS	Cardinal	CPP	XO	200 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7B6-75.0TS	Cardinal	CPP	XO	75 MHz	CMOS	3.3V	±100ppm
CPPC7-A7BR-162.0TS	Cardinal	CPP	XO	162 MHz	CMOS	5V	±25ppm
CPPC7L-A7BP-33.333TS	Cardinal	CPP	XO	33.333 MHz	CMOS	3.3V	±50ppm
CPPC7-BP-12.096TS	Cardinal	CPP	XO	12.096 MHz	CMOS	5V	±50ppm
CPPC7L-B6-30.0TS	Cardinal	CPP	XO	30 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7B6-8.0PD	Cardinal	CPP	XO	8 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7BR-25.1658TS	Cardinal	CPP	XO	25.1658 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BP-40.0000TS	Cardinal	CPP	XO	40 MHz	CMOS	3.3V	±50ppm
CPPC7L-B6-33.1776PD	Cardinal	CPP	XO	33.1776 MHz	CMOS	3.3V	±100ppm
CPPC7-A7BR-166.0TS	Cardinal	CPP	XO	166 MHz	CMOS	5V	±25ppm
CPPC7-BP-2.5TS	Cardinal	CPP	XO	2.5 MHz	CMOS	5V	±50ppm
CPPC7LZ-A7B6-81.1TS	Cardinal	CPP	XO	81.1 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7BP-1.0TS	Cardinal	CPP	XO	1 MHz	CMOS	3.3V	±50ppm
CPPC7L-A7BP-41.6666TS	Cardinal	CPP	XO	41.6666 MHz	CMOS	3.3V	±50ppm
CPPC7L-B6-36.864TS	Cardinal	CPP	XO	36.864 MHz	CMOS	3.3V	±100ppm
CPPC7-A5B6-66.0TS	Cardinal	CPP	XO	66 MHz	CMOS	5V	±100ppm
CPPC7-A7BP-24.0TS	Cardinal	CPP	XO	24 MHz	CMOS	5V	±50ppm
CPPC5L-A7BP-25.0TS	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±50ppm
CPPC5LZ-A7BP-33.0PD	Cardinal	CPP	XO	33 MHz	CMOS	3.3V	±50ppm
CPPC5-A7BP-27.12TS	Cardinal	CPP	XO	27.12 MHz	CMOS	5V	±50ppm
CPPC5L-A7BR-100.0TS	Cardinal	CPP	XO	100 MHz	CMOS	3.3V	±25ppm
CPPC5-A7BP-40.68TS	Cardinal	CPP	XO	40.68 MHz	CMOS	5V	±50ppm
CPPC7-A5B6-32.0TS	Cardinal	CPP	XO	32 MHz	CMOS	5V	±100ppm
CPPC7L-A7B6-25.0TS	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±100ppm
CPPC7-A7BR-32.0TS	Cardinal	CPP	XO	32 MHz	CMOS	5V	±25ppm
CPPC7L-A7BR-11.392TS	Cardinal	CPP	XO	11.392 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BP-24.0TS	Cardinal	CPP	XO	24 MHz	CMOS	3.3V	±50ppm
CPPC7-A7BP-4.352TS	Cardinal	CPP	XO	4.352 MHz	CMOS	5V	±50ppm
CPPC7L-A7BR-12.0TS	Cardinal	CPP	XO	12 MHz	CMOS	3.3V	±25ppm
CPPC7Z-A7BR-4.0TS	Cardinal	CPP	XO	4 MHz	CMOS	5V	±25ppm
CPPC7L-A7BP-25.0PD	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±50ppm
CPPC7-A7BP-50.0TS	Cardinal	CPP	XO	50 MHz	CMOS	5V	±50ppm
CPPC7-A7BR-7.5TS	Cardinal	CPP	XO	7.5 MHz	CMOS	5V	±25ppm
CPPC7L-A7BR-120.0TS	Cardinal	CPP	XO	120 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7B6-28.636TS	Cardinal	CPP	XO	28.636 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7BR-60.0TS	Cardinal	CPP	XO	60 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BP-25.0TS	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±50ppm
CPPC7-A7BR-134.0TS	Cardinal	CPP	XO	134 MHz	CMOS	5V	±25ppm
CPPC7L-A7BR-127.6TS	Cardinal	CPP	XO	127.6 MHz	CMOS	3.3V	±25ppm
CPPC7-B6-12.0TS	Cardinal	CPP	XO	12 MHz	CMOS	5V	±100ppm
CPPC7L-A7BR-66.666TS	Cardinal	CPP	XO	66.666 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7B6-3.6864TS	Cardinal	CPP	XO	3.6864 MHz	CMOS	3.3V	±100ppm
CPPC7-A7BR-14.7456TS	Cardinal	CPP	XO	14.7456 MHz	CMOS	5V	±25ppm
CPPC7-B6-14.7456TS	Cardinal	CPP	XO	14.7456 MHz	CMOS	5V	±100ppm
CPPC7L-A7B6-32.0TS	Cardinal	CPP	XO	32 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7BR-144.0TS	Cardinal	CPP	XO	144 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BP-29.4912TS	Cardinal	CPP	XO	29.4912 MHz	CMOS	3.3V	±50ppm
CPPC7-A7BR-140.0TS	Cardinal	CPP	XO	140 MHz	CMOS	5V	±25ppm
CPPC7-A7BR-200.0TS	Cardinal	CPP	XO	200 MHz	CMOS	5V	±25ppm
CPPC7L-A5BP-60.0TS	Cardinal	CPP	XO	60 MHz	CMOS	3.3V	±50ppm
CPPC7L-A5BP-62.5TS	Cardinal	CPP	XO	62.5 MHz	CMOS	3.3V	±50ppm
CPPC7L-A7BP-125.0TS	Cardinal	CPP	XO	125 MHz	CMOS	3.3V	±50ppm
CPPC7L-A5BP-66.0TS	Cardinal	CPP	XO	66 MHz	CMOS	3.3V	±50ppm
CPPC7L-A5BR-16.896TS	Cardinal	CPP	XO	16.896 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BR-33.3333TS	Cardinal	CPP	XO	33.3333 MHz	CMOS	3.3V	±25ppm
CPPC7L-A5BR-24.4196TS	Cardinal	CPP	XO	24.4196 MHz	CMOS	3.3V	±25ppm
CPPC7-A7BR-210.0TS	Cardinal	CPP	XO	210 MHz	CMOS	5V	±25ppm
CPPC7L-A5BR-24.6945TS	Cardinal	CPP	XO	24.6945 MHz	CMOS	3.3V	±25ppm
CPPC7L-A5BR-25.0TS	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±25ppm
